Description

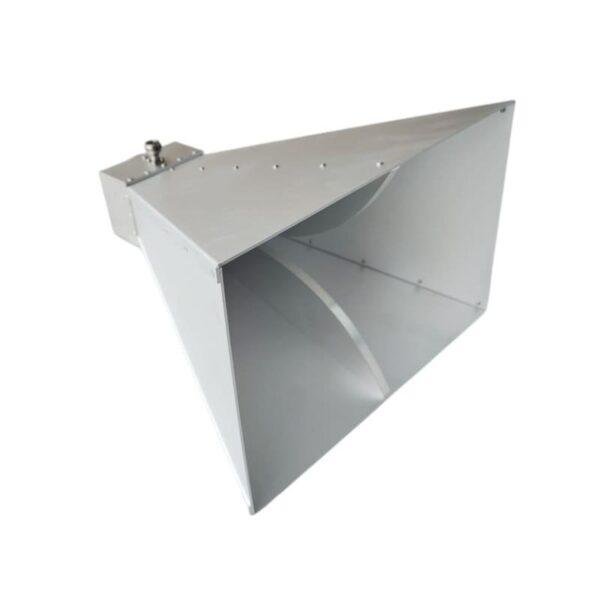

Broadband horn antennas utilize a double-ridged waveguide design to extend the operating frequency range far beyond the limits of a standard rectangular horn. This allows a single antenna to capture signals for 5G (Sub-6), Wi-Fi (2.4/5 GHz), and high-frequency radar systems. The internal ridges provide the necessary impedance matching to maintain a stable radiation pattern and a constant gain of approximately 10dBi throughout the 18:1 frequency ratio.
Crafted from precision-machined aluminum, these units are built for laboratory accuracy. They typically use a precision N-Type Female or SMA connector and are designed for mounting on non-conductive tripods to ensure that nearby metal doesn’t interfere with the highly directional beam pattern.
Key Technical Advantages
-
Extreme Bandwidth Coverage: Replaces up to five standard waveguide horns, covering 1 GHz to 18 GHz in a single unit.
-
High Directivity: Concentrates RF energy into a focused beam, essential for radiated immunity testing and signal direction finding.
-
Stable Antenna Factor: Provides predictable and repeatable measurements, which is critical for international compliance standards.
-
Rugged Construction: Anodized aluminum housing offers high durability and protection against environmental degradation.
-
High Power Capacity: Can handle significant input power, making it suitable for high-field-strength generation in EMC labs.
Key Features
-
Frequency Range: 1 GHz – 18 GHz.
-
Gain: 10 dBi (Nominal).
-
Connector Type: N-Type Female (50 Ohm).
-
Material: Precision Anodized Aluminum.
-
Application: 5G/LTE Testing, SATCOM, and EMI Compliance.
Technical Summary
| Parameter | Specification (Typical) |
| Impedance | 50 Ohm |
| Frequency Range | 1 GHz – 18 GHz |
| VSWR | ≤ 1.5:1 (over most of the band) |
| Max Power (CW) | 300 Watts |
| Polarization | Linear |
| Dimensions | ~240mm x 160mm x 140mm |
