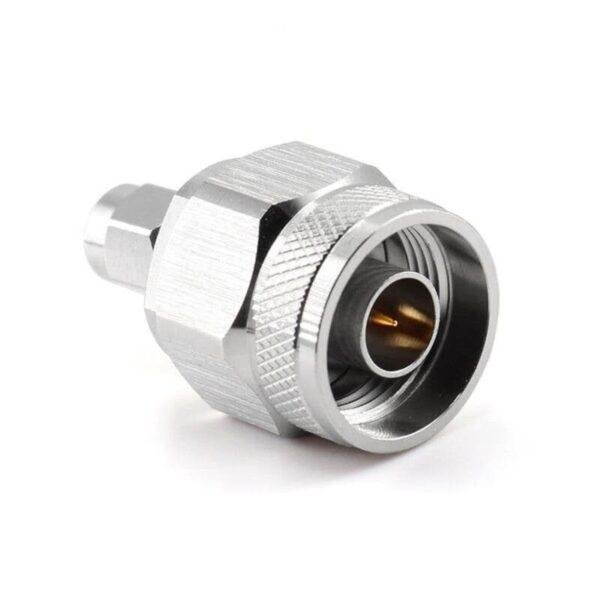

Serving as the high-precision interface between disparate connector standards, these Between Series Adaptors enable seamless signal transitions across complex 5G and microwave networks. These specialized components are deployed at the critical junction where different transmission line architectures meet—such as connecting an SMA-based internal module to an N-Type external feeder—ensuring the cleanest possible signal environment by providing a mathematically optimized impedance transition that prevents destructive signal reflections.
Key features include a broad operational frequency range supporting DC to 18 GHz (with precision variants extending further), a standard 50 Ohm impedance, and exceptional VSWR performance (typically ≤ 1.15:1). Engineered for carrier-grade reliability, they are constructed with high-durability materials like passivated stainless steel or tri-metal plated brass to maintain low Passive Intermodulation (PIM) levels in multi-carrier environments. Built with precision-machined mechanical interfaces—allowing for various combinations of N-Type, SMA, 4.3-10, BNC, and TNC—these rugged adaptors provide a secure, low-loss solution for 5G site upgrades, laboratory test benches, and aerospace communication links where mechanical versatility and electrical phase stability are paramount.
