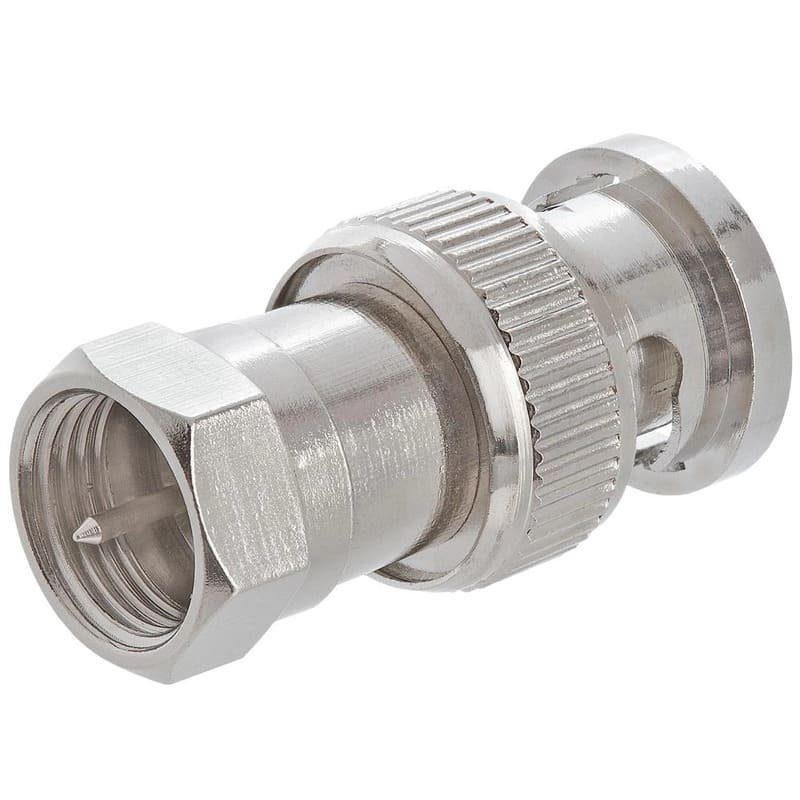

BNC Male to F Male Adapter

Description

The BNC Male to F Male Adapter is a versatile “between-series” RF component designed to provide a reliable transition between two distinct coupling styles. It features a BNC Plug (Male) on one side, utilizing the classic bayonet-style quick-lock mechanism, and an F-Type Plug (Male) on the other, featuring a standard threaded coupling nut and center pin.

This adapter is essential for security technicians and broadcast engineers who need to connect F-Type-terminated residential or commercial cabling to BNC-equipped DVRs, monitors, or signal processors. While F-Type connectors are traditionally 75 Ohm, this adapter is precision-machined to facilitate signal flow with minimal reflection in mixed-impedance environments. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) or high-density dielectric insulation, it ensures stable signal integrity for video and low-frequency RF applications. Its rugged design is built to withstand frequent mating cycles in both field installations and equipment racks.

Key Technical Advantages

• Seamless Interface Transition: Provides a direct, low-loss conversion between BNC and F-Type standards without the need for custom cable splicing.

• Rapid Bayonet Coupling: The BNC male side allows for instantaneous connection and disconnection from female jacks, ideal for testing and mobile setups.

• Secure Threaded Attachment: The F-Type male side features a standard threaded nut, ensuring a stable and vibration-proof connection to splitters or wall plates.

• Superior Mechanical Strength: The solid brass construction provides a durable housing that maintains its physical integrity under high-use conditions.

• Broad Application Versatility: Perfectly suited for adapting consumer-grade coaxial cables for use with professional-grade video and security hardware.

Key Features

• Double-Male Configuration: Features a BNC Plug (with pin) and an F-Type Plug (with pin) for joining two female ports or jacks.

• Universal F-Type Compatibility: Features standard 3/8-32 UNEF threads to ensure compatibility with all standard F-Type female connectors.

• High-Grade Dielectric: Provides electrical isolation and maintains consistent performance across standard video frequencies.

• Nickel-Plated Brass Body: Offers excellent corrosion resistance and a professional aesthetic for long-term indoor and outdoor use.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring reliable performance in demanding broadcast and surveillance environments.

🔹 Applications:

• RF Signal Interface between BNC and F Type Connectors
• CCTV & Video Signal System Connections
• TV & Satellite Signal Adaptation
• Antenna & RF Cable Adaptation
• RF Test & Measurement Equipment
• Telecom & Networking Equipment
• RF Coaxial Cable Assemblies
• Laboratory & Field Testing Applications
