BNC Female to TNC Male Adapter

Description

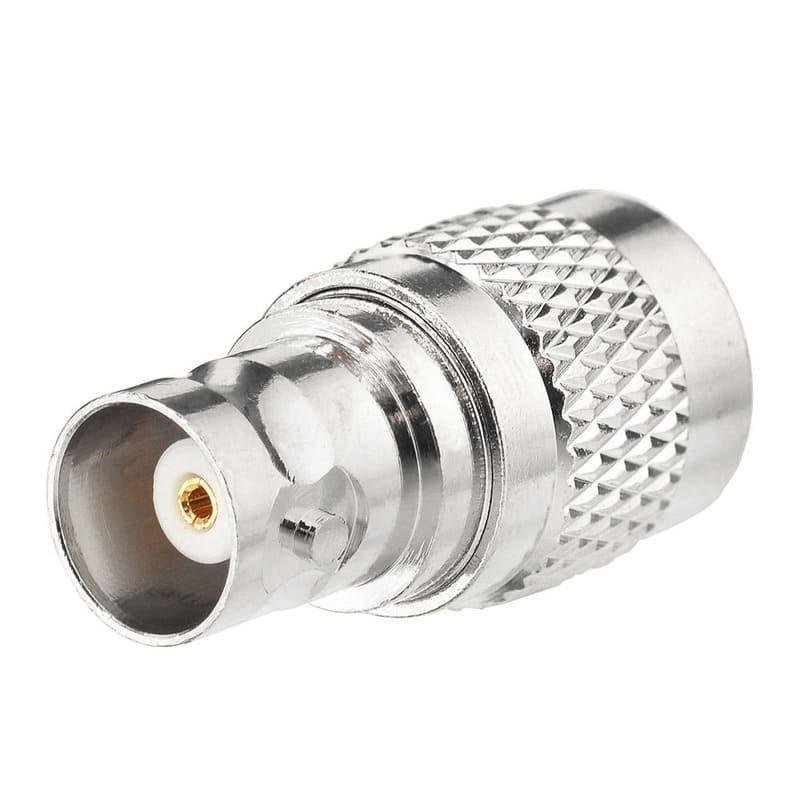

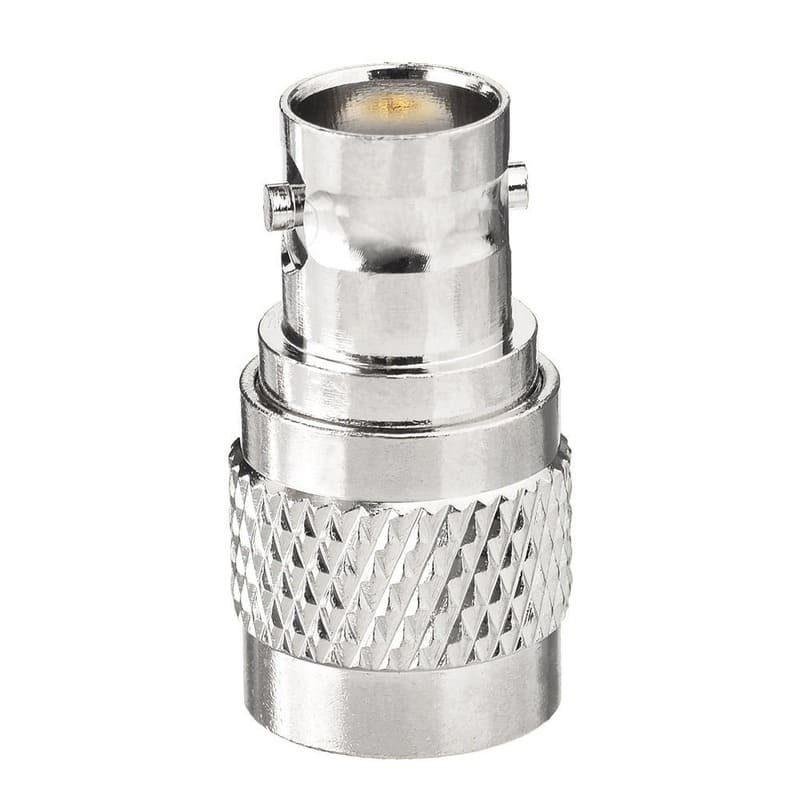

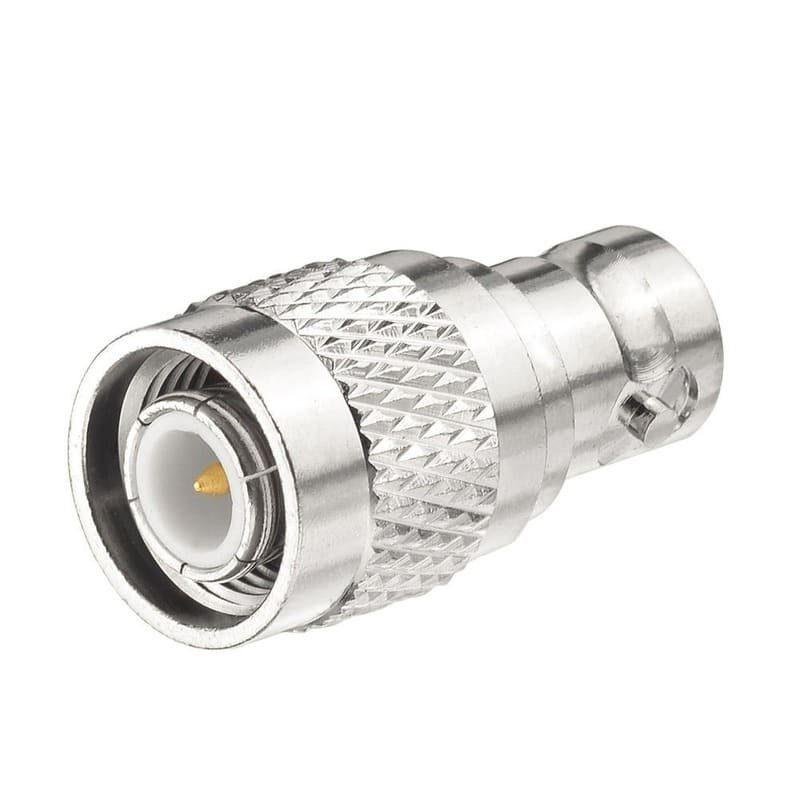

The BNC Female to TNC Male Adapter is a high-precision “between-series” RF component designed to bridge standard BNC connections with threaded TNC interfaces. It features a BNC Jack (Female) on one side, allowing for rapid bayonet-style mating, and a TNC Plug (Male) on the other, featuring a standard hexagonal coupling nut and center pin. The TNC interface is specifically designed to provide superior mechanical stability compared to BNC, making this adapter ideal for applications prone to movement or shock.

This adapter is indispensable for connecting BNC-terminated test cables or antennas to equipment featuring TNC female ports, such as ruggedized routers, GPS receivers, and military communications gear. The precision-machined design ensures a constant 50 Ohm impedance, significantly reducing signal reflections and power loss. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 4 GHz. Its robust build is optimized for long-term reliability in both laboratory and demanding field operations.

Key Technical Advantages

• Vibration-Resistant Mating: The TNC male side features a threaded coupling nut that ensures a secure, stable connection even in high-vibration environments.

• Direct Series Conversion: Provides a seamless, low-loss transition between BNC and TNC standards, eliminating the need for complex cable transitions.

• Rugged Mechanical Stability: The solid brass construction and heavy-duty threading provide a durable housing capable of withstanding industrial and field use.

• Superior RF Shielding: The full-metal assembly ensures a continuous ground path, providing excellent protection against EMI and RFI interference.

• Maximum Conductivity: High-purity plating on the center contact pin and socket ensures low contact resistance and superior corrosion resistance.

Key Features

• BNC Female to TNC Male Interface: Consists of a BNC Jack (with socket) and a TNC Plug (with pin and internal threads).

• Secure Threaded Coupling: The TNC male interface prevents accidental disconnection and maintains electrical contact under physical stress.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical impedance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in professional RF systems.

• Standard 50 Ohm Impedance: Specifically engineered to match standard communication and test instrumentation.

🔹 Applications:

• RF Signal Interface between BNC and TNC Connectors
• Antenna & RF Cable Adaptation
• Wireless Communication Systems
• RF Test & Measurement Equipment
• CCTV & Video Signal Systems
• Telecom & Networking Equipment
• RF Coaxial Cable Assemblies
• Laboratory & Field Testing Applications
