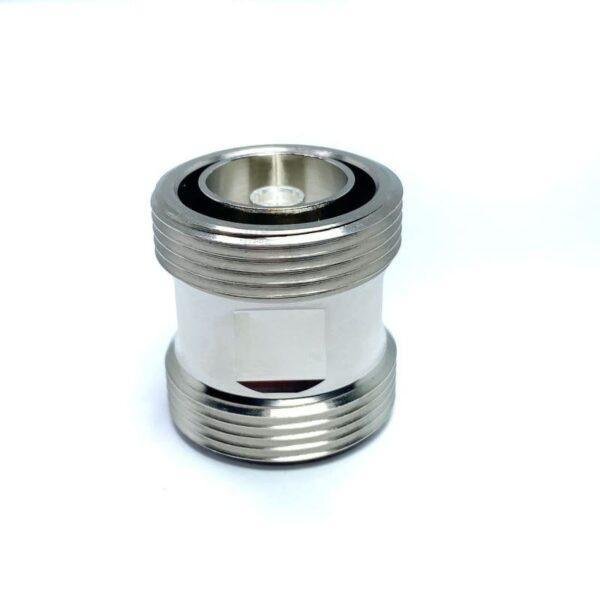

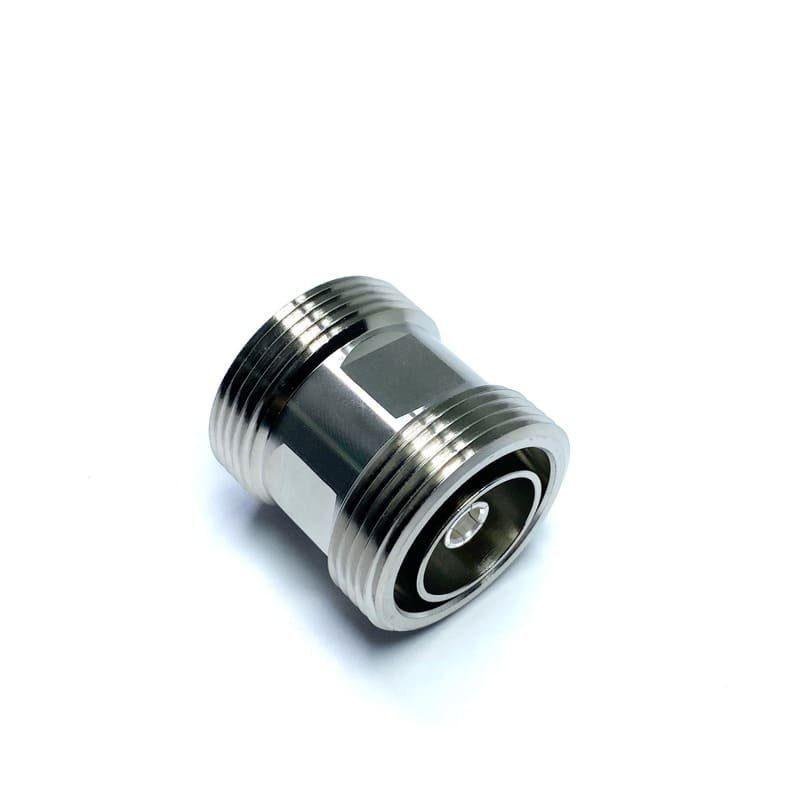

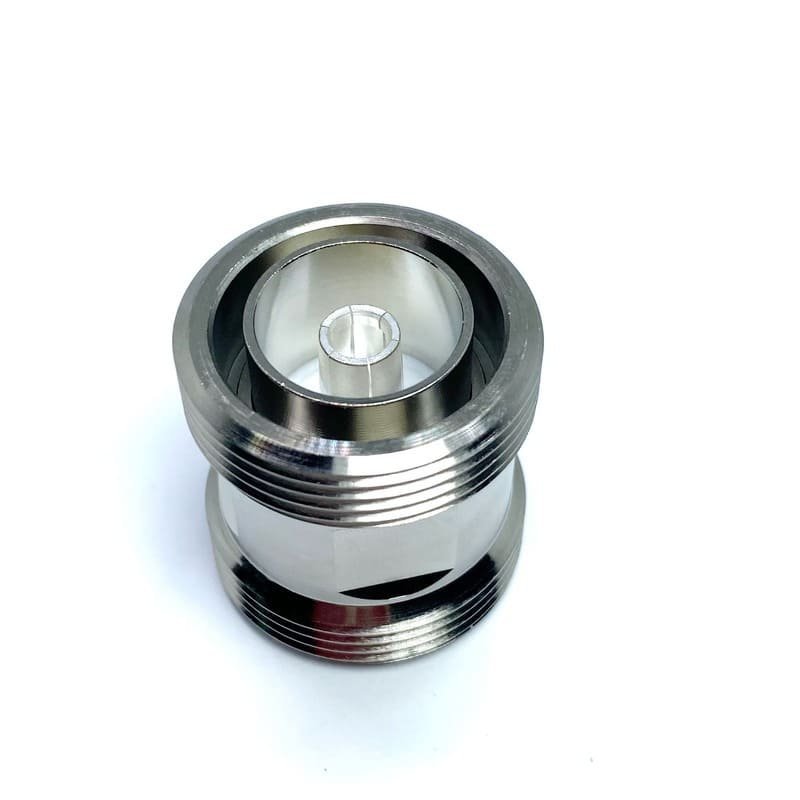

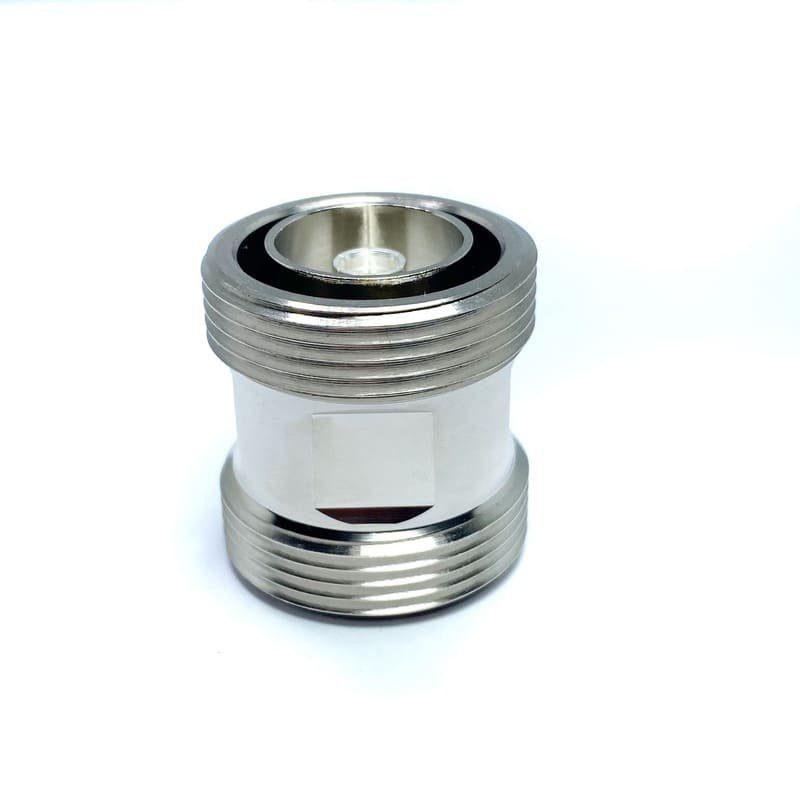

7/16 DIN Female to 7/16 DIN Female Adapter

Description

The 7/16 DIN Female to 7/16 DIN Female Adapter is a rugged “in-series” coupler designed for the demanding requirements of modern telecommunications. The 7/16 DIN interface is the industry standard for high-power applications due to its large physical size and superior electrical contact, which minimizes heat generation and signal distortion. This adapter is frequently used in Distributed Antenna Systems (DAS) and at the base of cell towers to extend heavy-gauge corrugated coaxial cables like LMR-600 or Heliax.

Constructed from Silver-plated or Tri-metal (White Bronze) plated Brass, the adapter ensures maximum conductivity and durability against environmental stressors. It features a high-grade PTFE (Teflon) dielectric to maintain a stable 50 Ohm impedance up to 7.5 GHz or 8 GHz. Because 7/16 DIN connectors are often used in outdoor settings, these adapters are typically precision-machined to provide an IP67 or IP68 rated moisture-proof seal when properly mated with male connectors.

Key Technical Advantages

• Low PIM Design: Specifically engineered to reduce Passive Intermodulation (typically ≤ -160 dBc), which is essential for maintaining clear signals in multi-carrier cellular environments.

• High Power Capacity: Capable of handling significantly more wattage than N-type or SMA interfaces, making it suitable for primary transmitter outputs.

• Weatherproof Reliability: Designed for permanent outdoor installation on towers or rooftops, offering extreme resistance to UV, moisture, and temperature fluctuations.

• Superior Mechanical Stability: The large threaded interface provides a high-torque, vibration-resistant connection that ensures long-term electrical performance.

• Broad Frequency Support: Maintains a low VSWR (typically ≤1.15) across all major cellular bands, including the latest 5G mid-band spectrum.

Key Features

• Adapter Type: Straight Barrel / In-Series Coupler.

• Interface: 2x 7/16 DIN Female (Jack).

• Impedance: 50 Ohm.

• Body Material: Silver-Plated or Tri-Metal Plated Brass.

• Contact Material: Silver-Plated Beryllium Copper or Phosphor Bronze.

• Common Applications: Macro-cell base stations, high-power broadcast transmitters, and low-PIM laboratory testing.

🔹 Applications:

• RF cable coupling in telecom systems
• Antenna feeder cable connections
• Base station installations
• RF signal distribution
• Outdoor RF networks
• Wireless infrastructure
