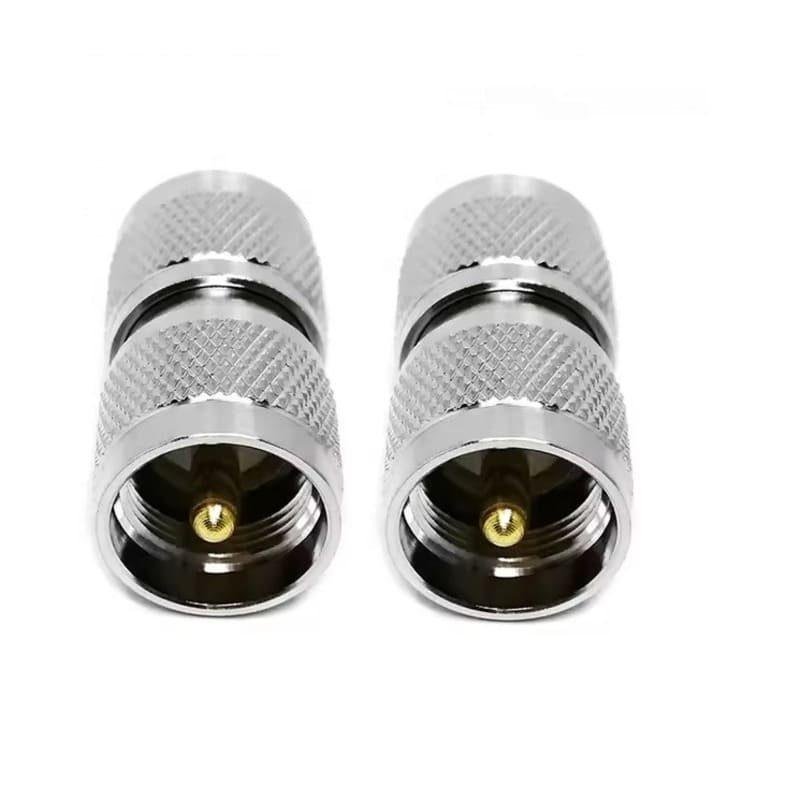

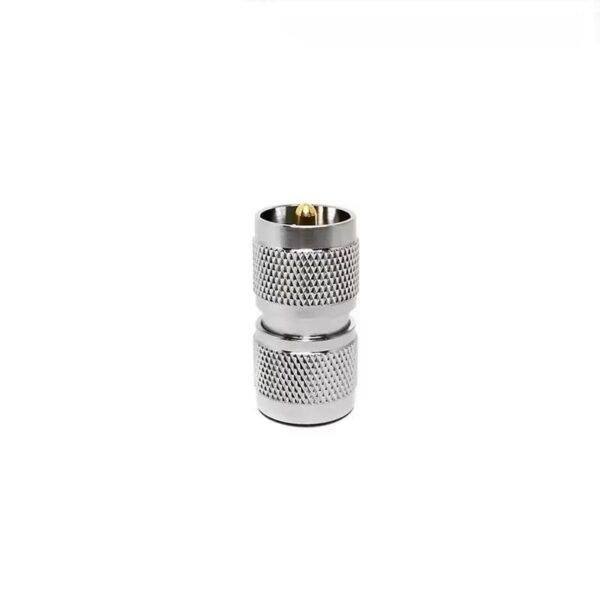

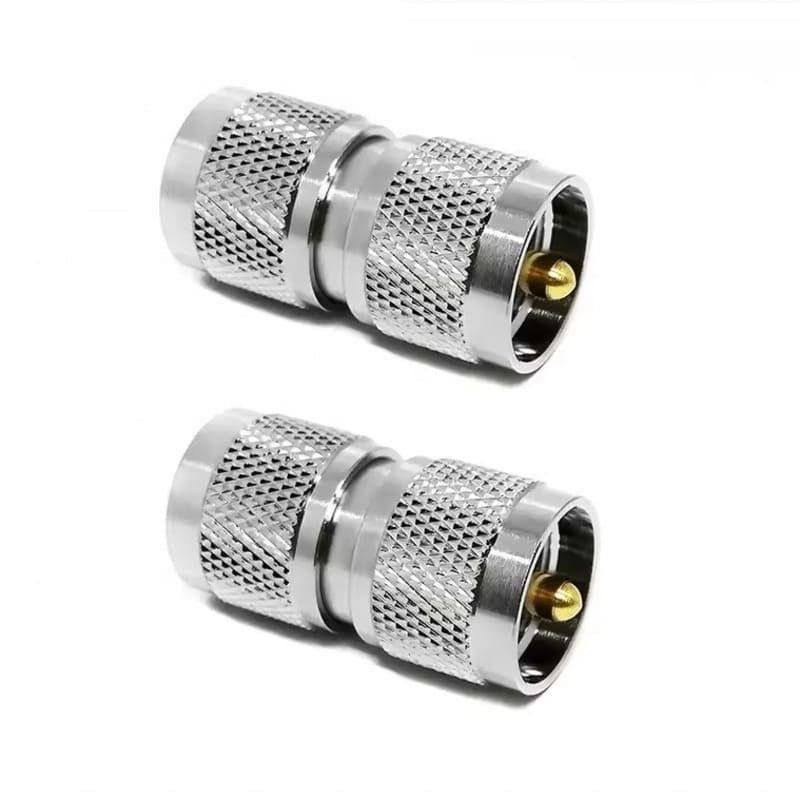

UHF Male (PL-259) to UHF Male Adapter

Description

The UHF Male to UHF Male adapter is a rugged “in-series” coupler used to bridge two female UHF interfaces. Unlike precision microwave connectors, the UHF interface (originally designed for “Ultra High Frequency” in the 1930s) features a large, easy-to-grip threaded coupling. While it is not constant impedance, it remains the most popular choice for high-power HF (High Frequency) and VHF radio setups due to its mechanical strength and ability to handle high voltage.

These adapters are typically machined from Nickel-plated Brass to resist corrosion. The internal center contacts are often Silver-plated or Gold-plated to maintain low contact resistance. Featuring PTFE (Teflon) or Bakelite dielectrics, they provide excellent insulation. They are ideal for connecting heavy-duty coaxial cables (like RG-8 or LMR-400) directly to antenna tuners, amplifiers, or wattmeters.

Key Technical Advantages

• Rugged Mechanical Link: The large threaded shells provide a very strong physical connection that can support the weight of heavy coaxial cables.

• High Power Handling: Due to its large physical size and thick center pin, it can handle significantly more power (often several kilowatts at HF) than smaller connectors like SMA or BNC.

• Easy Tool-Free Installation: The knurled outer coupling allows for secure hand-tightening, making it perfect for mobile rigs or temporary field setups.

• Universal Compatibility: Fits any standard SO-239 female jack, found on almost every piece of amateur radio and CB equipment produced in the last 80 years.

Key Features

• Adapter Type: Straight Barrel / In-Series Coupler.

• Interface: 2x UHF Male (PL-259).

• Impedance: Nominal 50 Ohm (Non-constant).

• Body Material: Nickel-Plated Brass.

• Contact Material: Silver or Gold-Plated Brass.

• Insulator: PTFE (Teflon) or Delrin.

• Common Applications: Ham Radio base stations, CB Radio antennas, Marine VHF, and RF test manifolds.

🔹 Applications:

• RF cable extension in radio systems
• Amateur radio and CB radio setups
• Antenna connections
• RF signal transmission
• Broadcast and communication systems
• Outdoor RF installations
