7/16 DIN Female to N Male Adapter

Description

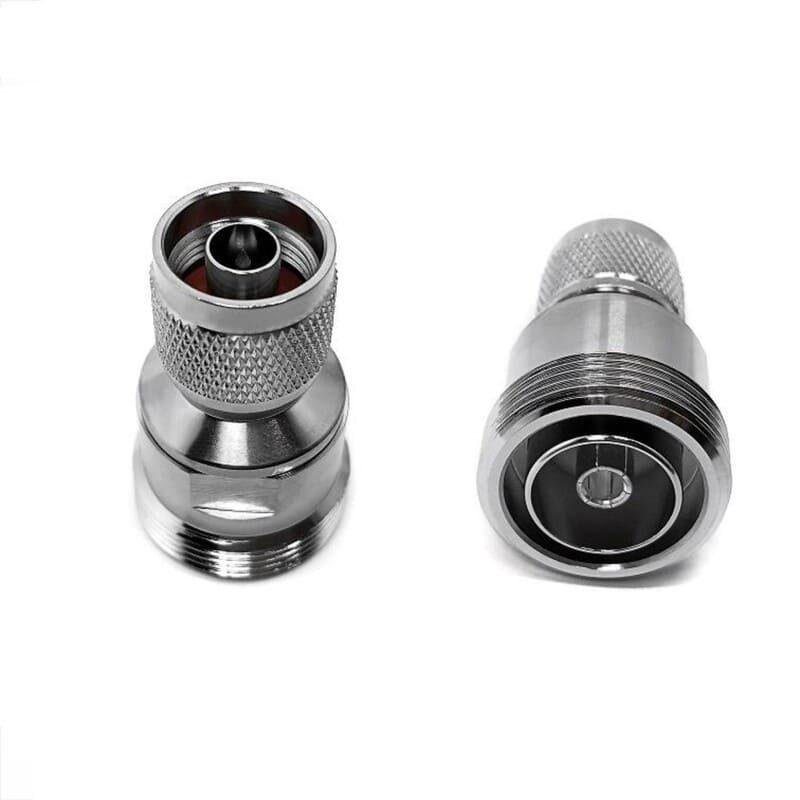

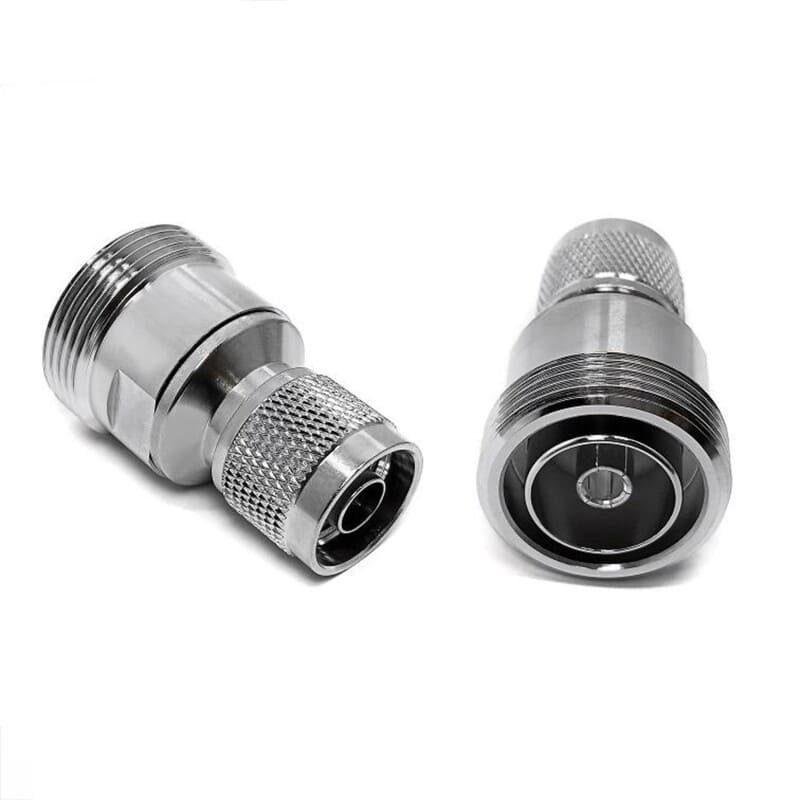

The 7/16 DIN Female to N Male Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between two prominent coupling standards. It features a 7/16 DIN Jack (Female) on one side, utilizing a large-format threaded interface optimized for superior power handling and low signal distortion, and an N-Type Plug (Male) on the other, featuring a standard threaded coupling nut and center pin.

This adapter is indispensable for telecommunications engineers and technicians who need to connect N-Type-terminated cable assemblies or test instruments to 7/16 DIN male equipment ports or cable ends. The precision-machined design ensures a constant 50 Ohm impedance, significantly reducing signal reflections and power loss across high-frequency bands. Constructed with a heavy-duty tri-metal (white bronze) or nickel-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 7.5 GHz. Its rugged construction is built to withstand high-torque installations and frequent mating cycles in demanding outdoor cellular and broadcast environments.

Key Technical Advantages

• Direct High-Power Transition: Enables a seamless, low-loss conversion between large-format 7/16 DIN systems and N-Type standards without the need for custom cable transitions.

• Secure Threaded Mating: Both interfaces utilize heavy-duty threaded mechanisms, ensuring a stable, vibration-proof connection that resists physical shock and extreme weather.

• Superior RF Shielding: The solid brass construction and high-grade plating provide a continuous ground path, ensuring excellent protection against EMI and RFI interference.

• Rugged Mechanical Stability: The durable housing is specifically designed to handle the mechanical stress associated with thick, high-power coaxial cables.

• Maximum Conductivity: High-purity silver or gold plating on the center contact pin and socket ensures ultra-low contact resistance and superior protection against corrosion.

Key Features

• 7/16 DIN Female to N Male Interface: Consists of a 7/16 DIN Jack (with socket) and an N-Type Plug (with pin and hex coupling nut).

• High-Power Capacity: The 7/16 DIN interface is engineered to support the high wattage requirements of macro cell base stations and remote radio heads (RRH).

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in professional RF systems and field testing kits.

• Standard 50 Ohm Impedance: Specifically engineered to match standard high-power communication and test instrumentation.

🔹 Applications:

• RF Signal Interface between 7/16 DIN and N Type Connectors
• Antenna & RF Cable Adaptation
• Telecom Base Stations & Infrastructure
• Wireless Communication Systems
• RF Test & Measurement Equipment
• High Power RF Transmission Systems
• RF Coaxial Cable Assemblies
• Outdoor & Industrial RF Installations
