7/16 DIN Male to N Female Adapter

Description

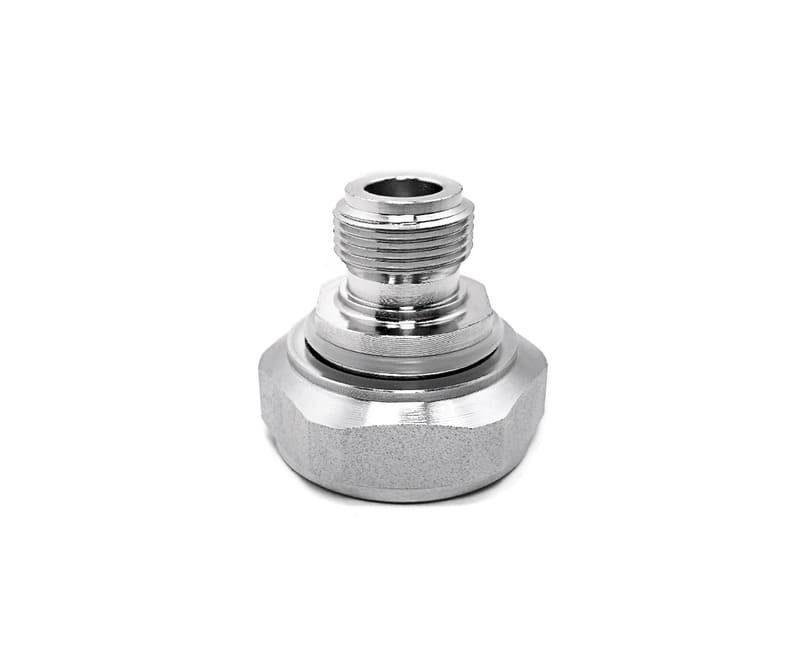

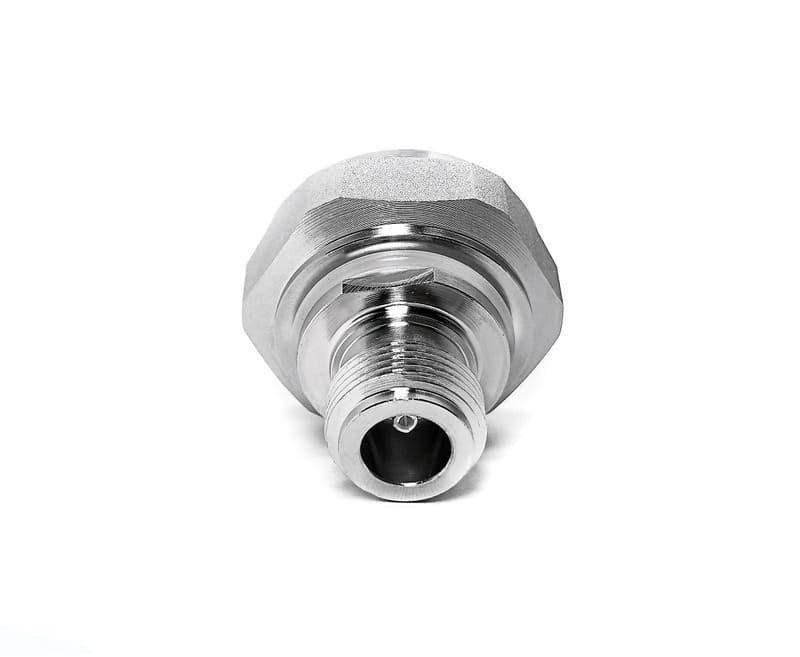

The 7/16 DIN Male to N Female Adapter is a specialized “between-series” RF component designed to provide a robust transition from large-format cellular infrastructure to the standard N-Type interface. It features a 7/16 DIN Plug (Male) on one side, utilizing a large hexagonal coupling nut for maximum environmental sealing and power handling, and an N-Type Jack (Female) on the other side, featuring a standard threaded interface designed for precision and durability.

This adapter is essential for telecommunications engineers who need to connect N-Type-terminated antennas or test cables to 7/16 DIN female ports commonly found on Remote Radio Heads (RRH), filters, and power amplifiers. The precision-machined design ensures a constant 50 Ohm impedance, significantly reducing signal reflections and power loss. Constructed with a heavy-duty tri-metal (white bronze) or nickel-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 7.5 GHz. Its rugged construction is optimized for both high-precision laboratory measurements and long-term reliability in demanding outdoor tower-top environments.

Key Technical Advantages

• Direct High-Power Transition: Enables a seamless, low-loss conversion between large-format 7/16 DIN hardware and N-Type cable standards without the need for custom-spliced assemblies.

• Rugged Mechanical Stability: The solid brass construction and heavy-duty threading provide a durable housing capable of withstanding high-torque installations and extreme weather conditions.

• Secure Threaded Mating: Both interfaces utilize threaded coupling, ensuring a stable, vibration-proof connection that resists physical shock and movement.

• Superior RF Shielding: The solid metal assembly ensures a continuous ground path, providing excellent protection against EMI and RFI interference across high-frequency bands.

• Maximum Conductivity: High-purity silver or gold plating on the center contact pin and socket ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

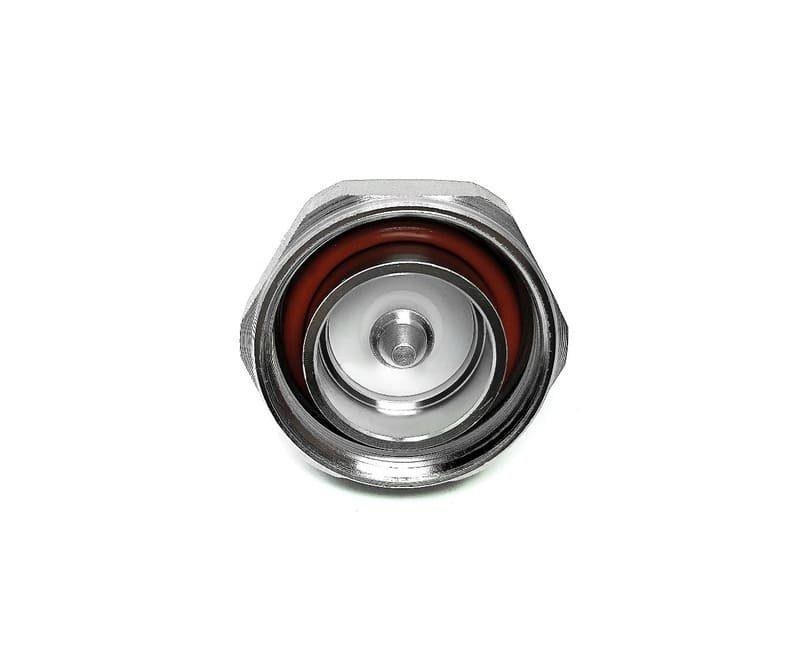

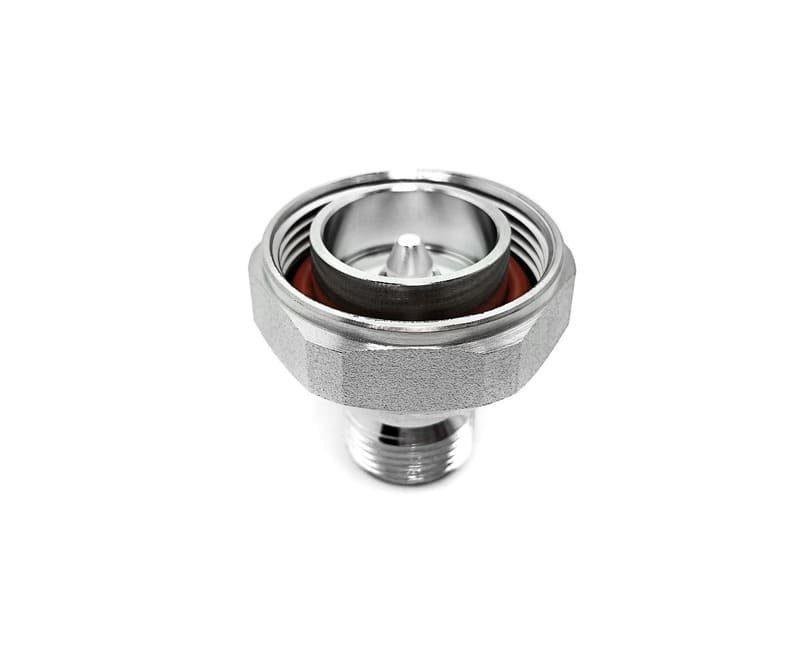

• 7/16 DIN Male to N Female Interface: Consists of a 7/16 DIN Plug (with pin and hex coupling nut) and an N-Type Jack (with socket and external threads).

• High-Torque Hex Nut: Features a standard hexagonal nut on the 7/16 side to facilitate secure tightening with standard wrenches for optimal electrical contact.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in professional cellular and broadcast environments.

• Standard 50 Ohm Impedance: Specifically engineered to match standard high-power communication and test instrumentation.

Technical Summary
