Description

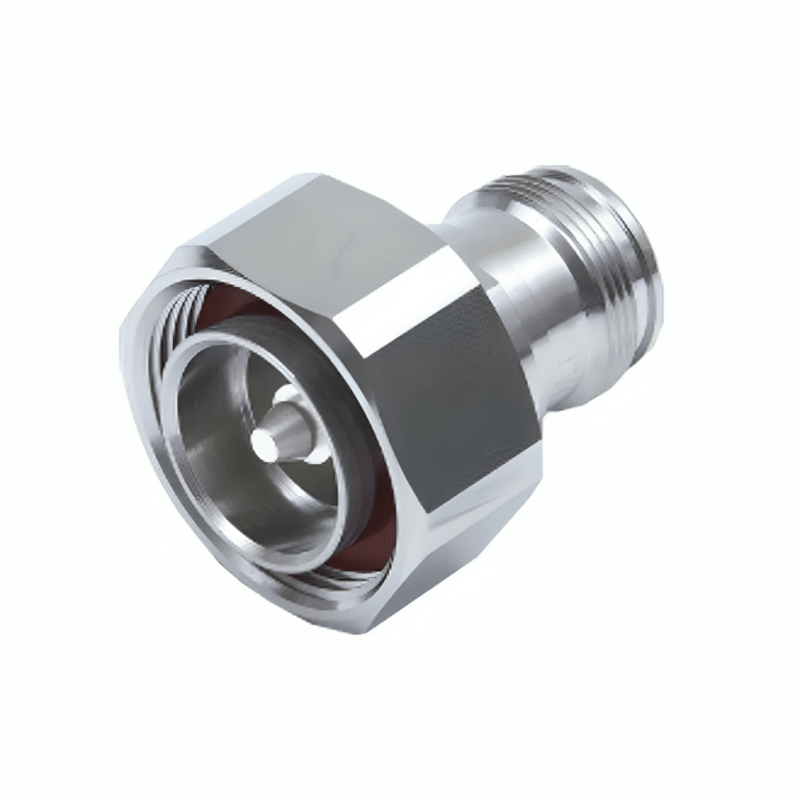

The 7/16 DIN Male to Mini DIN (4.3-10) Female Adapter is a specialized between-series RF component designed to transition high-power cellular infrastructure to contemporary, compact equipment standards. It features a 7/16 DIN Plug (Male) on one side, utilizing a large-format threaded coupling nut for maximum power handling and weather resistance, and a 4.3-10 Jack (Female) on the other, representing the “Mini DIN” standard known for its superior PIM performance and space-saving design.
This adapter is critical for telecommunications engineers upgrading legacy base station equipment or interfacing traditional high-power antenna lines with 4.3-10-equipped remote radio heads (RRH) and signal boosters. The precision-machined design ensures a constant 50 Ohm impedance and is specifically optimized to maintain ultra-low Passive Intermodulation (PIM) levels, which is essential for modern high-speed data networks (4G LTE/5G). Constructed with a tri-metal (white bronze) or silver-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 6 GHz.
Key Technical Advantages
-
Ultra-Low PIM Performance: Specifically designed to minimize passive intermodulation, ensuring clean signal transmission in multi-carrier cellular environments.
-
High Power Handling: The 7/16 DIN interface provides the robust physical contact required to handle high wattage without overheating or signal degradation.
-
Modernized Interface Transition: Enables seamless integration between legacy 7/16 DIN infrastructure and modern 4.3-10 (Mini DIN) hardware.
-
Superior RF Shielding: The solid brass construction and tri-metal plating provide an exceptional ground path, protecting against EMI and signal leakage.
-
Industrial-Grade Weatherproofing: When properly mated, the heavy-duty threaded interfaces provide the mechanical stability needed for long-term outdoor installations.
Key Features
-
7/16 DIN Male to 4.3-10 Female Interface: Consists of a 7/16 DIN Plug (with pin and large coupling nut) and a 4.3-10 Jack (with socket and external threads).
-
Tri-Metal / White Bronze Plating: Offers superior electrical conductivity and corrosion resistance while significantly reducing PIM compared to standard nickel plating.
-
Premium PTFE Dielectric: Provides high thermal stability and maintains consistent electrical impedance across high-frequency bands.
-
Rugged Mechanical Design: Built to withstand high mating torque and extreme environmental conditions in tower-top or base station applications.
-
Precision 50 Ohm Match: Engineered for minimal insertion loss and low VSWR across the entire operating frequency range.
🔹 Applications:
• RF Signal Interface between 7/16 DIN and Mini DIN Connectors
• Antenna & RF Cable Adaptation
• Telecom Base Stations & Infrastructure
• Wireless Communication Systems
• RF Test & Measurement Equipment
• High Power RF Transmission Systems
• RF Coaxial Cable Assemblies
• Outdoor & Industrial RF Installations
