Description

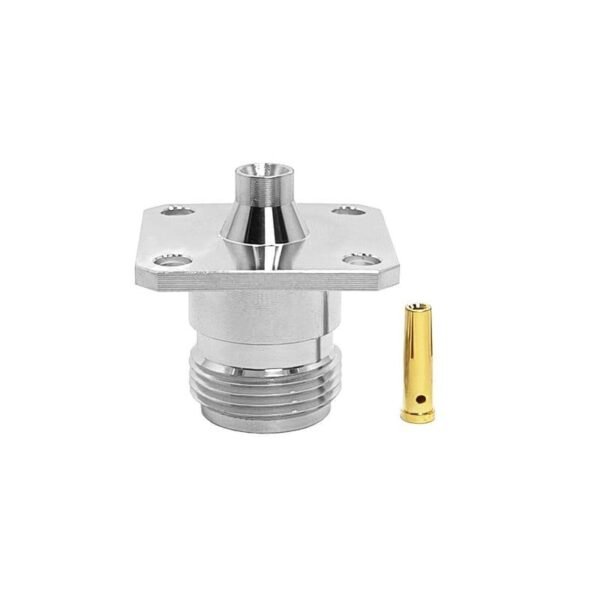

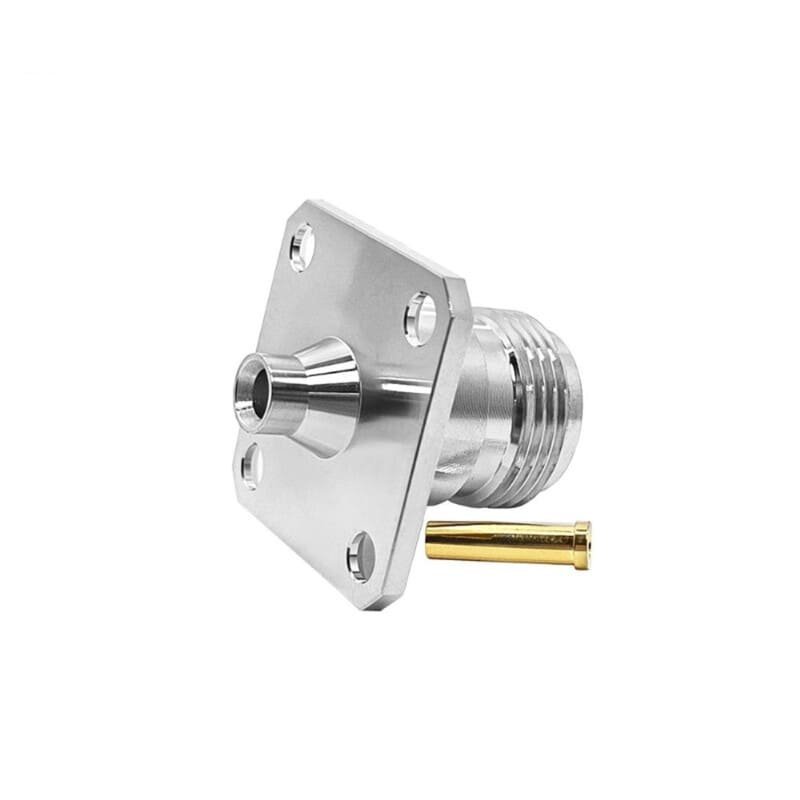

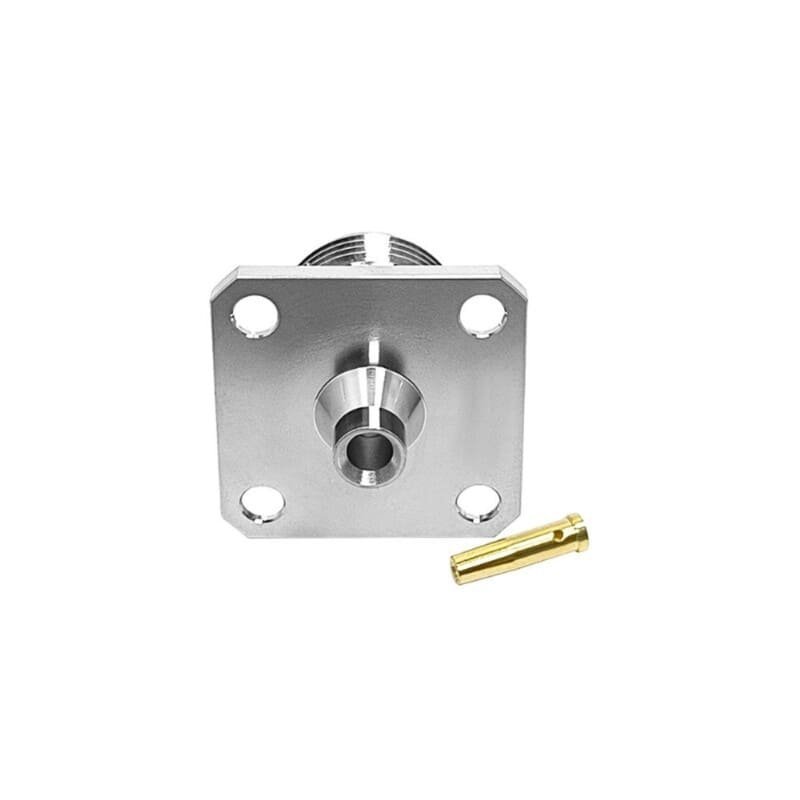

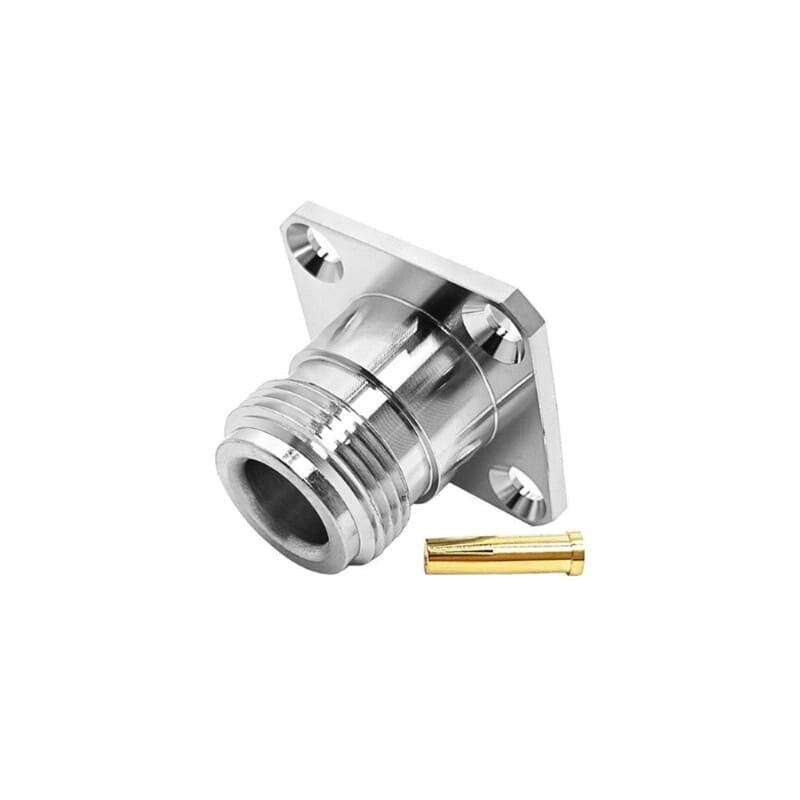

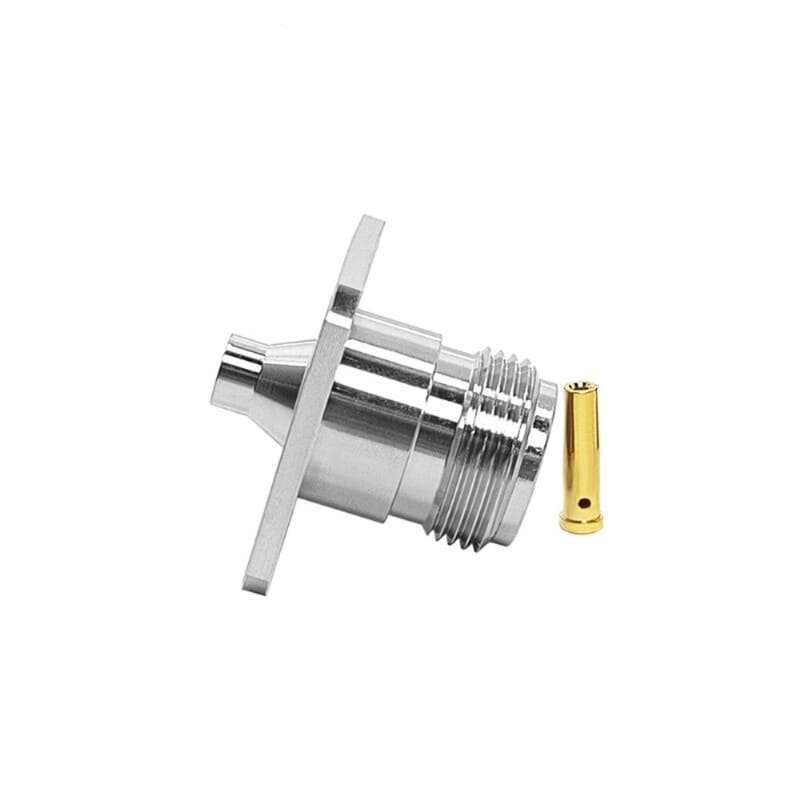

The N-Type female panel mount connector is prized for its exceptional mechanical strength and stable performance across the microwave spectrum. This variant features a 4-hole square flange (4H), providing a robust mounting solution that ensures the connector remains fixed under high torque and maintains a constant, high-integrity ground connection to the equipment chassis. It is specialized for the .141-inch cable class, specifically optimized for solid-jacket Semi-Rigid and hand-formable RG402 cables.
This connector utilizes a direct-solder termination for both the center conductor and the outer jacket. By soldering the cable’s copper or silver-plated jacket directly into the rear bore of the connector body, the assembly achieves an airtight, 360-degree electrical bond. This method is superior for maintaining maximum shielding effectiveness and ensuring the lowest possible VSWR in high-frequency applications. Manufactured with a durable tri-metal or gold-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and exceptionally low attenuation up to 18 GHz.
Key Technical Advantages
-
4-Hole Square Flange Mount: Provides superior mechanical stability and surface contact, ensuring the connector remains secure and maintains a stable ground path to the chassis.
-
Microwave Grade Shielding: The direct-solder body interface creates a continuous metallic shield, providing maximum EMI/RFI protection essential for sensitive microwave circuitry.
-
Precision .141/RG402 Match: Specifically calibrated for the 0.141-inch OD jacket, ensuring an optimized electrical transition and high mechanical rigidity for phase-sensitive applications.
-
Phase-Stable Performance: The permanent solder bond minimizes signal fluctuations and non-linearities, making it ideal for precision jumpers and internal cabinet routing.
-
Vibration-Proof Threaded Interface: The 5/8-24 threaded outer shell ensures a secure, locked mating with male connectors, resisting loosening in aerospace, mobile, or tower-top environments.
Key Features
-
Interface Type: N-Type Female (Jack) with standard 5/8-24 threaded outer shell.
-
Mounting Type: 4-Hole Square Flange (Panel Mount).
-
Termination Method: Solder (Outer Jacket) / Solder (Center Pin).
-
Cable Compatibility: Optimized for .141 Semi-Rigid, RG402, and hand-formable 0.141″ 50-Ohm coaxial cables.
-
Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.
-
Common Application: Microwave equipment test ports, satellite ground systems, RF power dividers, and high-frequency chassis links.
🔹 Applications:
- High-frequency RF panel connections
- Semi-rigid cable assemblies
- Microwave systems
- Test and measurement setups
- Precision RF circuits
- Lab applications
