Description

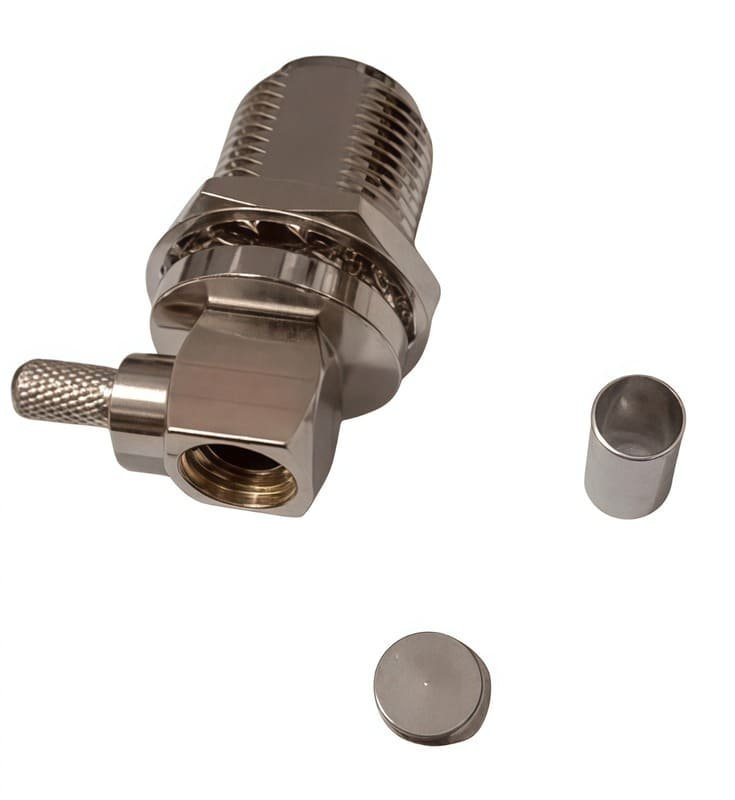

The N-Type female bulkhead right-angle connector is an essential component for secure and space-efficient RF interfacing. This variant features a Right Angle (RA) configuration, allowing for immediate cable routing parallel to the panel surface, which is critical in shallow enclosures or high-density cabinet environments. The Bulkhead (BH) mounting design, complete with a mounting nut and washer, ensures a high-integrity, fixed connection through chassis walls.
It is specialized for the 5mm (0.195″ to 0.200″) cable class, specifically optimized for high-performance LMR200 and double-shielded RG142. This connector utilizes a solder termination for the center conductor, providing a permanent, low-resistance electrical bond that is superior for maintaining signal stability and minimizing attenuation at higher frequencies. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and reliable operation up to 11 GHz.
Key Technical Advantages
-
Space-Saving Right Angle Design: The 90-degree body allows for cable installation in tight spaces where a straight connector would exceed depth limitations or cause excessive cable stress.
-
Secure Bulkhead Mounting: The threaded body and hex-nut design provide a robust, non-rotating mounting solution through enclosure walls, ensuring a stable ground connection.
-
Mid-Range Cable Match: Specifically calibrated for the 0.195″ to 0.200″ OD cable family, ensuring a precise mechanical fit and optimized electrical transition for mid-sized coaxial lines.
-
Vibration-Proof Threaded Interface: The 5/8-24 threaded outer shell ensures a secure, locked mating with male connectors, resisting loosening in industrial, mobile, or tower-top environments.
-
High-Grade Materials: Features a nickel-plated brass body and a gold-plated center contact for maximum corrosion resistance and consistent signal clarity over the life of the product.
Key Features
-
Interface Type: N-Type Female (Jack) with standard 5/8-24 threaded outer shell.
-
Mounting Type: Bulkhead (Through-Panel Mount) with Nut and Washer.
-
Orientation: Right Angle (90 Degree).
-
Termination Method: Solder (Center Pin) / Crimp or Solder (Outer Braid).
-
Cable Compatibility: Optimized for RG58, RG141, RG142, LMR195, LMR200, and equivalent 50-Ohm coaxial cables.
-
Premium Construction: Features a nickel-plated brass body and high-performance PTFE dielectric.
-
Common Application: Compact RF enclosures, cellular base stations, internal cabinet routing, and industrial telecommunications panels.
Technical Summary
| Parameter | Specification |
| Impedance | 50 Ohm (Nominal) |
| Frequency Range | DC – 11 GHz |
| Body Material | Brass (Nickel Plated) |
| Contact Material | Phosphor Bronze or Beryllium Copper (Gold Plated) |
| Dielectric | PTFE (Teflon) |
| Coupling Mechanism | Threaded (5/8-24 UNEF) |
| Operating Temp | -65°C ~ +165°C |
