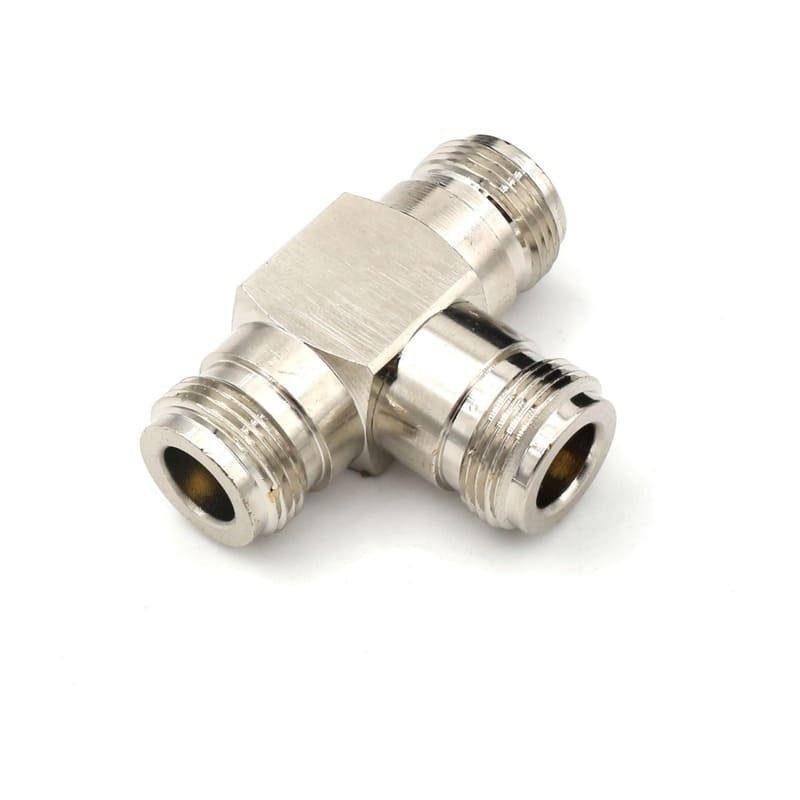

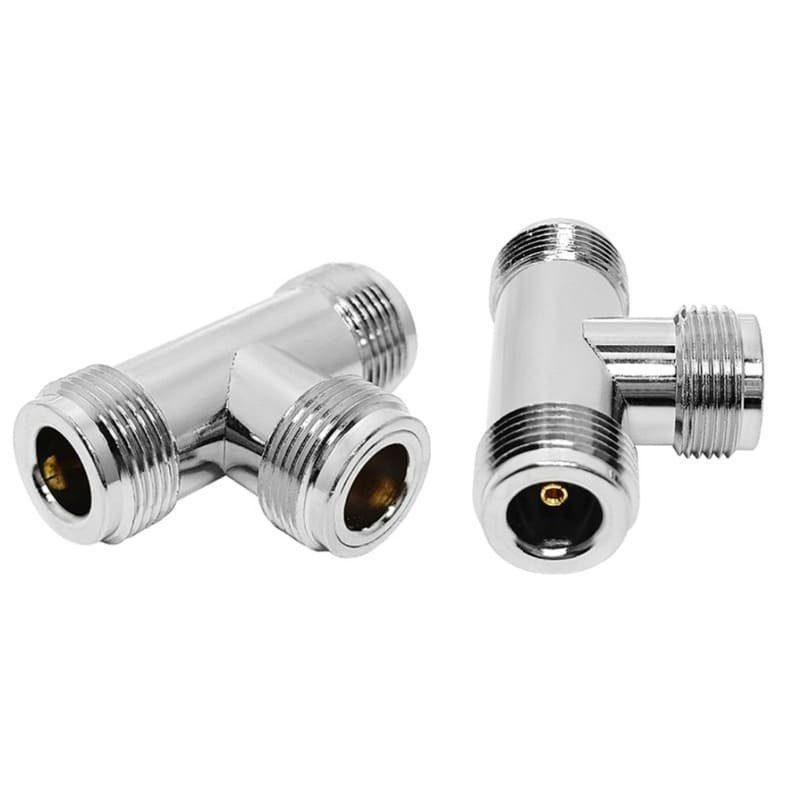

N-Type Tee-Type Adaptor (F-F-F), DC to 4 GHz

Description

The N-Type Tee-Type Adapter (Female-Female-Female) is a heavy-duty RF component designed to branch a single signal path into two, or to combine two signals into one, using three standard N-Type Female interfaces. Known for its exceptional mechanical strength and power handling capabilities, the N-Type interface is far more robust than miniature connectors. This adapter is precision-machined to maintain low insertion loss and signal integrity up to 4 GHz, making it an essential tool for 4G LTE/5G sub-6GHz testing and wireless base station maintenance.

The adapter features a Nickel-Plated or Tri-Metal Plated Brass body for superior durability and shielding, with Gold-Plated or Silver-Plated center contacts to ensure maximum signal conductivity and low contact resistance. The threaded coupling interfaces on all three ports provide a secure, vibration-resistant connection with N-Type male plugs. This specific F-F-F configuration is most commonly used as a central hub to join three N-Type male-terminated cables, allowing for clean signal distribution without the need for additional adapters.

Key Technical Advantages

• Rugged High-Power Design: Optimized for applications requiring higher power handling and greater physical durability than BNC or SMA equivalents.

• Extended Frequency Range: Precision-tuned for operation from DC to 4 GHz, providing low VSWR and consistent impedance across modern communication bands.

• Triple-Female Versatility: Facilitates the interconnection of multiple N-Type male cables, making it an ideal central junction for high-frequency signal splitting.

• Superior Environmental Protection: The threaded N-Type interface provides a secure, reliable connection that is well-suited for industrial and telecommunications environments.

• Professional Signal Fidelity: High-grade PTFE (Teflon) insulation and precision internal geometry minimize signal reflections and phase distortion.

Key Features

• Adapter Type: Tee-Type (T-Shape).

• Interface: 3x N-Type Female (Jack).

• Impedance: 50 Ohm.

• Body Material: Brass (Nickel or Tri-Metal Plated).

• Contact Material: Phosphor Bronze or Beryllium Copper (Gold Plated).

• Insulator: PTFE (Teflon).

• Common Applications: Antenna signal distribution, cellular base station testing, high-power RF amplifiers, and wireless network infrastructure.
