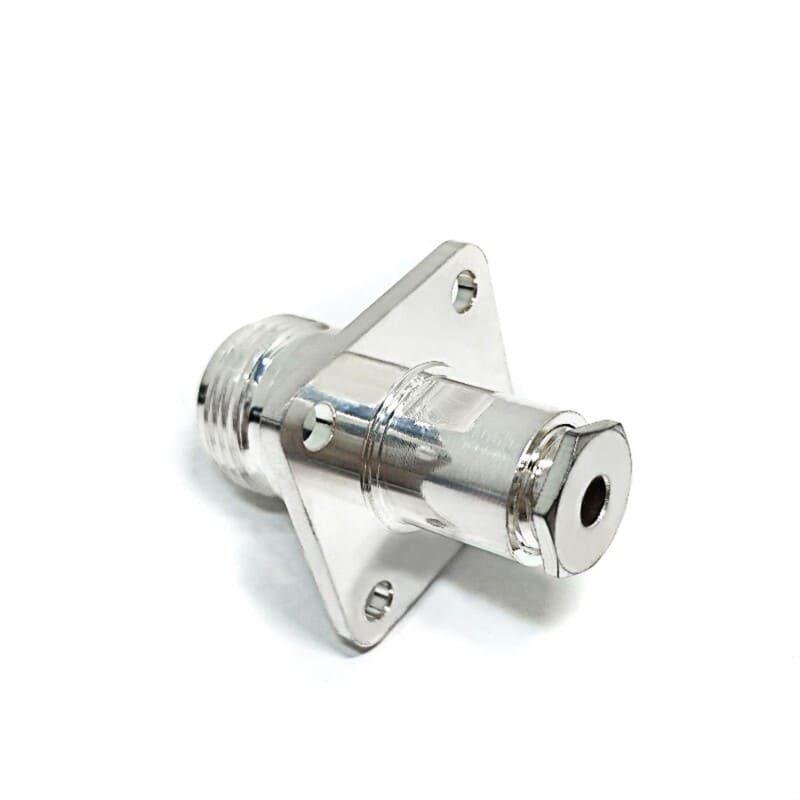

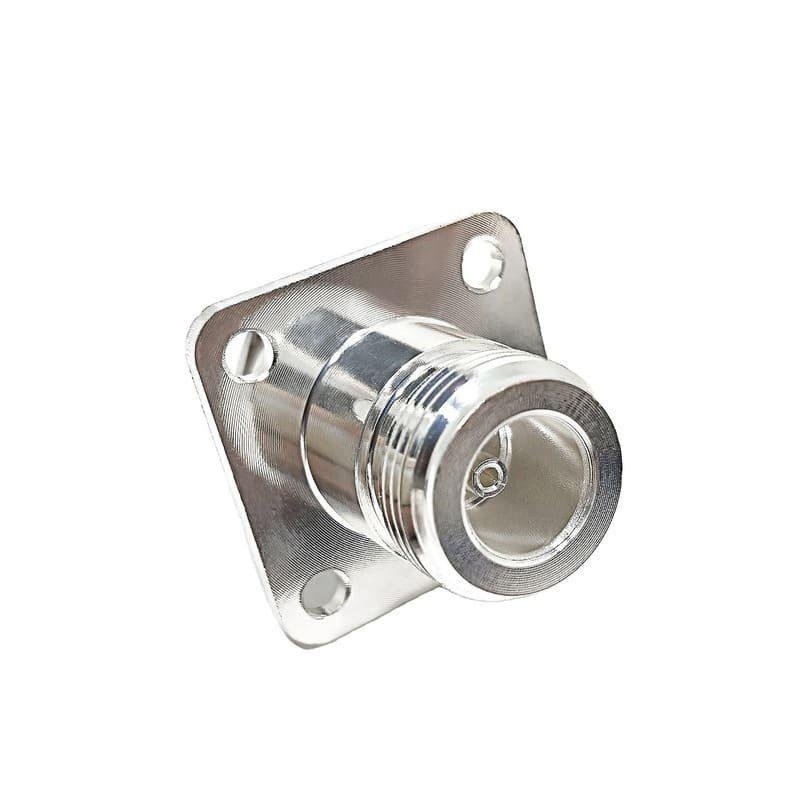

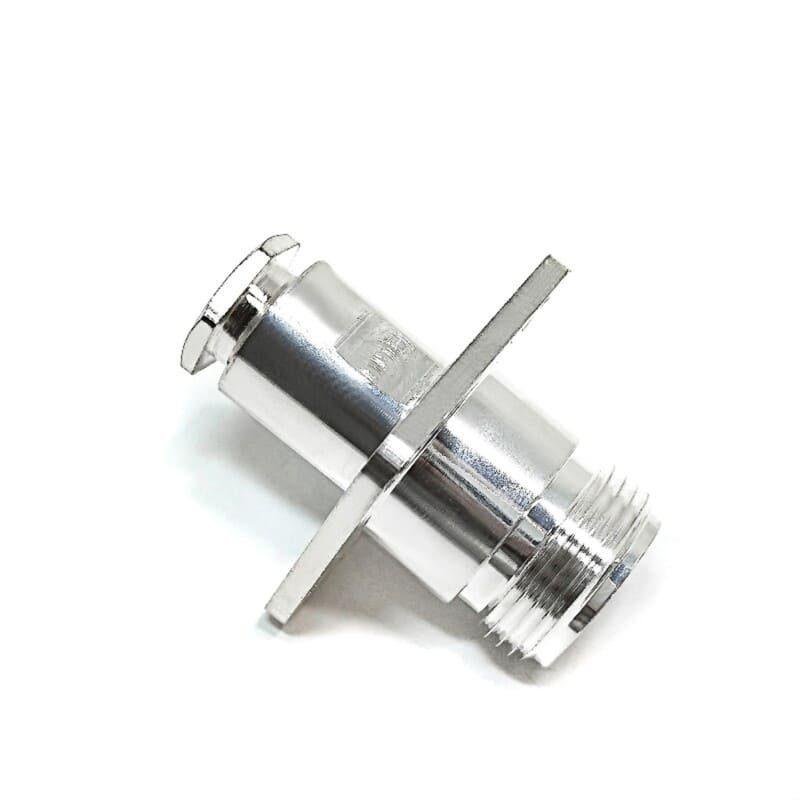

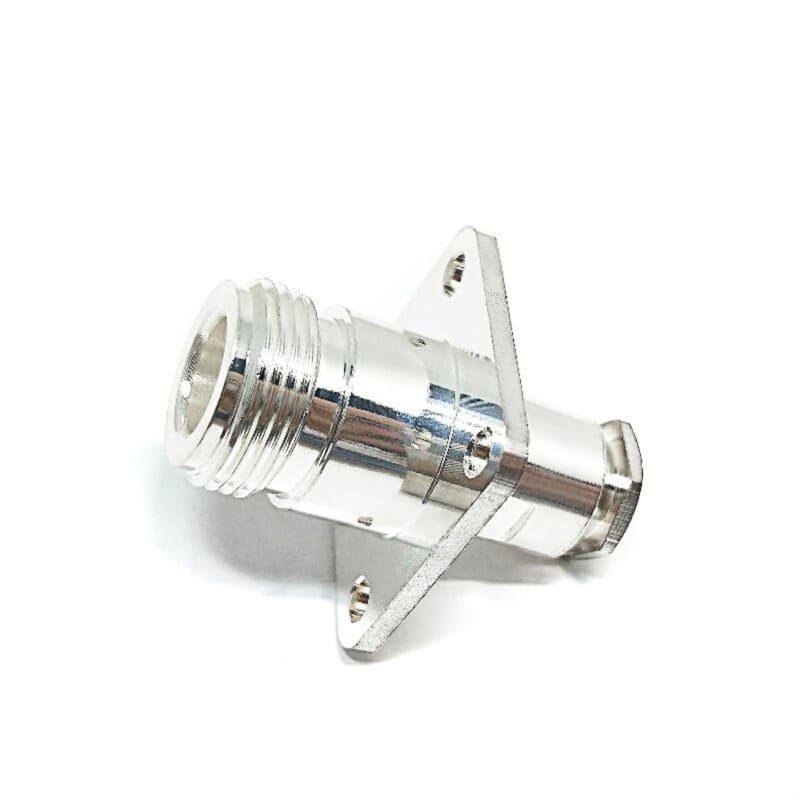

N F 4H Panel Mount ClAMP for RG58/RG142/LMR195/LMR200 Cable

Description

The N-Type female panel mount connector is a fundamental component for secure RF interfacing, prized for its mechanical stability and superior grounding. This variant features a 4-hole square flange (4H), providing a robust mounting solution that prevents connector rotation and ensures maximum surface contact with the equipment chassis. It is specialized for the 5mm (0.195″ to 0.200″) cable class, specifically optimized for high-performance LMR200 and double-shielded RG142.

Unlike crimp-style connectors that require specialized tooling, this variant utilizes a mechanical clamp termination system. This design employs an internal compression sleeve to secure the cable braid, providing a high-strength connection that can be assembled on-site with standard wrenches. As a female interface (jack), it provides the external threaded mating point for an enclosure, allowing for a seamless transition from internal jumpers to external antenna feeders. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it ensures consistent 50-Ohm performance and reliable operation up to 11 GHz.

Key Technical Advantages

• 4-Hole Square Flange Mount: Provides superior mechanical stability compared to single-nut mounts, ensuring the connector remains fixed under high mating torque or heavy vibration.

• Field-Installable Design: The clamp-style assembly allows for high-integrity terminations without the need for specialized crimping tools, ideal for on-site repairs and custom installations.

• Mid-Range Cable Match: Specifically calibrated for the 0.195″ to 0.200″ OD cable family, ensuring maximum pull-off resistance and an optimized electrical transition for mid-sized coaxial lines.

• Vibration-Proof Threaded Interface: The 5/8-24 threaded outer shell ensures a secure, locked mating with male connectors, resisting loosening in industrial, mobile, or tower-top environments.

• High-Grade Materials: Features a nickel-plated brass body and a gold-plated center contact for maximum corrosion resistance and consistent signal clarity over the life of the product.

Key Features

• Interface Type: N-Type Female (Jack) with standard 5/8-24 threaded outer shell.

• Mounting Type: 4-Hole Square Flange (Panel Mount).

• Termination Method: Clamp (Outer Braid) / Solder (Center Pin).

• Cable Compatibility: Optimized for RG58, RG141, RG142, LMR195, LMR200, and equivalent 50-Ohm mid-sized coaxial cables.

• Premium Construction: Features a nickel-plated brass body and high-performance PTFE dielectric.

• Common Application: RF equipment enclosures, cellular base stations, WLAN antenna arrays, and industrial telecommunications panels.

🔹 Applications:

• Panel-mounted RF cable connections
• Communication systems
• Antenna setups
• Signal routing
• Wireless communication
• RF installations
