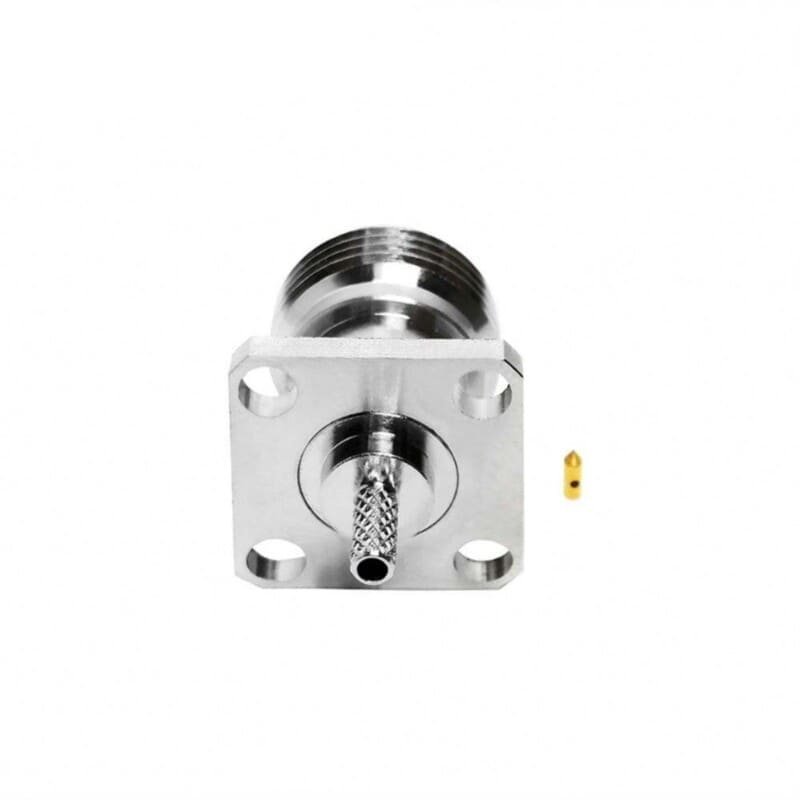

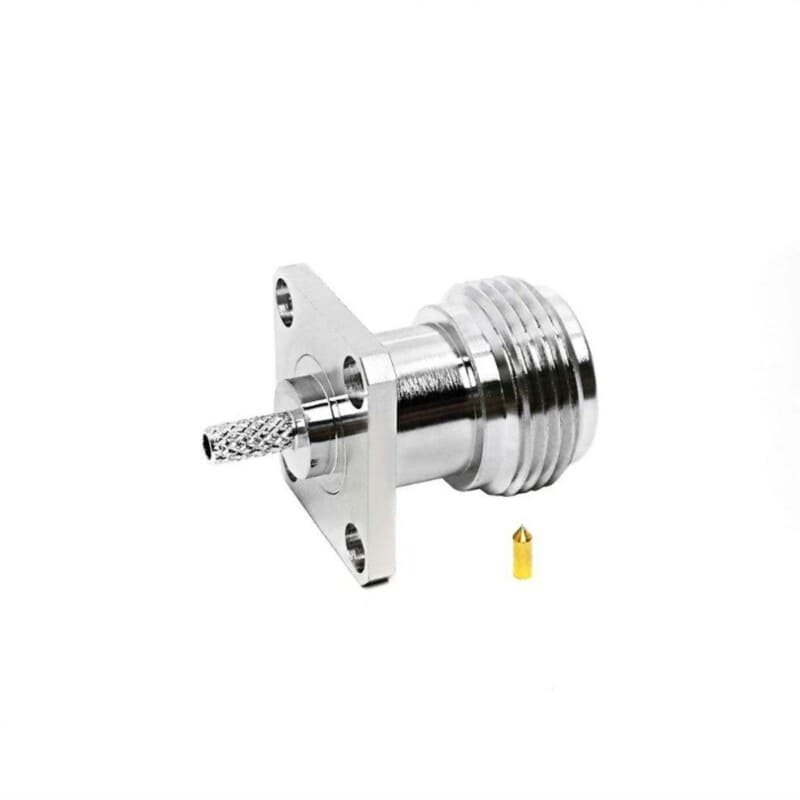

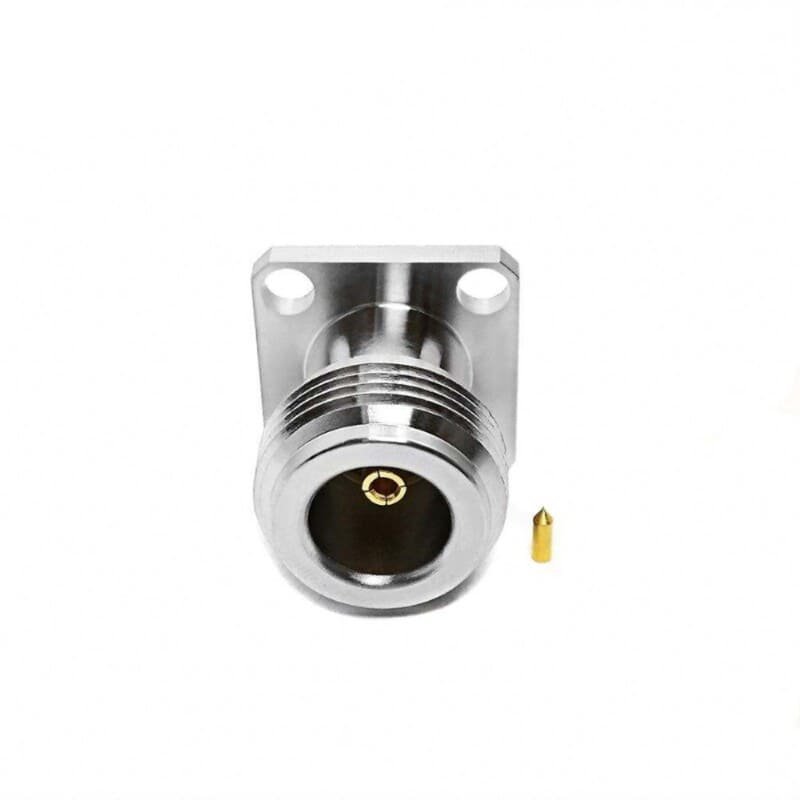

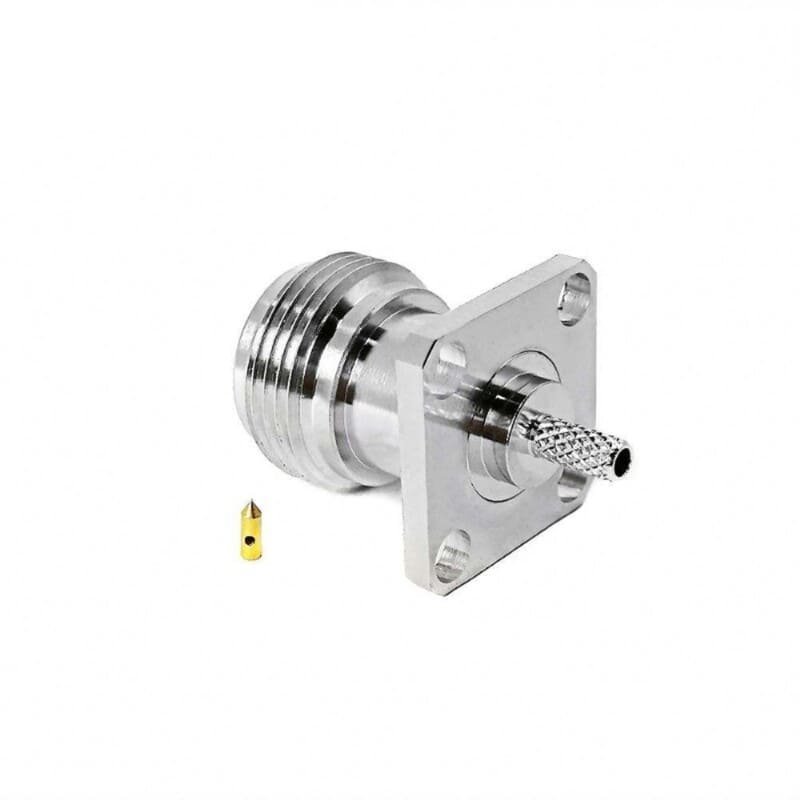

N F 4H Panel Mount CRIMP for LMR100/RG174/RG316 Cable

Description

The N-Type female panel mount connector is a fundamental component for secure RF interfacing, prized for its mechanical stability and shielded performance. This variant features a 4-hole square flange (4H), providing a robust mounting solution that prevents connector rotation and ensures a high-integrity ground connection to the equipment chassis. It is specialized for the 2.5mm to 3mm cable class, specifically optimized for high-performance LMR100 and high-temperature RG316.

As a female interface (jack), it provides the external threaded mating point for an enclosure, allowing for seamless transition from internal micro-coaxial jumpers to external antenna feeders. This connector utilizes a standard hex-crimp termination system for the outer conductor, providing a high-strength mechanical bond and maximum shielding effectiveness. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and reliable operation up to 6 GHz, ensuring signal integrity in high-density electronic environments.

Key Technical Advantages

• 4-Hole Square Flange Mount: Provides superior mechanical stability compared to single-nut mounts, ensuring the connector remains fixed under high torque or vibration.

• Thin-Gauge Cable Match: Specifically calibrated for the small OD cable family (RG174/RG316), ensuring a precise mechanical fit and optimized electrical transition for flexible internal jumpers.

• Secure Crimp Termination: The hex-crimp sleeve provides a robust 360-degree grip on the cable braid, offering excellent strain relief and high EMI/RFI shielding.

• Vibration-Proof Threaded Interface: The 5/8-24 threaded outer shell ensures a secure, locked mating with male connectors, resisting loosening in industrial or mobile environments.

• High-Grade Materials: Features a nickel-plated brass body and a gold-plated center contact for maximum corrosion resistance and consistent signal clarity over the life of the product.

Key Features

• Interface Type: N-Type Female (Jack) with standard 5/8-24 threaded outer shell.

• Mounting Type: 4-Hole Square Flange (Panel Mount).

• Termination Method: Crimp (Outer Braid) / Solder (Center Pin).

• Cable Compatibility: Optimized for LMR100, RG174, RG188, RG316, and equivalent 50-Ohm thin coaxial cables.

• Premium Construction: Features a nickel-plated brass body and high-performance PTFE dielectric.

• Common Application: RF equipment enclosures, cellular modules, internal cabinet jumpers, and laboratory test fixtures.
