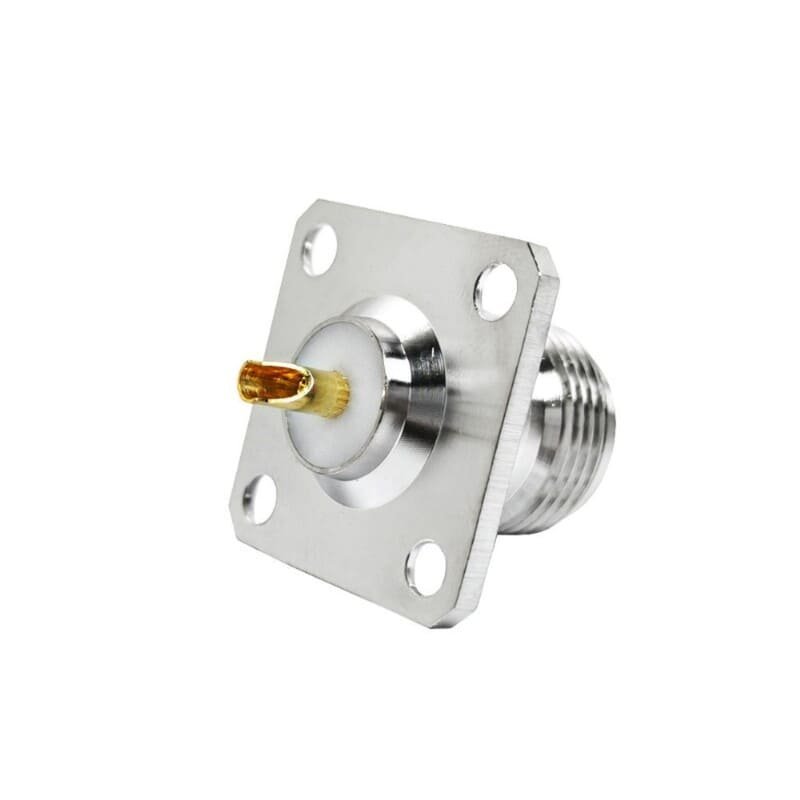

N F 4H Panel Mount Solder(19mm)

Description

The N-Type female panel mount connector is a fundamental component for secure RF interfacing, prized for its mechanical robustness and superior grounding. This variant features a 19mm square flange (4H), providing a mid-sized mounting footprint that balances space efficiency with high structural integrity. The four-hole mounting pattern ensures the connector remains perfectly stationary under high mating torque and maintains a constant, low-impedance ground path to the chassis.

Designed for solder-type termination, this connector features a high-conductivity solder cup or post. This allows for a permanent metallic bond to the internal center conductor, ensuring maximum signal clarity and minimal contact resistance. This interface is particularly valued in high-power applications and sensitive microwave subsystems where crimp-style connections may not meet the required electrical precision. Manufactured with a heavy-duty plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and reliable operation across a wide frequency spectrum.

Key Technical Advantages

• Standard 19mm Flange: Provides an ideal surface area for secure mounting on chassis and enclosures while allowing for efficient spacing in multi-port RF panels.

• 4-Hole Anti-Rotation Mount: The square flange design prevents the connector from twisting during the tightening of male mating connectors, protecting internal solder joints.

• Precision Solder Termination: Features a gold-plated solder contact for a permanent, low-loss connection, ideal for phase-stable jumpers and internal cabinet wiring.

• Superior EMI/RFI Shielding: The solid machined brass body provides excellent shielding effectiveness, preventing signal leakage and ingress in high-interference environments.

• Vibration-Proof Threaded Interface: The 5/8-24 threaded outer shell ensures a secure, locked mating with male connectors, resisting loosening in industrial or outdoor installations.

Key Features

• Interface Type: N-Type Female (Jack) with standard 5/8-24 threaded outer shell.

• Mounting Type: 4-Hole Square Flange (19mm x 19mm).

• Termination Method: Solder (Center Pin / Solder Cup).

• Plating: Durable Nickel or Tri-metal (White Bronze) plating for maximum corrosion resistance.

• Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.

• Common Application: RF amplifiers, transmitter enclosures, base station subsystems, and professional test equipment panels.

🔹 Applications:

• RF panel interface connections
• Communication systems
• RF signal routing
• Test equipment
• PCB enclosures
• Broadcast setups
