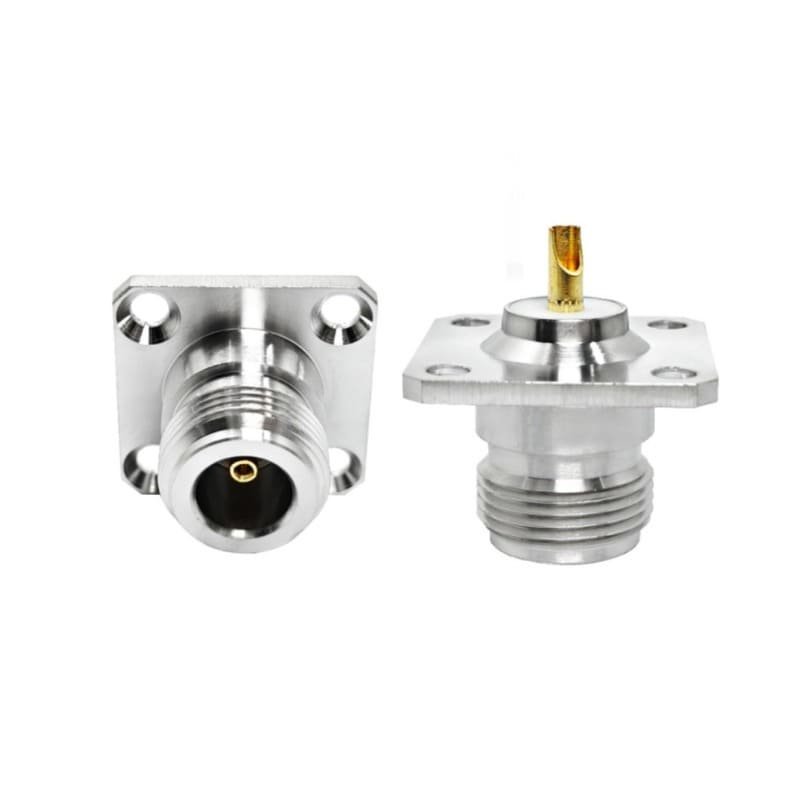

N F 4H Panel Mount Solder(17.5mm)

Description

The N-Type female panel mount connector is a cornerstone of high-reliability RF interfacing, valued for its mechanical durability and superior electrical grounding. This specific variant utilizes a 17.5mm square flange (4H), offering a more compact footprint than standard 25mm flanges while maintaining the anti-rotation benefits of a four-hole mounting system. It is ideal for high-density chassis where panel real estate is at a premium but mechanical stability cannot be compromised.

Designed with a solder cup or solder post termination, this connector allows for a permanent, low-resistance electrical bond directly to the cable’s center conductor or internal circuit components. This solder-type interface is superior for minimizing signal leakage and ensuring consistent performance in high-vibration or high-frequency environments. Manufactured with a durable nickel-plated or tri-metal plated brass body and premium PTFE (Teflon) insulation, it delivers exceptionally low VSWR and high power handling capabilities across the microwave spectrum.

Key Technical Advantages

• Compact 17.5mm Flange: Optimized for high-density electronic enclosures and compact RF modules where space-saving mounting is required.

• 4-Hole Stability: The square flange mounting pattern prevents connector rotation during mating and ensures a constant, high-integrity ground connection to the equipment chassis.

• Precision Solder Termination: Features a high-conductivity solder contact for permanent, low-loss connections, ideal for phase-stable jumper assemblies and sensitive microwave circuitry.

• Superior Shielding Effectiveness: The solid machined body and flange design provide maximum EMI/RFI protection, essential for preventing signal ingress in multi-carrier systems.

• Vibration-Proof Interface: The 5/8-24 threaded outer shell ensures a secure, locked mating with male connectors, resisting loosening in industrial, mobile, or aerospace environments.

Key Features

• Interface Type: N-Type Female (Jack) with standard 5/8-24 threaded outer shell.

• Mounting Type: 4-Hole Square Flange (17.5mm x 17.5mm).

• Termination Method: Solder (Center Pin / Solder Cup).

• Plating: Heavy-duty Nickel or Tri-metal (White Bronze) plating for superior corrosion resistance.

• Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.

• Common Application: RF power amplifiers, filter banks, microwave subsystems, and high-density telecommunications panels.

Technical Summary
