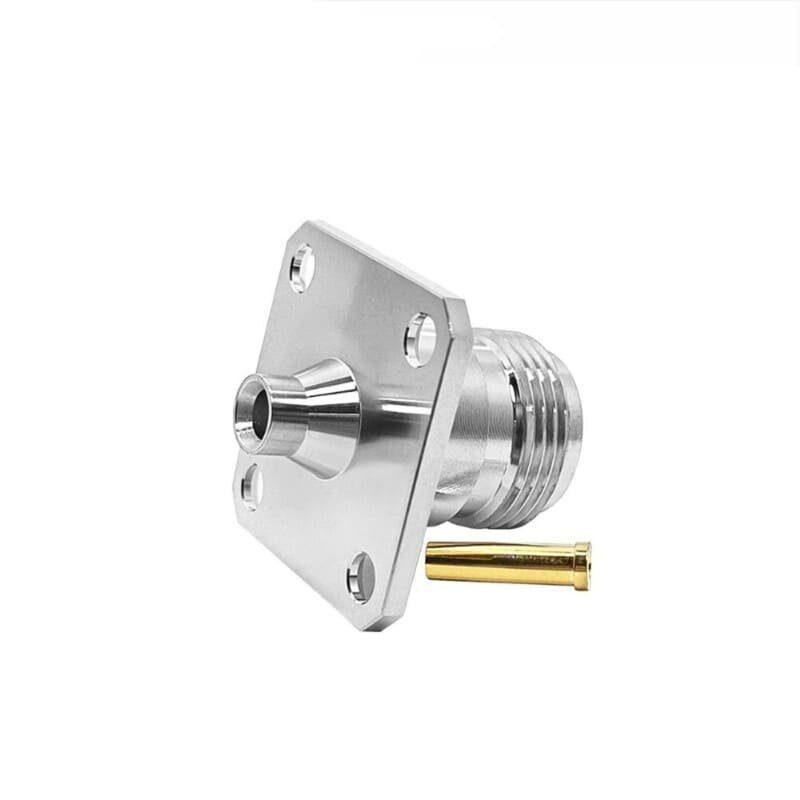

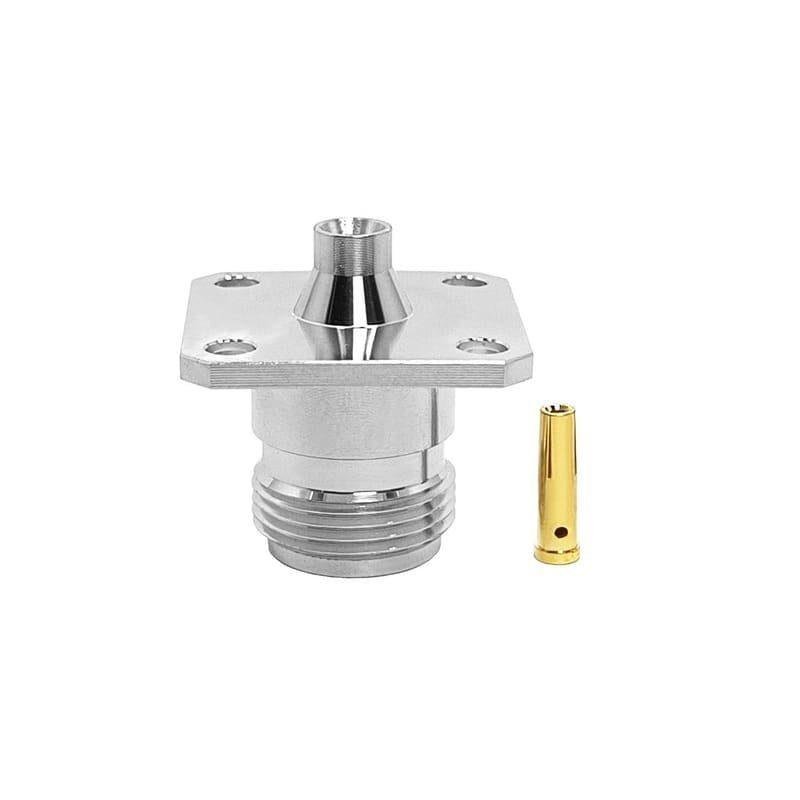

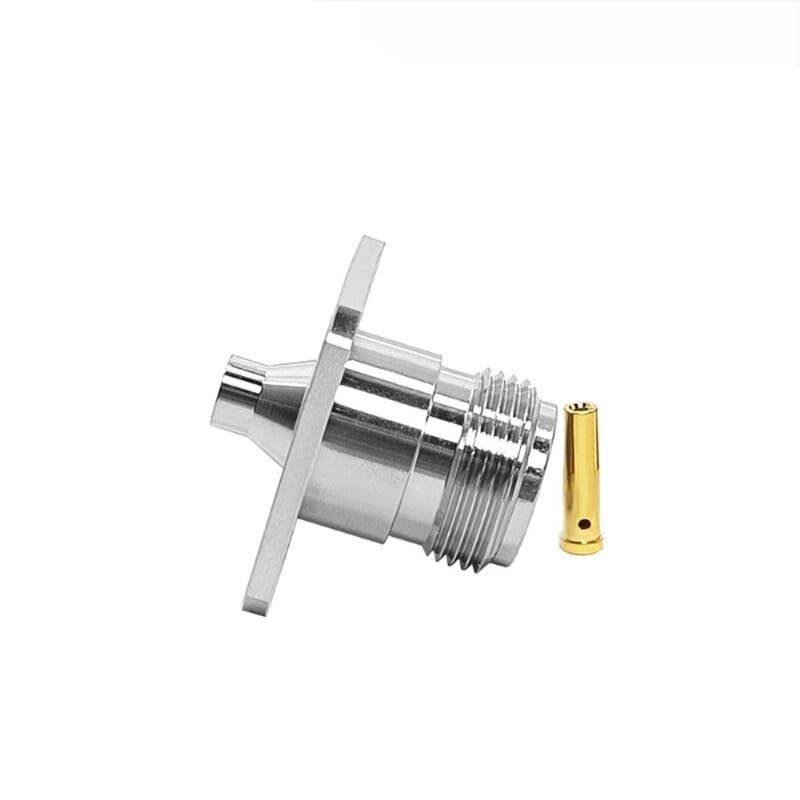

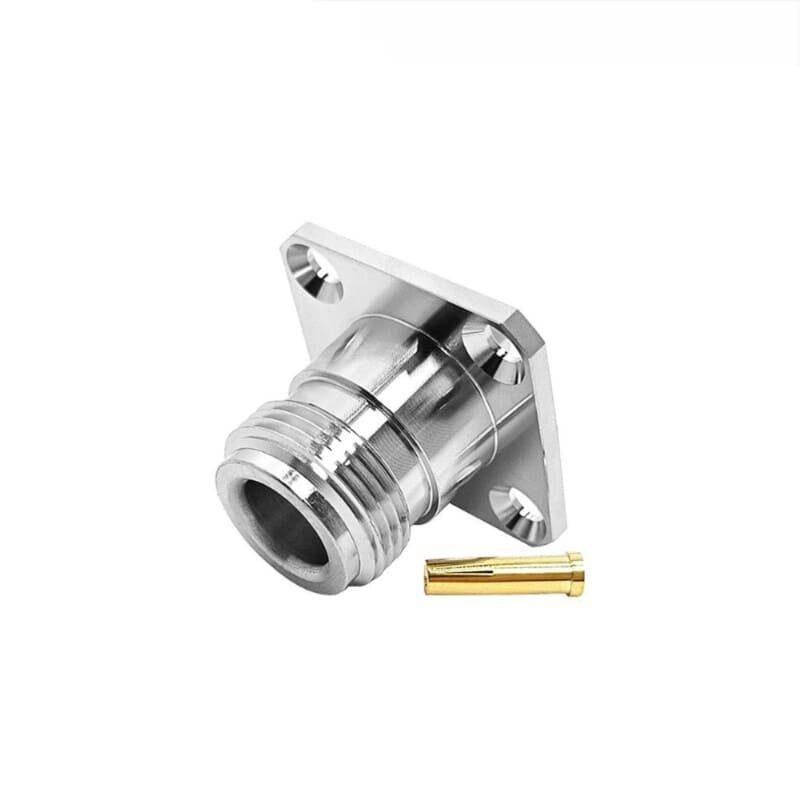

N F 4H Panel Mount Solder for Semi-rigid .086/RG405 Cable

Description

The N-Type female panel mount connector is prized for its exceptional mechanical strength and stable performance across the microwave spectrum. This variant features a 4-hole square flange (4H), providing a robust mounting solution that ensures the connector remains fixed under high torque and maintains a constant, high-integrity ground connection to the equipment chassis. It is specialized for the .086-inch cable class, specifically optimized for solid-jacket Semi-Rigid and hand-formable RG405 cables.

This connector utilizes a direct-solder termination for both the center conductor and the outer jacket. By soldering the cable’s copper or silver-plated jacket directly into the precision-machined rear bore of the connector body, the assembly achieves an airtight, 360-degree electrical bond. This method is superior for maintaining maximum shielding effectiveness and ensuring the lowest possible VSWR in high-frequency applications where cable diameter must be minimized. Manufactured with a durable tri-metal or gold-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and exceptionally low attenuation up to 18 GHz.

Key Technical Advantages

• 4-Hole Square Flange Mount: Provides superior mechanical stability and surface contact, ensuring the connector remains secure and maintains a stable ground path to the chassis.

• Microwave Grade Shielding: The direct-solder body interface creates a continuous metallic shield, providing maximum EMI/RFI protection essential for sensitive, high-density microwave circuitry.

• Precision .086/RG405 Match: Specifically calibrated for the 0.086-inch OD jacket, ensuring an optimized electrical transition and high mechanical rigidity for small-form-factor applications.

• Phase-Stable Performance: The permanent solder bond minimizes signal fluctuations and non-linearities, making it ideal for precision micro-jumpers and internal cabinet routing.

• Vibration-Proof Threaded Interface: The 5/8-24 threaded outer shell ensures a secure, locked mating with male connectors, resisting loosening in aerospace, mobile, or laboratory environments.

Key Features

• Interface Type: N-Type Female (Jack) with standard 5/8-24 threaded outer shell.

• Mounting Type: 4-Hole Square Flange (Panel Mount).

• Termination Method: Solder (Outer Jacket) / Solder (Center Pin).

• Cable Compatibility: Optimized for .086 Semi-Rigid, RG405, and hand-formable 0.086″ 50-Ohm coaxial cables.

• Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.

• Common Application: Microwave equipment test ports, high-frequency modules, RF power dividers, and phase-stable chassis links.

🔹 Applications:

• High-frequency RF panel mounting
• Microwave communication systems
• Precision RF assemblies
• Test setups
• Signal routing
• Lab calibration
