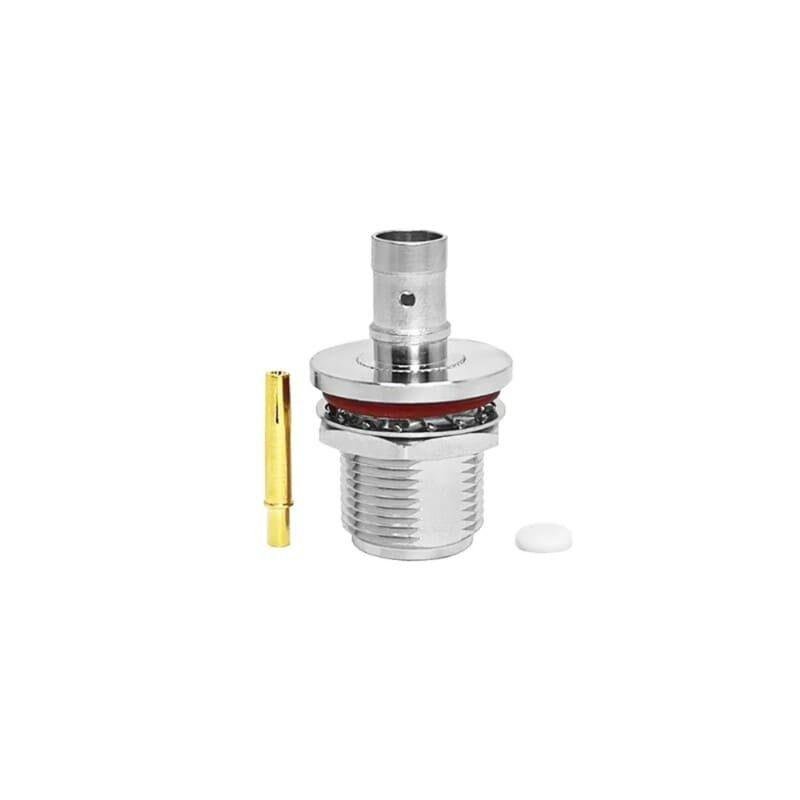

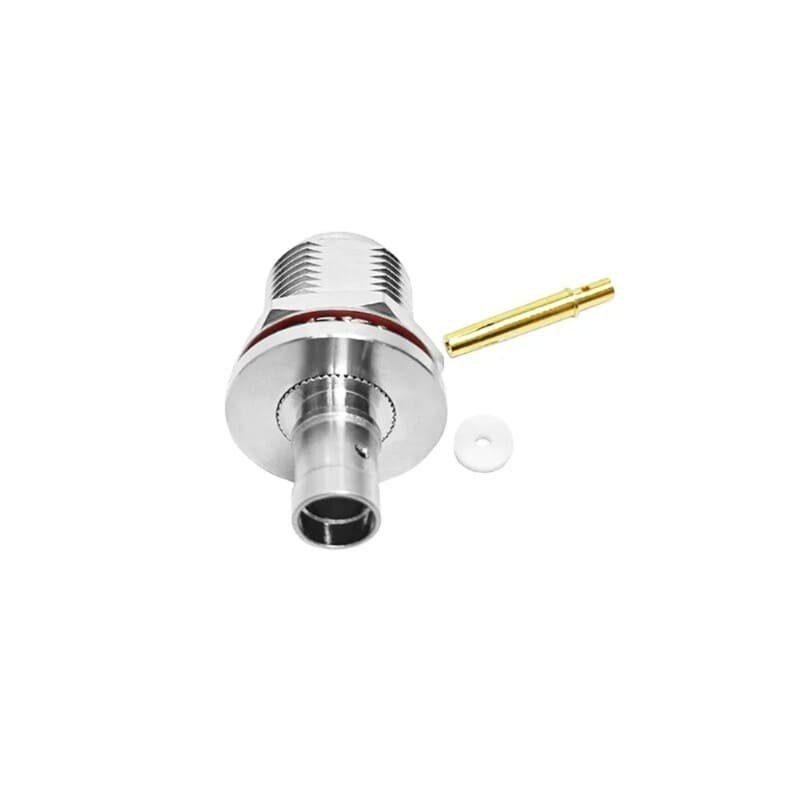

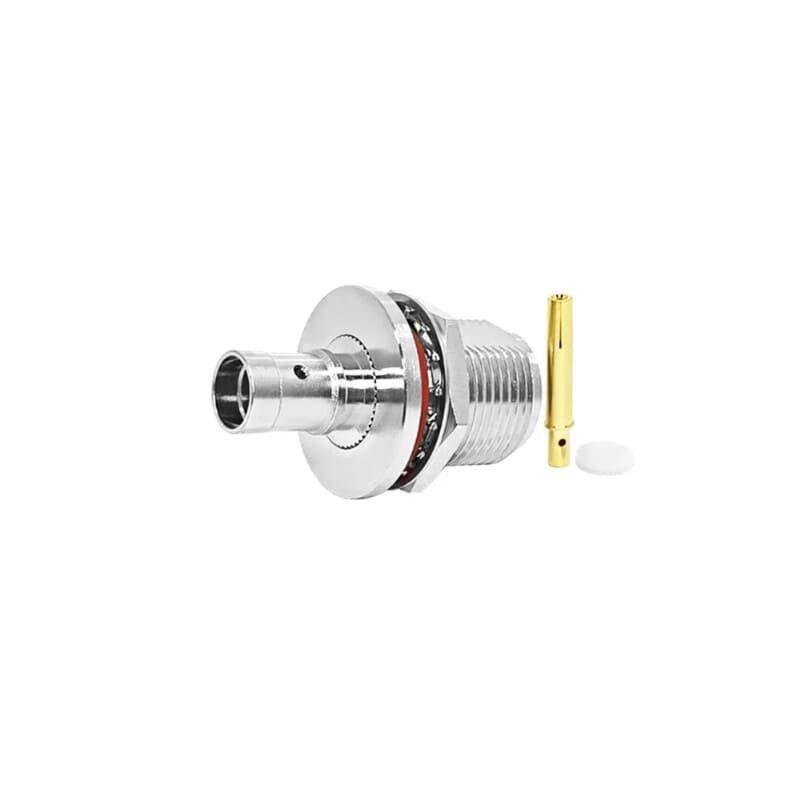

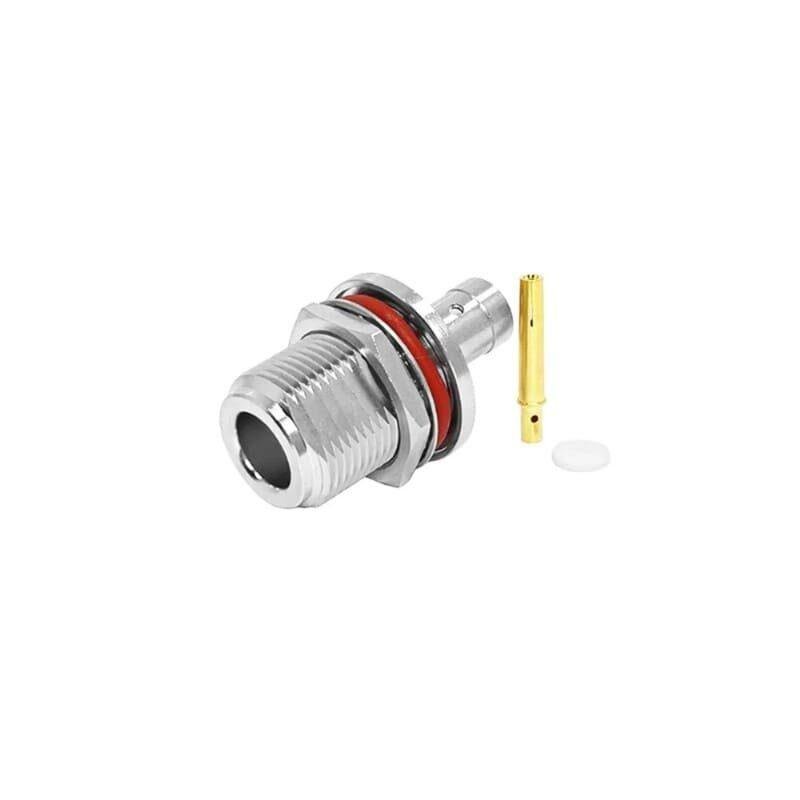

N F BH Solder for RG141 Cable

Description

The N-Type female bulkhead connector is prized for its exceptional mechanical strength and stable performance across the microwave spectrum. This variant features a Bulkhead (BH) mounting design, including a mounting nut and washer, allowing for a high-integrity, fixed connection through panel walls. It is specialized for the RG141 cable class, which is frequently used in applications requiring superior shielding and minimal signal leakage compared to standard flexible braided cables.

This connector utilizes a direct-solder termination for both the center conductor and the outer jacket. By soldering the cable’s silver-plated copper jacket directly to the connector body, the assembly achieves an airtight, 360-degree electrical bond. This method is superior for maintaining Passive Intermodulation (PIM) stability and ensuring the lowest possible VSWR in high-frequency applications. Manufactured with a durable nickel-plated or tri-metal plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and exceptionally low attenuation up to 18 GHz.

Key Technical Advantages

• Total Shielding Integrity: The solder-on body interface creates a continuous metallic shield, providing maximum EMI/RFI protection essential for sensitive microwave systems and high-power transmitters.

• Secure Bulkhead Mounting: The threaded body and hex-nut design provide a robust, non-rotating mounting solution through enclosure walls, ensuring a high-integrity ground connection to the chassis.

• Precision RG141 Match: Specifically calibrated for the 0.141-inch OD solid or hand-formable jacket, ensuring an optimized electrical transition and high mechanical rigidity.

• Airtight Mechanical Bond: The direct-solder assembly method ensures a moisture-proof and permanent connection that resists oxidation and environmental degradation over long-term deployment.

• Microwave Grade Performance: Features high-conductivity materials and gold-plated center contacts to maintain signal integrity and low VSWR across high-frequency bands.

Key Features

• Interface Type: N-Type Female (Jack) with standard 5/8-24 threaded outer shell.

• Mounting Type: Bulkhead (Through-Panel Mount) with Nut and Washer.

• Termination Method: Solder (Outer Jacket) / Solder (Center Pin).

• Cable Compatibility: Optimized for RG141, semi-rigid, and hand-formable 0.141″ 50-Ohm coaxial cables.

• Premium Construction: Features a plated brass body and high-performance PTFE dielectric.

• Common Application: Microwave equipment test ports, cellular base station internal chassis links, satellite communication modules, and phase-stable jumpers.

Technical Summary
