Mini DIN Male to 7/16 DIN Female Adapter

Description

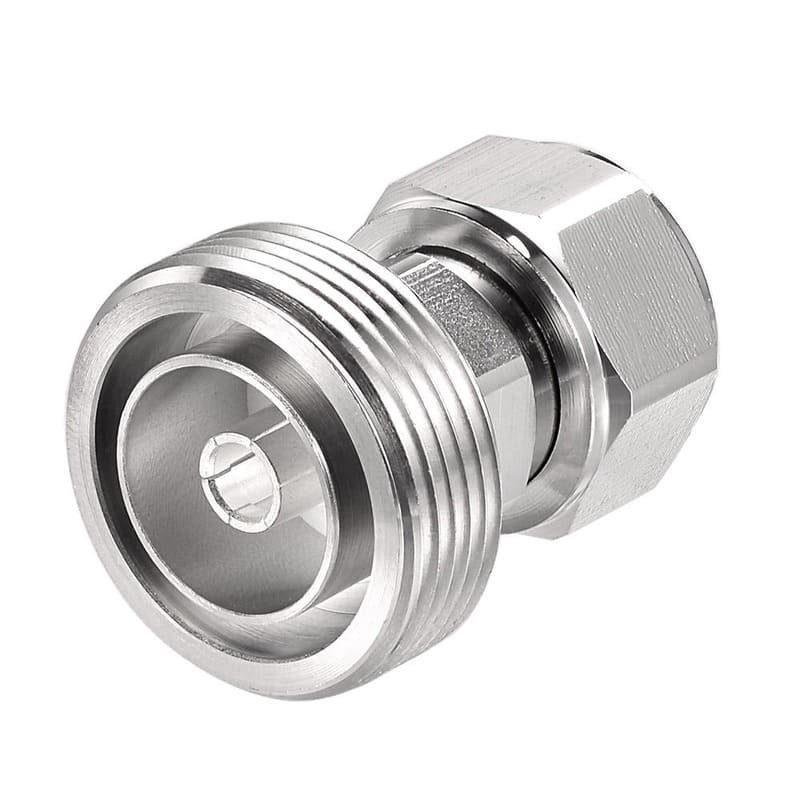

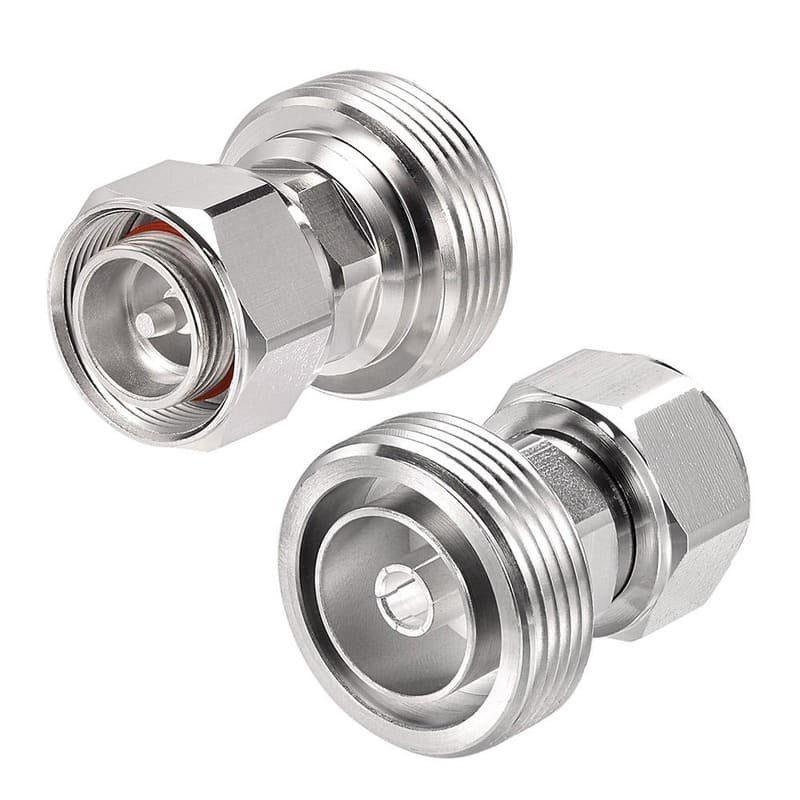

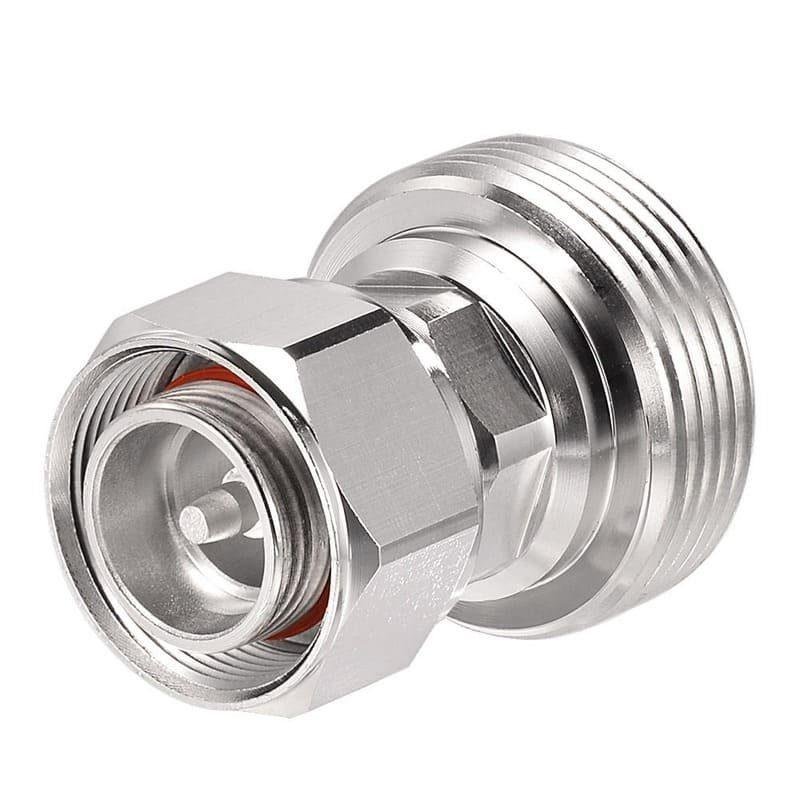

The Mini DIN (4.3-10) Male to 7/16 DIN Female Adapter is a specialized between-series RF component designed to provide a robust transition between two prominent low-PIM standards. It features a 4.3-10 Plug (Male) on one side, representing the modernized, space-saving “Mini DIN” standard, and a 7/16 DIN Jack (Female) on the other side, featuring the large-format threaded socket known for its exceptional power handling and mechanical strength in macro cell infrastructure.

This adapter is indispensable for field engineers and technicians who need to connect 7/16 DIN-terminated cable assemblies to the compact 4.3-10 female ports found on the latest Remote Radio Heads (RRH) and Distributed Antenna Systems (DAS). The precision-machined design ensures a constant 50 Ohm impedance and is specifically optimized to maintain ultra-low Passive Intermodulation (PIM) levels, which is critical for signal integrity in multi-carrier LTE and 5G networks. Constructed with a heavy-duty tri-metal (white bronze) plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 6 GHz.

Key Technical Advantages

• Ultra-Low PIM Performance: Specifically engineered to minimize passive intermodulation, ensuring maximum data throughput in modern high-speed cellular networks.

• Modern-to-Legacy Interoperability: Enables seamless integration between the latest 4.3-10 (Mini DIN) hardware and traditional 7/16 DIN high-power infrastructure.

• Vibration-Proof Threaded Mating: Both interfaces utilize secure threaded coupling mechanisms, ensuring a stable connection that resists loosening under physical shock or extreme environmental conditions.

• Superior RF Shielding: The solid brass construction and tri-metal plating provide an exceptional ground path, protecting against EMI and RFI interference across high-frequency bands.

• Maximum Conductivity: High-purity silver plating on the center contact pin and internal socket ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• 4.3-10 Male to 7/16 DIN Female Interface: Consists of a 4.3-10 Plug (with pin and hex nut) and a 7/16 DIN Jack (with socket and external threads).

• Tri-Metal / White Bronze Plating: Offers superior electrical conductivity and a non-magnetic finish that significantly reduces PIM compared to standard nickel plating.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its entire frequency range.

• Rugged Mechanical Design: Built to withstand high-torque installations and extreme outdoor tower-top environments.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in professional telecommunications systems.

🔹 Applications:

• RF Signal Interface between Mini DIN and 7/16 DIN Connectors
• Antenna & RF Cable Adaptation
• Telecom Base Stations & Infrastructure
• Wireless Communication Systems
• RF Test & Measurement Equipment
• High Power RF Transmission Systems
• RF Coaxial Cable Assemblies
• Outdoor & Industrial RF Installations
