Description

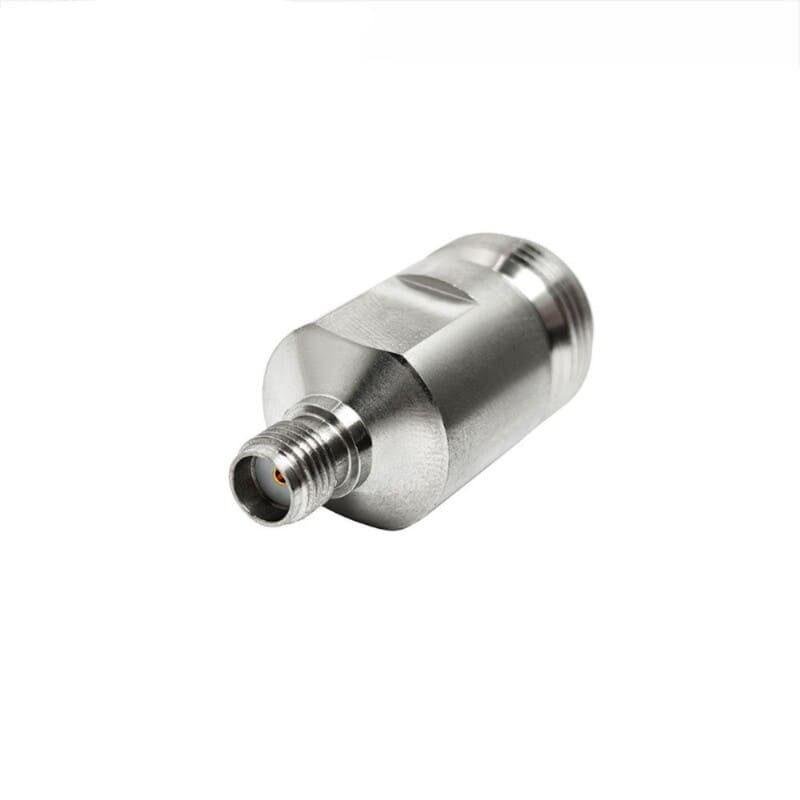

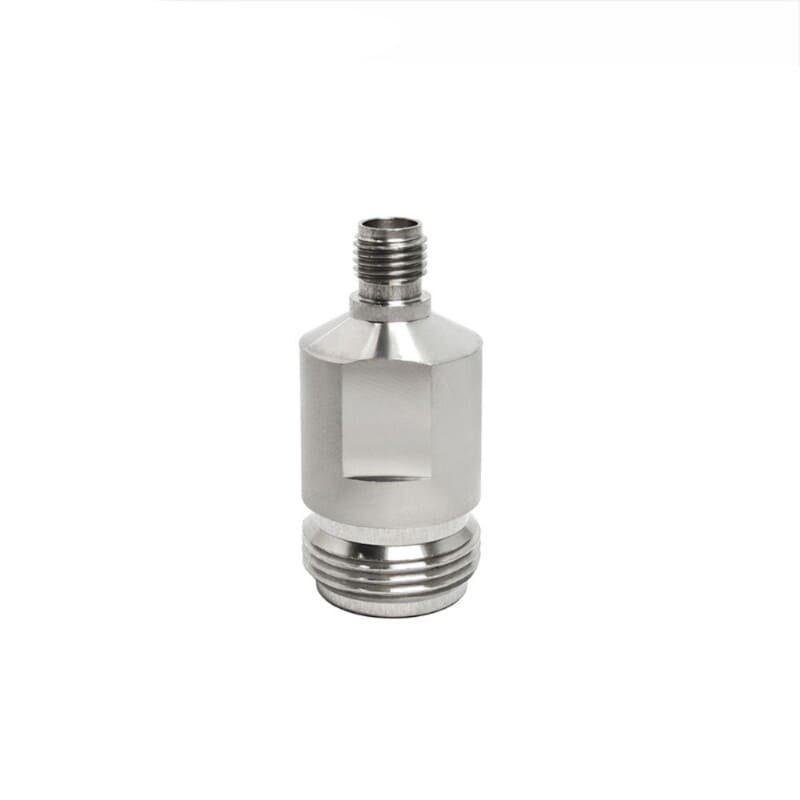

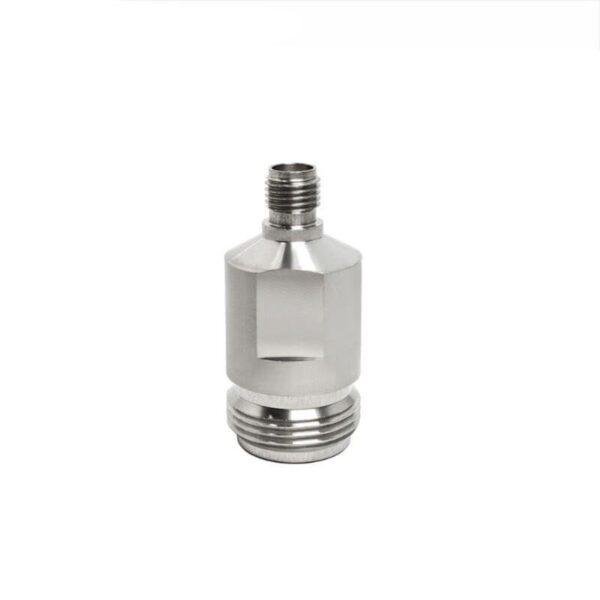

The SMA Female to N Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the compact SMA standard and the larger N-Type interface. It features an SMA Jack (Female) on one side, utilizing the standard fine-threaded external interface and internal socket, and an N-Type Jack (Female) on the other, featuring a rugged threaded external housing and a heavy-duty internal socket.
This adapter is indispensable for engineers and technicians who need to join SMA male and N-Type male cable assemblies. It serves as a high-quality coupler, allowing for versatile connectivity between modern microwave modules and standard professional infrastructure such as antennas, amplifiers, and base station ports. Precision-machined to ensure a constant 50 Ohm impedance, it is constructed with a durable nickel-plated or tri-metal plated brass body and PTFE (Teflon) insulation, maintaining exceptional signal integrity and low VSWR up to 11 GHz.
Key Technical Advantages
-
Standard Interface Integration: Enables seamless interoperability between high-precision SMA components and rugged N-Type wireless infrastructure.
-
Dual-Socket Coupler: Serves as a reliable link for joining two different male cable standards in a single, compact, and durable housing.
-
Superior RF Shielding: The solid brass construction and high-quality plating provide a continuous ground path, ensuring maximum protection against EMI and RFI interference.
-
Rugged Mechanical Stability: The heavy-duty housing is designed to withstand the physical stress and torque associated with large-format N-Type cable connections.
-
Maximum Conductivity: High-purity gold or silver plating on both internal center contact sockets ensures ultra-low contact resistance and superior protection against oxidation.
Key Features
-

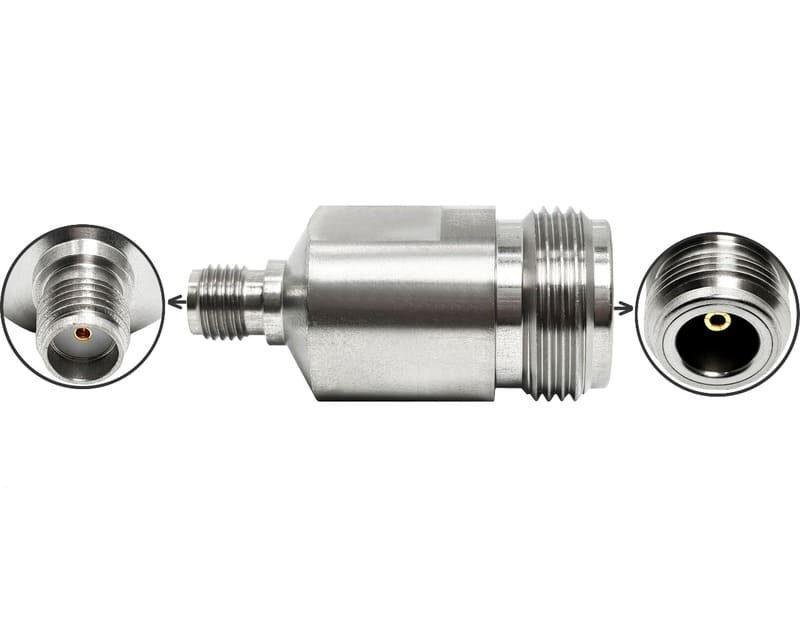

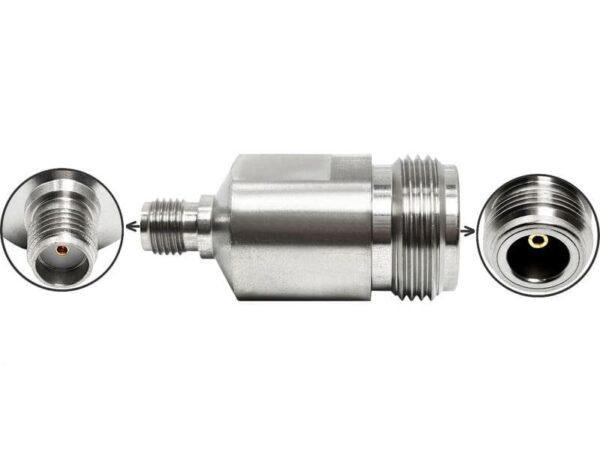

SMA Female to N Female Interface: Consists of an SMA Jack (with socket and external threads) and an N-Type Jack (with socket and external threads).
-
High-Grade Brass Construction: Offers superior electrical performance and professional-grade durability for both indoor and outdoor applications.
-
Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.
-
Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in high-traffic test and communication systems.
-
Precision 50 Ohm Match: Specifically engineered to match standard high-performance wireless communication and microwave test instrumentation.
🔹 Applications:
- RF connector conversion
- Antenna systems
- Communication equipment
- Signal routing
- RF testing
- Telecom systems
