SMA Female to N Male Adapter

Description

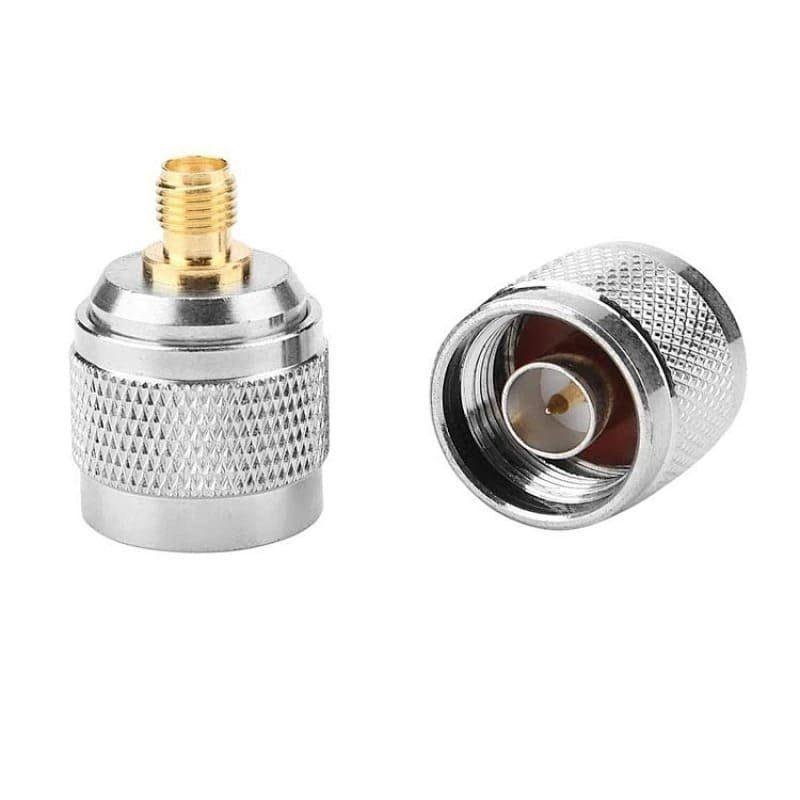

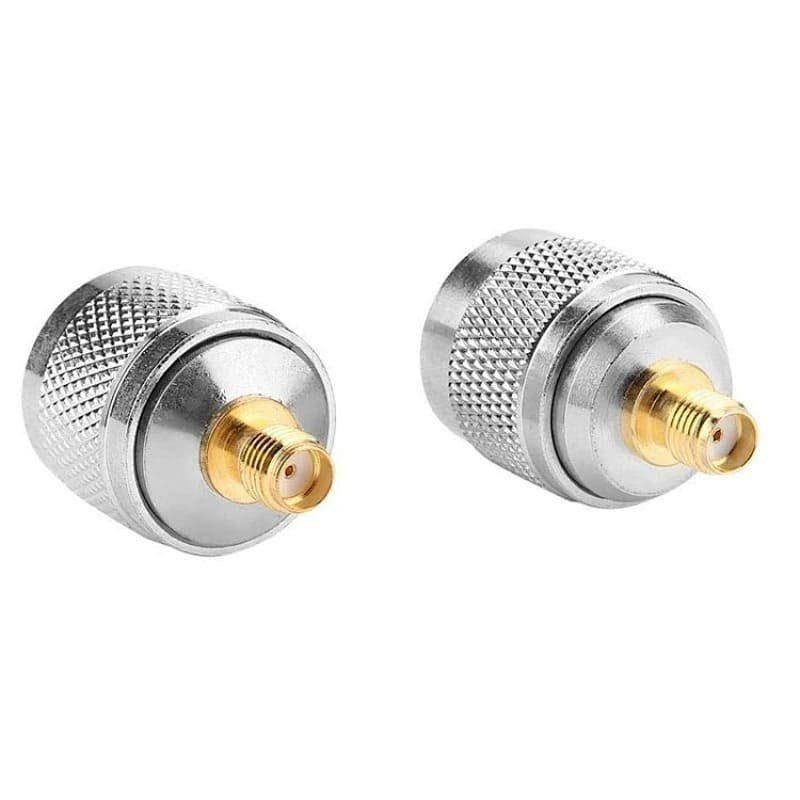

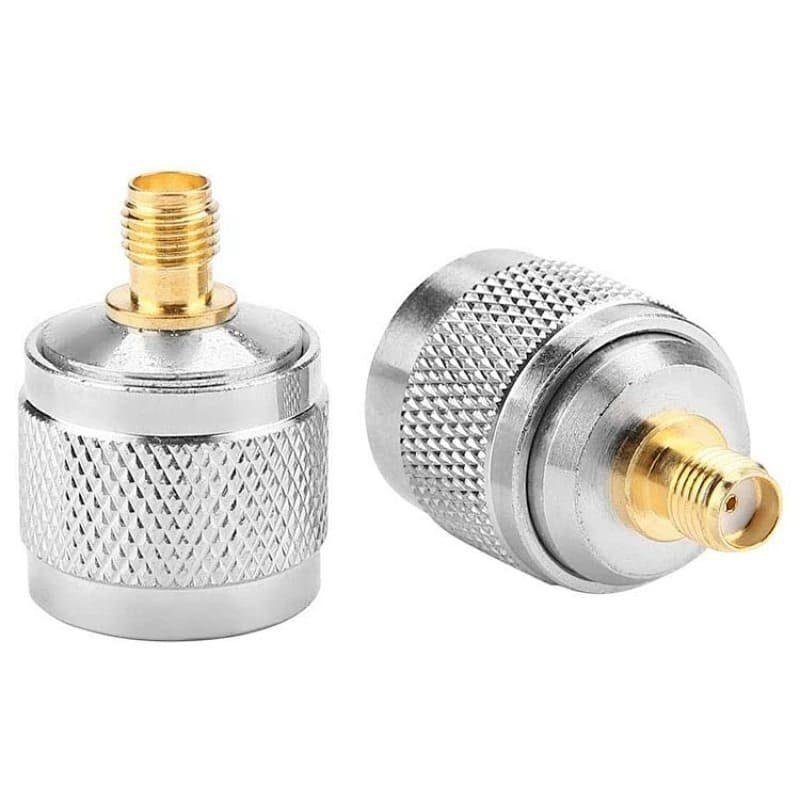

The SMA Female to N Male Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the ubiquitous compact SMA standard and the large-format N-Type interface. It features an SMA Jack (Female) on one side, utilizing a standard fine-threaded external interface and internal socket, and an N-Type Plug (Male) on the other, featuring a rugged threaded coupling nut and center pin.

This adapter is indispensable for engineers and technicians who need to connect SMA-terminated cable assemblies or components to N-Type female ports found on high-power amplifiers, cellular antennas, and microwave instruments. The design ensures a secure mechanical link between the precision of the SMA series and the mechanical durability of the N-Type series. Precision-machined to ensure a constant 50 Ohm impedance, it is constructed with a durable nickel-plated brass body and PTFE (Teflon) insulation, maintaining exceptional signal integrity and low VSWR up to 11 GHz.

Key Technical Advantages

• Cross-Series Integration: Enables seamless interoperability between high-precision SMA modules and rugged, professional-grade N-Type wireless infrastructure.

• Rugged Mechanical Stability: The solid brass construction and heavy-duty N-Type coupling nut are designed to handle the physical torque and mechanical load of standard coaxial connections.

• Superior RF Shielding: The solid metal housing provides a continuous ground path, ensuring excellent protection against EMI and RFI interference in sensitive communication environments.

• Precision-Machined Threads: Features high-quality threading on both interfaces to ensure smooth, secure connections and prevent port damage during high-torque installations.

• Maximum Conductivity: High-purity gold or silver plating on the internal center socket and contact pin ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• SMA Female to N Male Interface: Consists of an SMA Jack (with socket and external threads) and an N-Type Plug (with center pin and hex/knurled nut).

• Nickel-Plated Brass Construction: Offers superior corrosion resistance and professional-grade durability for both indoor and outdoor wireless applications.

• Premium PTFE Dielectric: Provides high thermal stability and maintains consistent electrical performance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in laboratory, industrial, and field settings.

• Precision 50 Ohm Match: Specifically engineered to match standard high-performance wireless communication and microwave test instrumentation.

🔹 Applications:

• RF interface compatibility
• Antenna connections
• Communication systems
• Signal routing
• RF cable assemblies
• Wireless systems
