TNC Female to UHF Male Adapter

Description

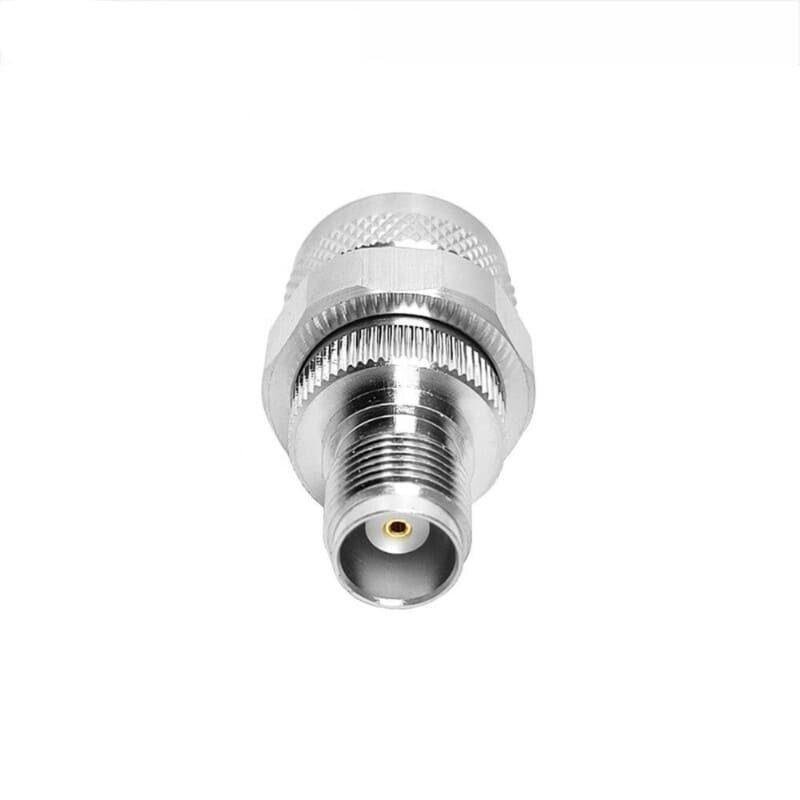

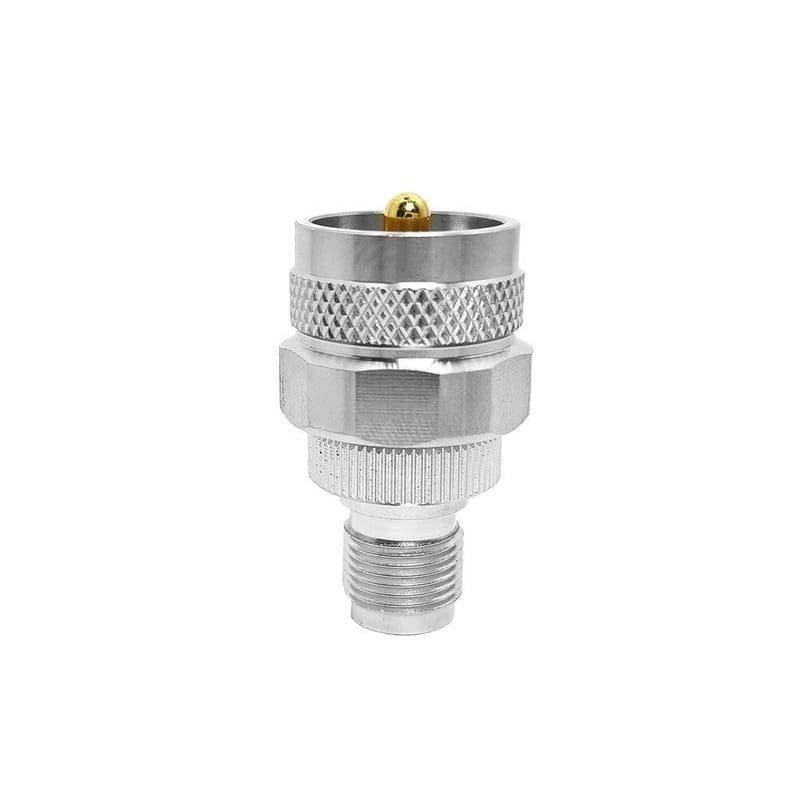

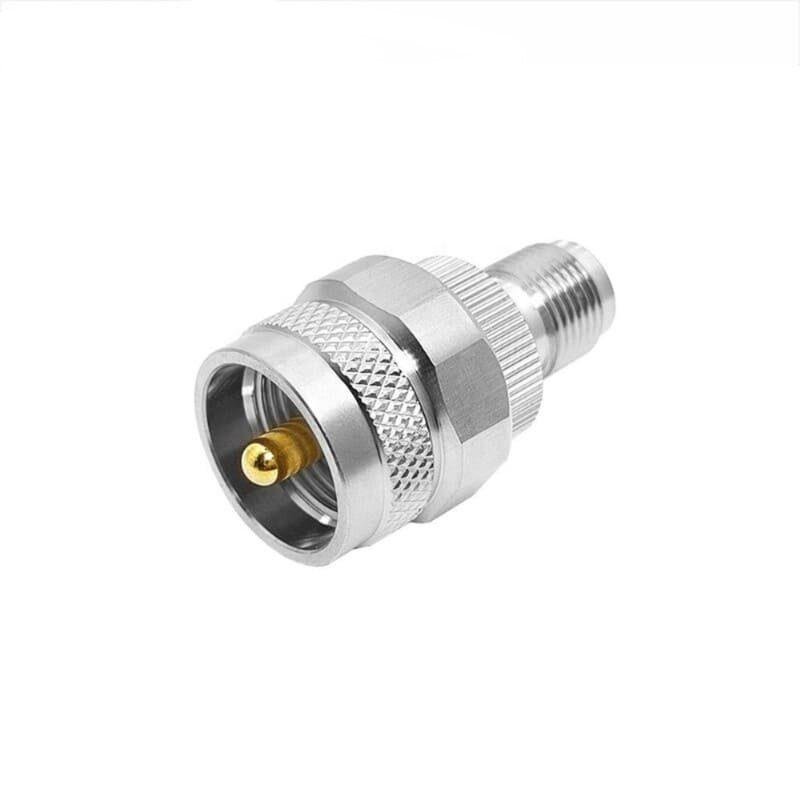

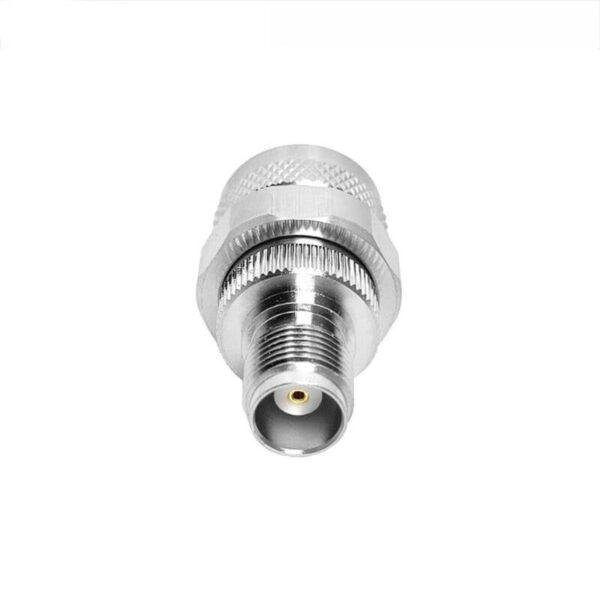

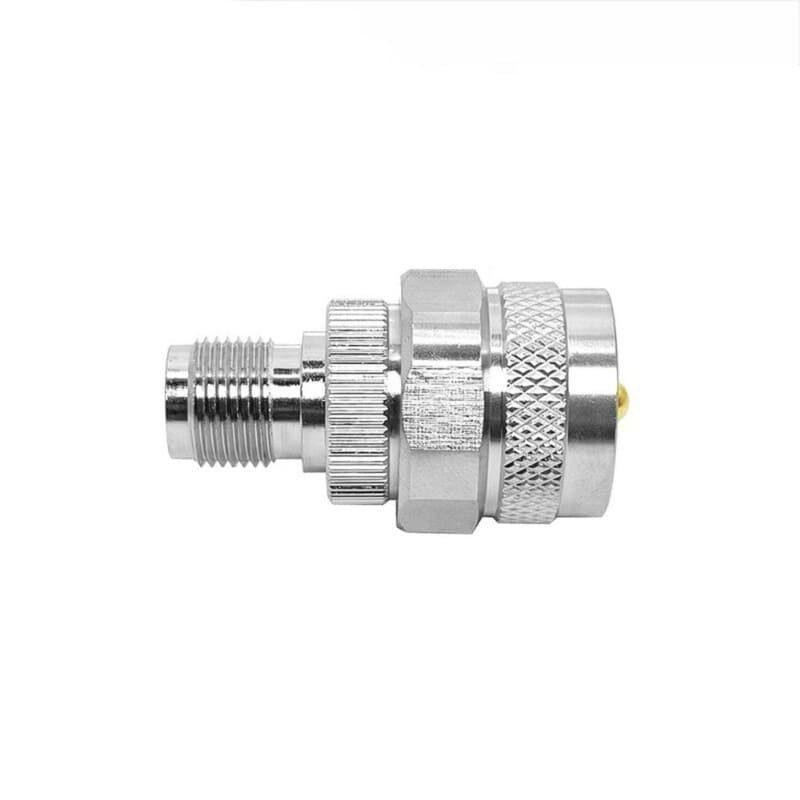

The TNC Female to UHF Male Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the vibration-resistant TNC standard and the traditional large-format UHF interface. It features a TNC Jack (Female) on one side, utilizing a rugged threaded external housing and internal socket, and a UHF Plug (Male/PL-259) on the other, featuring the classic large-format threaded coupling nut and center pin.

This adapter is indispensable for engineers and radio operators who need to connect TNC male-terminated cables?common in avionics, tactical radios, and professional cellular equipment?to UHF female ports (SO-239) found on high-power base stations, amplifiers, and mobile transceivers. The TNC interface offers a more secure, threaded alternative to BNC, ensuring that signal integrity is maintained in environments subject to mechanical shock, while the UHF side provides a robust connection for high-power applications. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it ensures a secure mechanical and electrical link in both field and laboratory environments.

Key Technical Advantages

• Interface Bridging: Enables the direct connection of professional TNC-terminated cables to traditional UHF-based communication hardware.

• Vibration-Proof Stability: The threaded TNC female interface provides a secure, locked connection that resists loosening in mobile and industrial applications.

• Rugged Mechanical Design: The solid brass construction and heavy-duty UHF coupling nut are built to withstand the physical stress and torque of standard mobile installations.

• Superior RF Shielding: The solid metal housing provides a continuous ground path, ensuring stable performance and protecting against EMI and signal leakage.

• Maximum Conductivity: High-purity gold or silver plating on the internal center contact socket and pin ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• TNC Female to UHF Male Interface: Consists of a TNC Jack (with socket and external threads) and a UHF Plug (PL-259 with center pin and threaded nut).

• Nickel-Plated Brass Construction: Offers superior corrosion resistance and professional-grade durability for indoor and outdoor RF applications.

• Premium PTFE Dielectric: Provides high thermal stability and maintains consistent electrical performance across its operating range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in laboratory, mobile, and field settings.

• Standard Compatibility: Fully compatible with all standard TNC Male connectors and SO-239 (UHF Female) ports.

Technical Summary
