TNC Male to F Female Adapter

Description

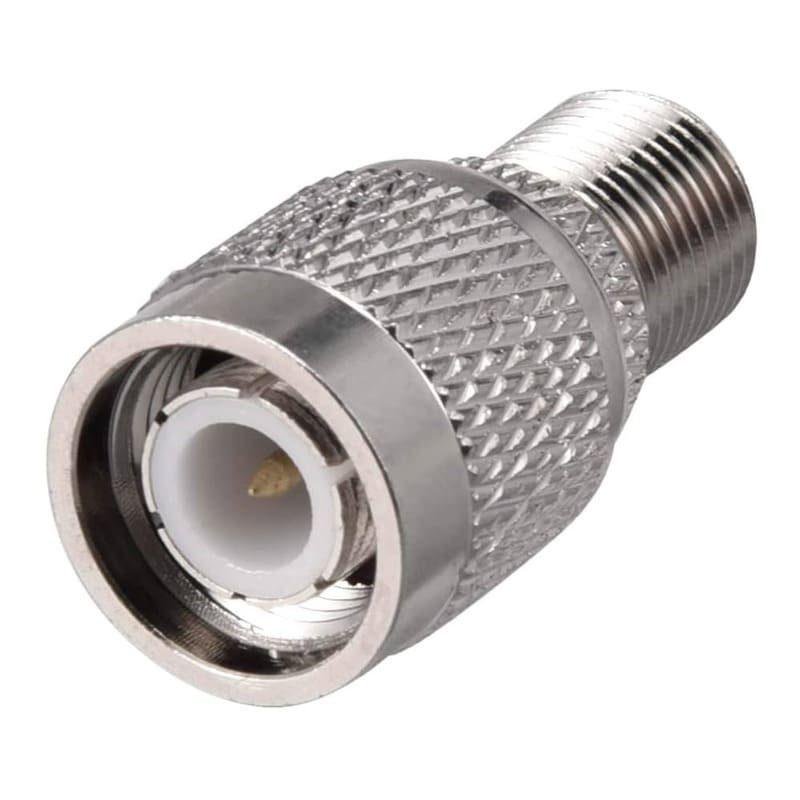

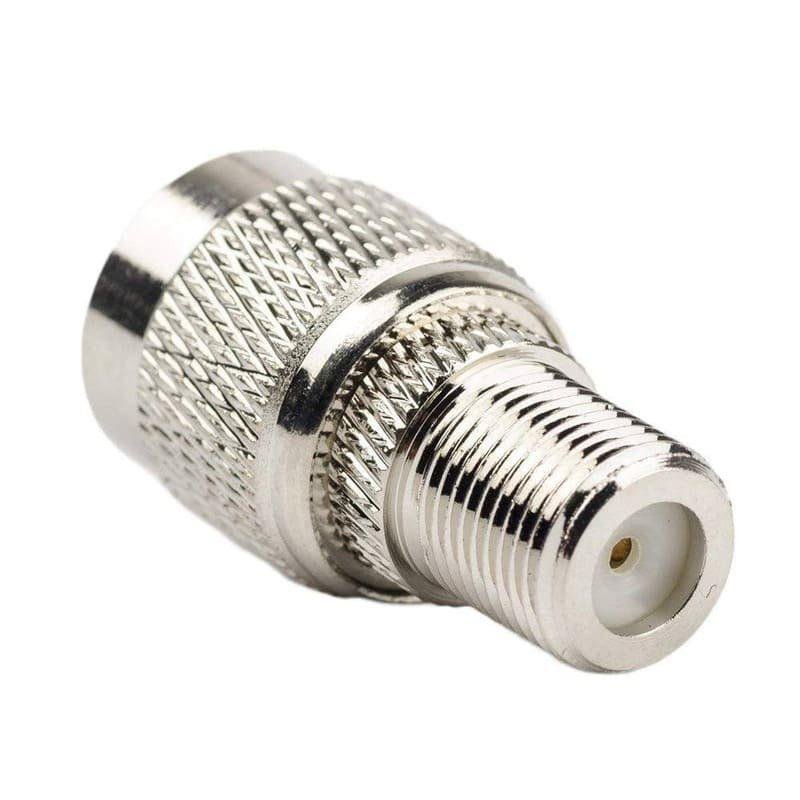

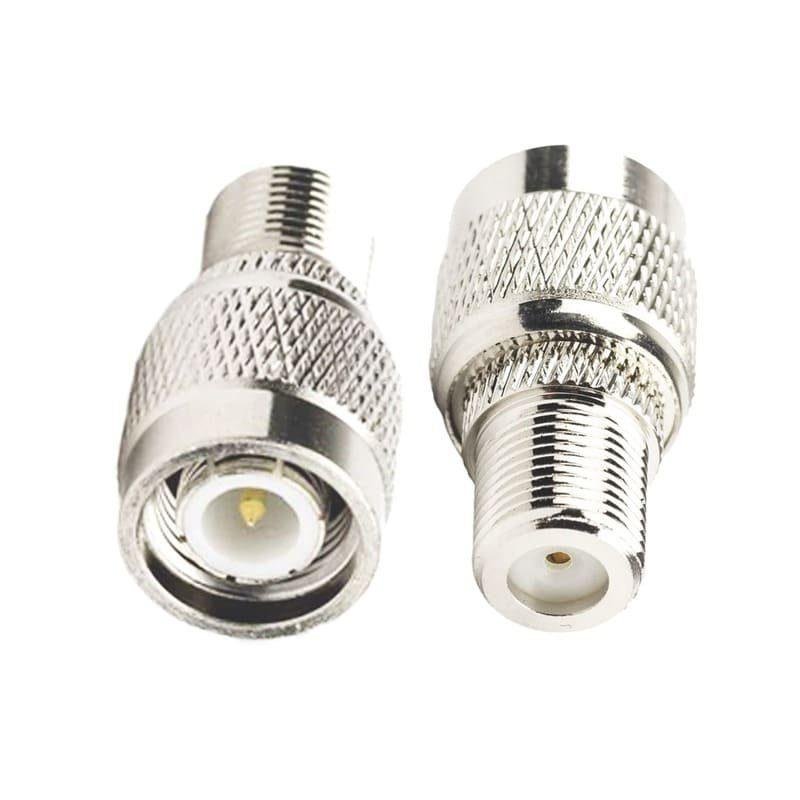

The TNC Male to F Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the vibration-resistant TNC standard and the ubiquitous F-Type interface. It features a TNC Plug (Male) on one side, utilizing a rugged threaded coupling nut and center pin, and an F-Type Jack (Female) on the other, featuring the standard 3/8-32 UNEF threaded housing and internal socket.

This adapter is indispensable for technicians and engineers who need to connect F-Type male-terminated cables?standard in CATV, satellite, and residential broadband?to TNC female ports found on professional-grade wireless routers, GPS receivers, and telecommunications test gear. While TNC connectors are typically 50 Ohm and F-Type are 75 Ohm, this precision-machined adapter is designed to minimize signal reflection and insertion loss at the junction point. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it ensures a secure mechanical and electrical link, particularly in environments where the threaded TNC connection provides superior resistance to mechanical shock compared to bayonet-style alternatives.

Key Technical Advantages

• System Integration: Enables the direct connection of standard broadband and satellite F-Type cabling to professional-grade TNC wireless equipment.

• Vibration-Proof Connectivity: The threaded TNC male interface provides a secure, stable link that resists loosening in mobile, industrial, and outdoor installations.

• Rugged Mechanical Stability: The solid brass construction and precision-machined threads are built to handle the physical stress of field deployments and frequent mating cycles.

• Superior RF Shielding: The solid metal housing provides a continuous ground path, ensuring stable performance and protecting against EMI and signal leakage.

• Maximum Conductivity: High-purity gold or silver plating on the internal center contact pin and socket ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• TNC Male to F Female Interface: Consists of a TNC Plug (with center pin and threaded coupling nut) and an F-Type Jack (with socket and external threads).

• Nickel-Plated Brass Construction: Offers superior corrosion resistance and professional-grade durability for indoor and outdoor applications.

• Premium PTFE Dielectric: Provides high thermal stability and maintains consistent electrical performance across its operating range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in laboratory, broadband, and field settings.

• Precision Threading: Ensures smooth, secure connections to prevent port damage on expensive instrumentation and networking hardware.
