Mini DIN Male to 7/16 DIN Male Adapter

Description

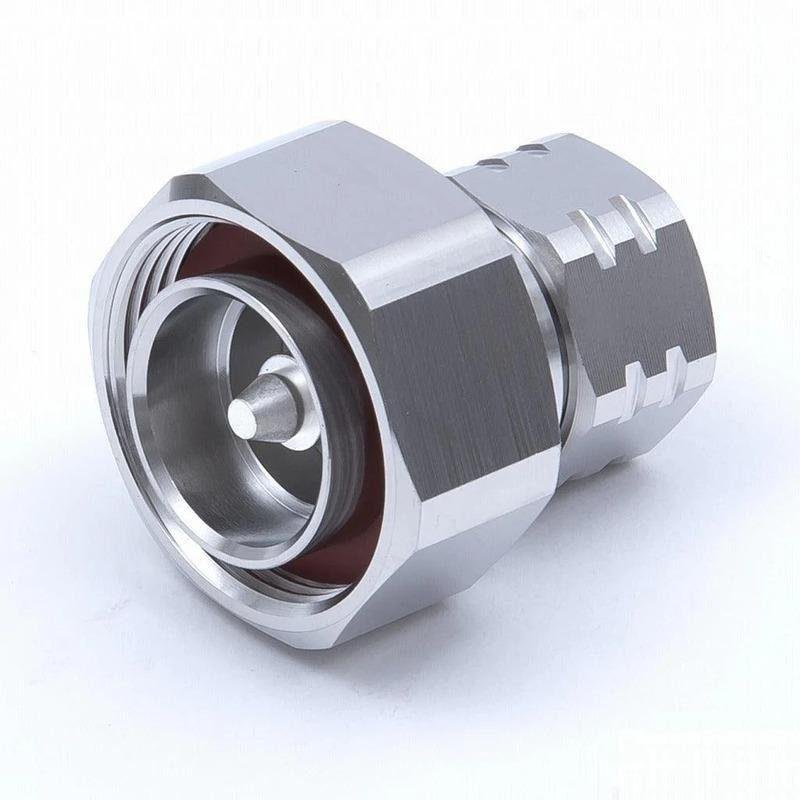

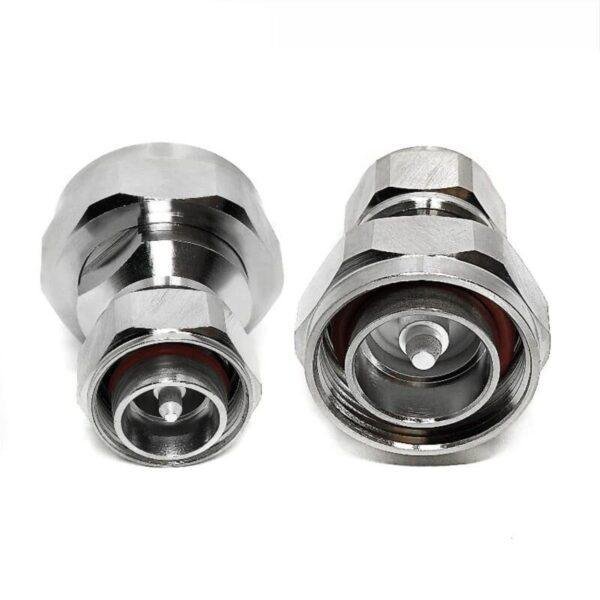

The Mini DIN (4.3-10) Male to 7/16 DIN Male Adapter is a specialized “between-series” RF component designed to provide a robust transition between two prominent threaded male standards. It features a 4.3-10 Plug (Male) on one side, representing the modernized, space-saving “Mini DIN” standard, and a 7/16 DIN Plug (Male) on the other, featuring the large-format hexagonal coupling nut known for maximum power handling and environmental sealing.

This adapter is indispensable for field engineers and technicians who need to join two female ports-typically connecting a modern 4.3-10 female output on a Remote Radio Head (RRH) directly to a legacy 7/16 DIN female filter, surge protector, or antenna. The precision-machined design ensures a constant 50 Ohm impedance and is specifically optimized to maintain ultra-low Passive Intermodulation (PIM) levels. Constructed with a heavy-duty tri-metal (white bronze) plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 6 GHz.

Key Technical Advantages

• Ultra-Low PIM Performance: Engineered to minimize passive intermodulation, which is critical for maintaining high data throughput in multi-carrier 4G and 5G networks.

• Direct Series Conversion: Provides a seamless, low-loss transition between Mini DIN and 7/16 DIN standards, eliminating the need for intermediate patch cables.

• Vibration-Proof Dual Threading: Both interfaces utilize threaded coupling mechanisms, ensuring a secure connection that resists loosening under physical shock or extreme tower conditions.

• Superior RF Shielding: The solid brass construction and tri-metal plating provide an exceptional ground path, protecting against EMI and RFI interference.

• Maximum Conductivity: High-purity silver plating on the center contact pins ensures ultra-low contact resistance and superior protection against oxidation in corrosive environments.

Key Features

• Double-Male Configuration: Features a 4.3-10 Plug (with pin) and a 7/16 DIN Plug (with pin) for joining two female ports or jacks.

• Tri-Metal / White Bronze Plating: Offers superior electrical conductivity and a non-magnetic finish that significantly reduces PIM compared to standard nickel plating.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Rugged Mechanical Design: Built to withstand high-torque installations and extreme environmental conditions in outdoor base station applications.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in professional telecommunications systems.

🔹 Applications

• RF signal interface between Mini DIN male and 7/16 DIN male connectors
• Antenna and RF cable connections in telecom systems
• Telecom base stations and wireless communication infrastructure
• High-power RF transmission systems
• RF coaxial cable assemblies and extensions
• Outdoor antenna installations and industrial RF networks
• RF test and measurement equipment
• Signal distribution systems for mobile networks
• Broadcast and microwave communication equipment
• Wireless communication and networking systems
