Mini DIN Female to N Male Adapter

Description

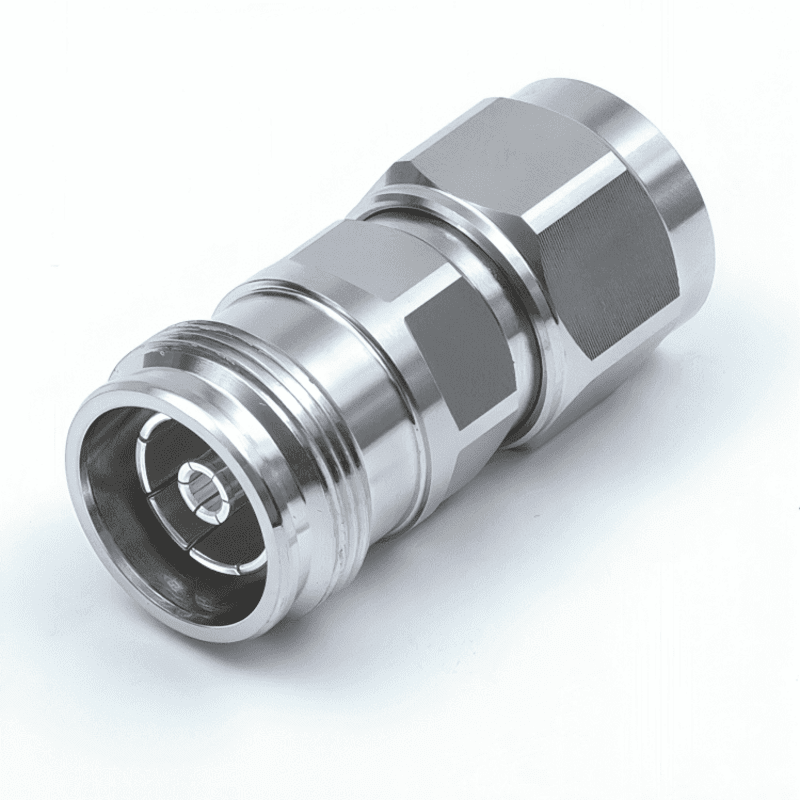

The Mini DIN (4.3-10) Female to N Male Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between two prominent connector standards. It features a 4.3-10 Jack (Female) on one side, representing the compact “Mini DIN” standard utilized in modern high-density 5G and DAS deployments, and an N-Type Plug (Male) on the other, featuring the standard threaded coupling nut and center pin.

This adapter is indispensable for telecommunications engineers who need to connect N-Type-terminated cables or test instruments to 4.3-10 male equipment ports or cable ends. The precision-machined design ensures a constant 50 Ohm impedance and is specifically optimized to maintain low Passive Intermodulation (PIM) levels, essential for signal purity in multi-carrier networks. Constructed with a heavy-duty tri-metal (white bronze) plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 6 GHz. Its rugged construction is built to withstand high-torque installations and frequent mating cycles in demanding outdoor cellular and broadcast environments.

Key Technical Advantages

• Low-PIM Optimization: Specifically engineered to minimize passive intermodulation, ensuring clean signal transmission in high-speed 4G LTE and 5G environments.

• Direct Interface Transition: Enables seamless interoperability between the latest 4.3-10 (Mini DIN) small cell hardware and standard N-Type professional equipment and cables.

• Superior RF Shielding: The solid brass construction and tri-metal plating provide an exceptional ground path, protecting against EMI and signal leakage across high-frequency bands.

• Rugged Mechanical Stability: The durable housing is designed to handle the mechanical stress associated with joining high-power coaxial cables in the field.

• Maximum Conductivity: High-purity silver plating on the internal center contact sockets and pins ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• 4.3-10 Female to N Male Interface: Consists of a 4.3-10 Jack (with socket) and an N-Type Plug (with pin and hex coupling nut).

• Tri-Metal / White Bronze Plating: Offers superior electrical conductivity and a non-magnetic finish that significantly reduces PIM compared to standard nickel plating.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in professional cellular and test environments.

• Precision 50 Ohm Match: Specifically engineered to match standard communication and microwave test instrumentation.

🔹 Applications:

• RF Signal Interface between Mini DIN and N Type Connectors
• Antenna & RF Cable Adaptation
• Telecom Base Stations & Infrastructure
• Wireless Communication Systems
• RF Test & Measurement Equipment
• High Power RF Transmission Systems
• RF Coaxial Cable Assemblies
• Outdoor & Industrial RF Installations
