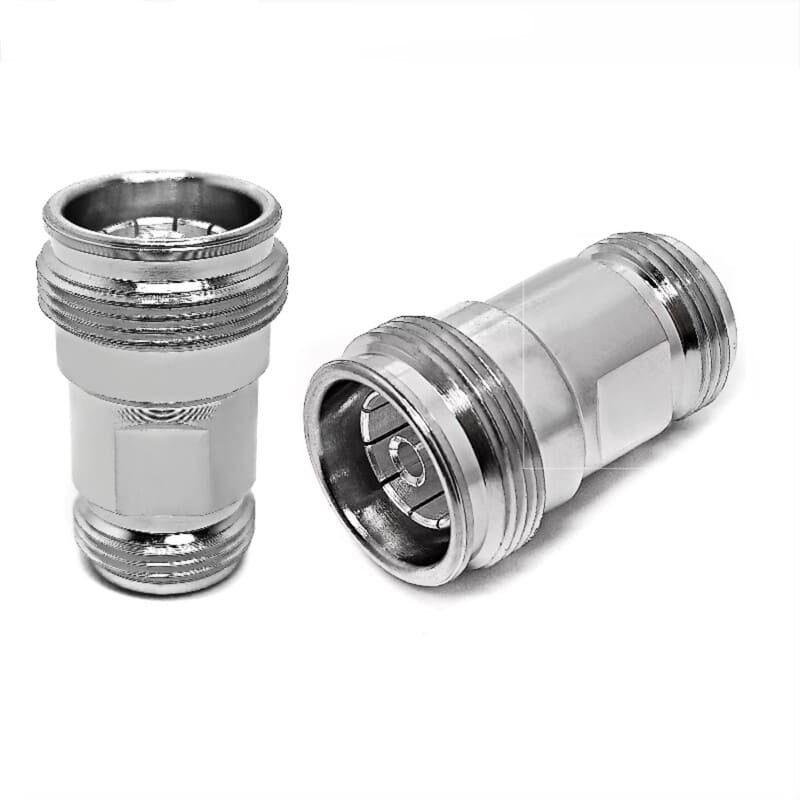

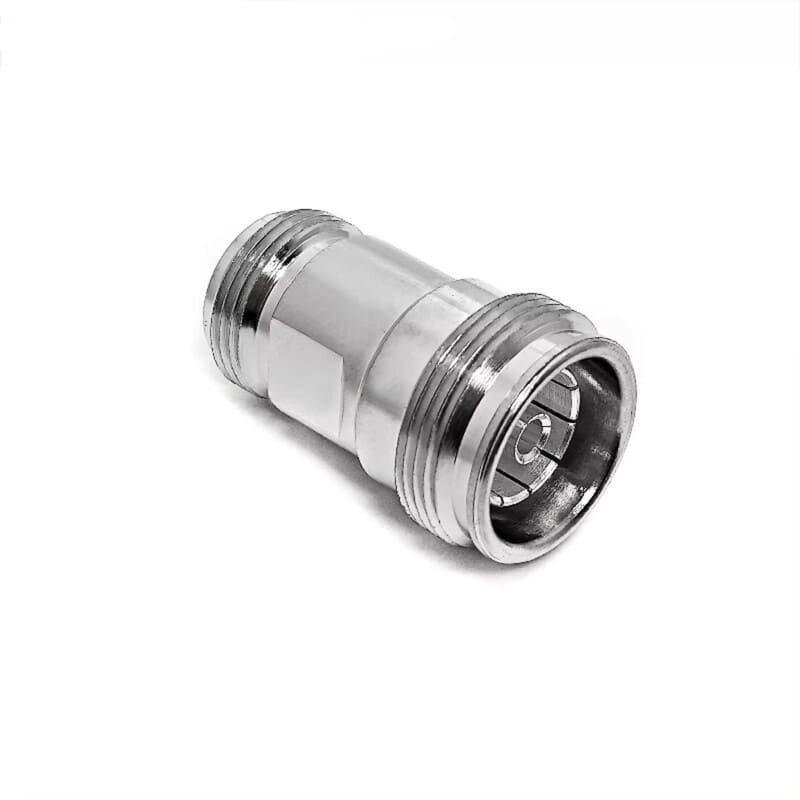

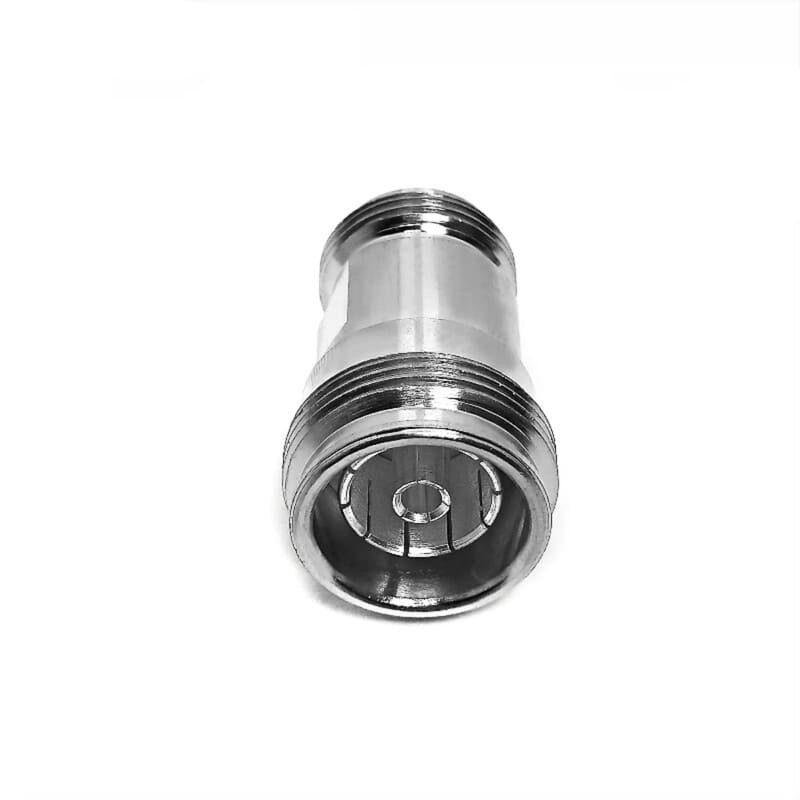

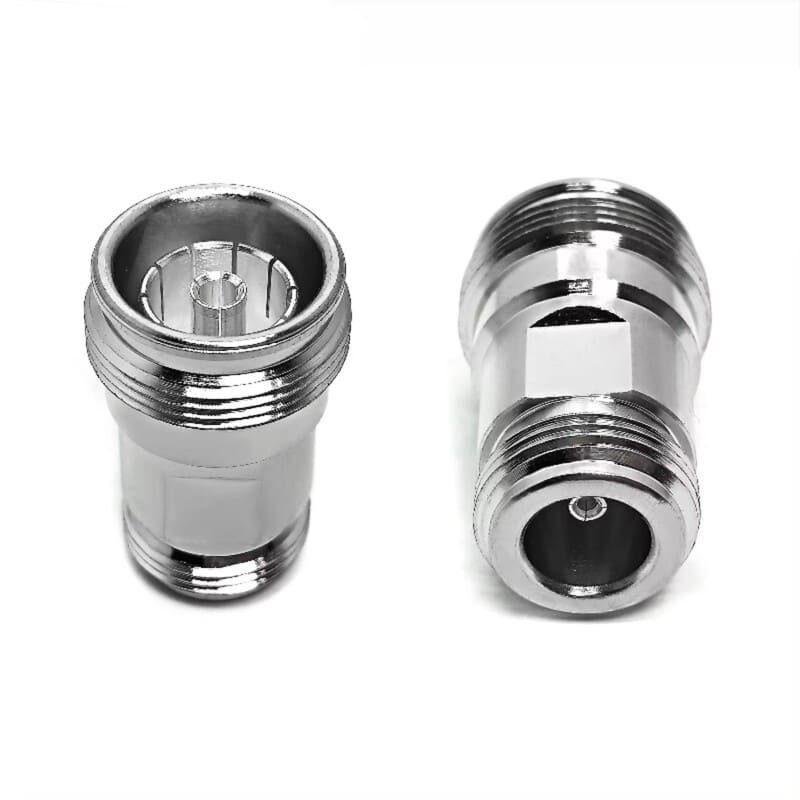

Mini DIN Female to N Female Adapter

Description

The Mini DIN (4.3-10) Female to N Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between two prominent connector standards. It features a 4.3-10 Jack (Female) on one side, representing the compact “Mini DIN” standard utilized in modern high-density wireless deployments, and an N-Type Jack (Female) on the other, featuring the standard threaded interface used widely across wireless infrastructure and laboratory environments.

This adapter is indispensable for telecommunications engineers who need to join different cable types or interface 4.3-10 male cable ends with N-Type male connections. The precision-machined design ensures a constant 50 Ohm impedance and is specifically optimized to maintain low Passive Intermodulation (PIM) levels, which is critical for signal purity in multi-carrier networks. Constructed with a heavy-duty tri-metal (white bronze) plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 6 GHz. Its dual-female configuration acts as a high-quality coupler, ideal for both laboratory testing and long-term outdoor installations.

Key Technical Advantages

• Low-PIM Optimization: Specifically engineered to minimize passive intermodulation, ensuring clean signal transmission in high-speed 4G LTE and 5G environments.

• Modern Interface Integration: Enables seamless interoperability between the latest 4.3-10 (Mini DIN) small cell hardware and standard N-Type professional equipment.

• Superior RF Shielding: The solid brass construction and tri-metal plating provide an exceptional ground path, protecting against EMI and signal leakage across high-frequency bands.

• Rugged Mechanical Stability: The durable housing is designed to handle the mechanical stress associated with joining different sizes of coaxial cables in the field.

• Maximum Conductivity: High-purity silver plating on the internal center contact sockets ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• 4.3-10 Female to N Female Interface: Consists of a 4.3-10 Jack (with socket) and an N-Type Jack (with socket) for joining two male plugs.

• Tri-Metal / White Bronze Plating: Offers superior electrical conductivity and a non-magnetic finish that significantly reduces PIM compared to standard nickel plating.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in demanding outdoor and test environments.

• Precision 50 Ohm Match: Specifically engineered to match standard communication and microwave test instrumentation.

🔹 Applications:

• RF Signal Interface between Mini DIN and N Type Connectors
• Antenna & RF Cable Adaptation
• Telecom Base Stations & Infrastructure
• Wireless Communication Systems
• RF Test & Measurement Equipment
• High Power RF Transmission Systems
• RF Coaxial Cable Assemblies
• Outdoor & Industrial RF Installations
