N Male to F Female Adapter

Description

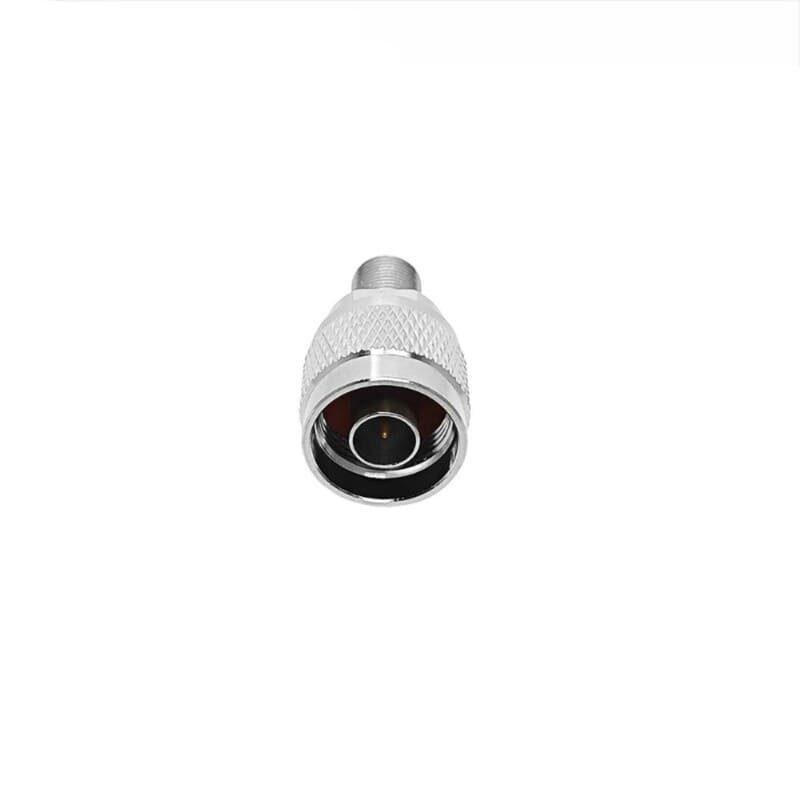

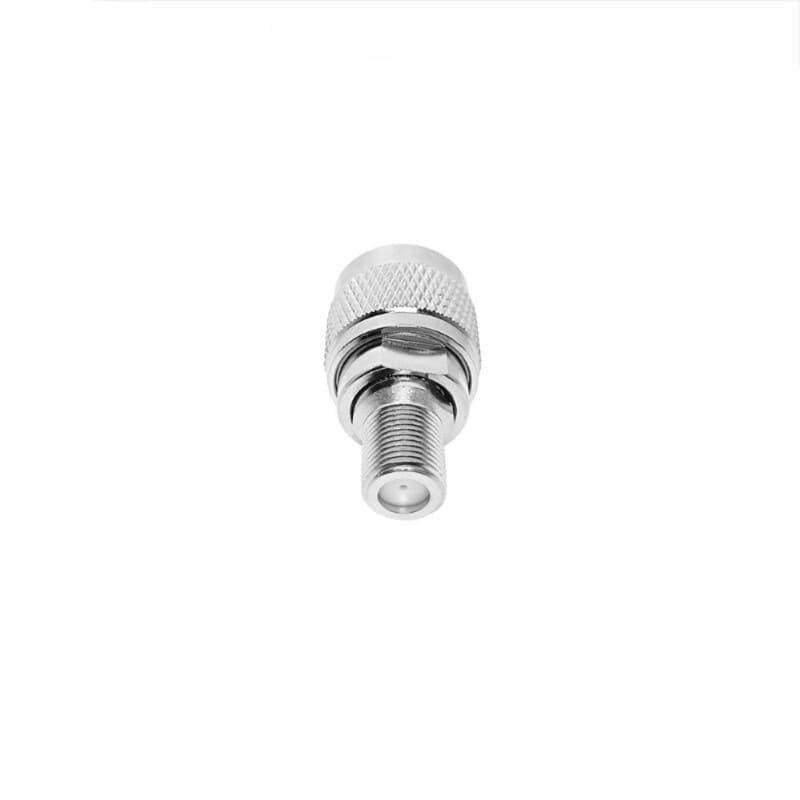

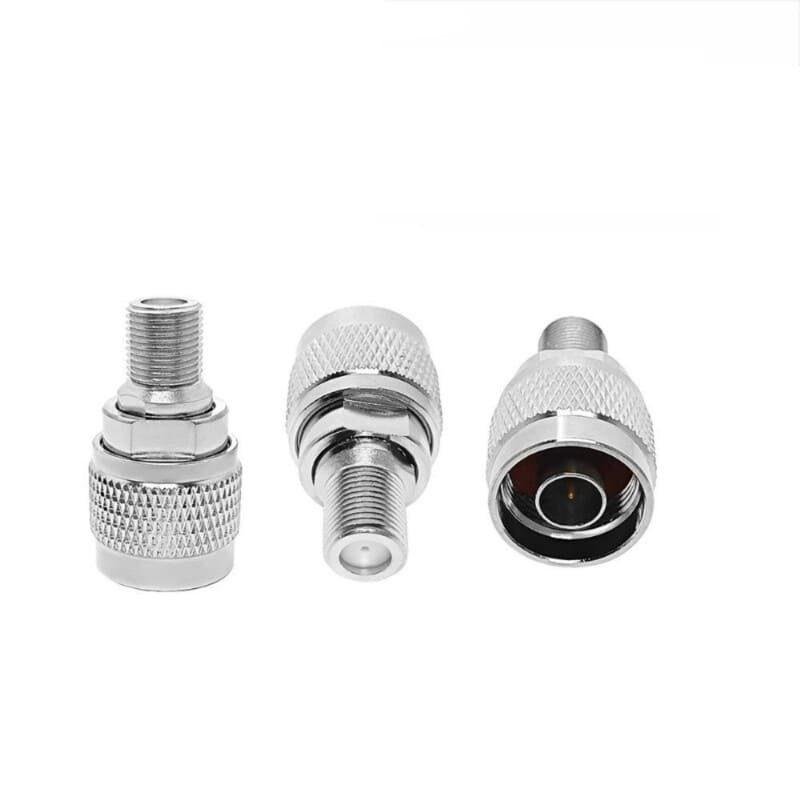

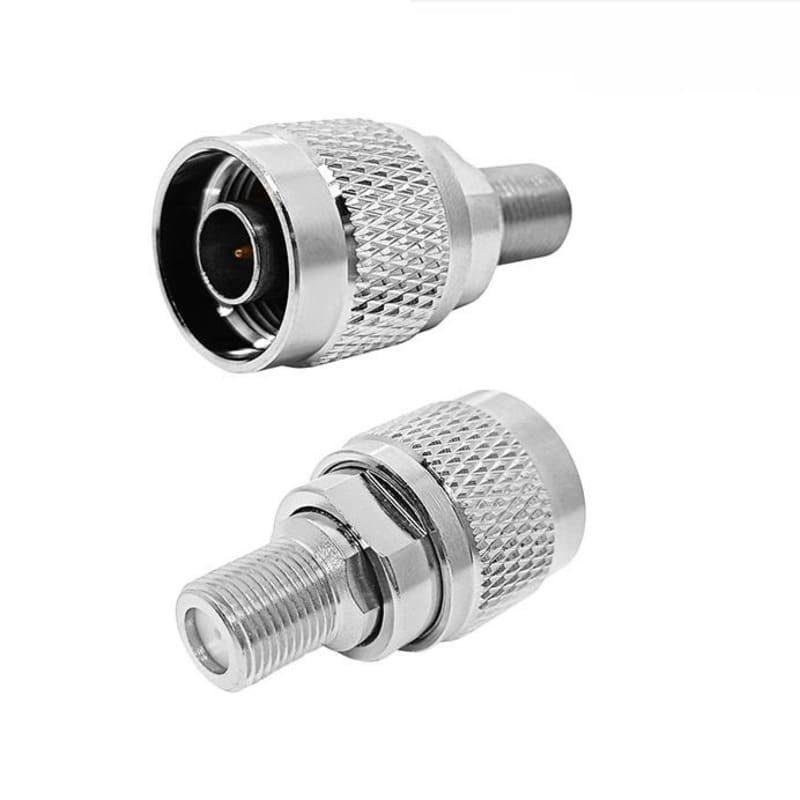

The N Male to F Female Adapter is a specialized “between-series” RF component designed to provide a reliable transition between two distinct connector standards. It features an N-Type Plug (Male) on one side, utilizing the heavy-duty threaded coupling nut and center pin common in professional wireless and cellular systems, and an F-Type Jack (Female/SO-239) on the other, featuring the standard fine-threaded external interface found on cable television and satellite cabling.

This adapter is indispensable for technicians and engineers who need to connect standard F-Type (RG6/RG11) cable assemblies to N-Type female ports found on professional-grade antennas, signal boosters, or base stations. While the N-Type interface is natively 50 Ohm and the F-Type is natively 75 Ohm, this precision-machined adapter is designed to minimize signal loss and reflections during the transition. Constructed with a durable nickel-plated brass body and PTFE (Teflon) insulation, it ensures stable mechanical and electrical performance in both residential broadband setups and light industrial telecommunications environments.

Key Technical Advantages

• Cross-Standard Connectivity: Enables the direct connection of standard F-Type male cables to professional N-Type female ports on high-power RF hardware.

• Rugged Mechanical Construction: The solid brass body and heavy-duty N-Type coupling nut provide significant durability compared to standard consumer adapters.

• Superior RF Shielding: The continuous metal housing ensures excellent ground continuity, protecting the signal path from EMI and RFI ingress.

• Precision-Machined Threads: Features high-quality threading on both interfaces to ensure a smooth, secure connection that prevents port damage during high-torque installations.

• Optimal Conductivity: High-grade plating on the center contact pin and internal socket ensures low contact resistance and long-term protection against oxidation.

Key Features

• N Male to F Female Interface: Consists of an N-Type Plug (with pin and hex/knurled nut) and an F-Type Jack (with socket and external threads).

• Nickel-Plated Brass Body: Offers superior corrosion resistance and professional-grade durability for indoor and outdoor applications.

• Premium PTFE Dielectric: Provides high thermal stability and consistent electrical properties across the operating frequency range.

• Standard 50/75 Ohm Transition: Specifically designed to bridge the gap between 50 Ohm N-Type systems and 75 Ohm broadband components.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in professional test and distribution systems.

Technical Summary
