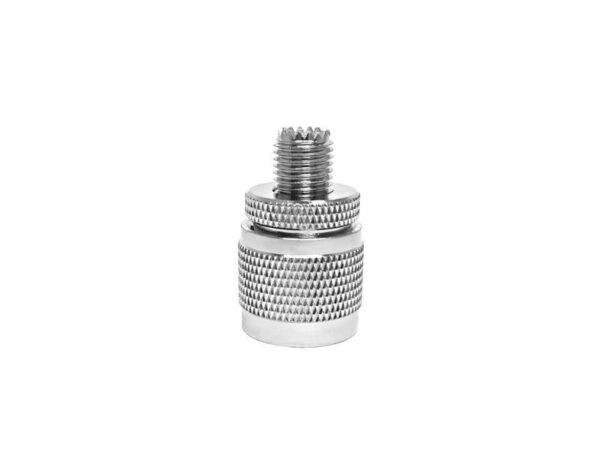

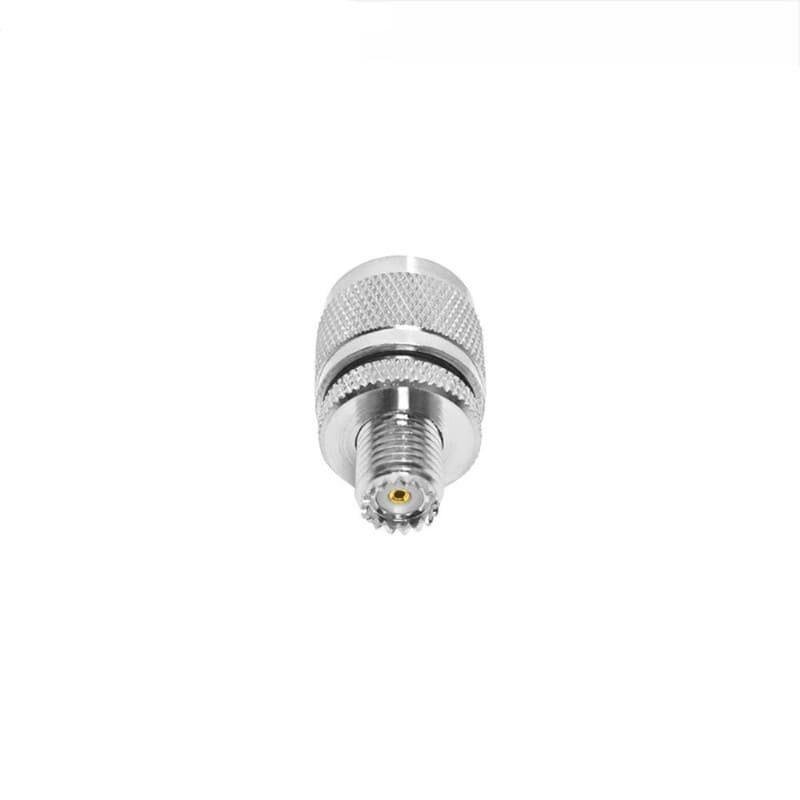

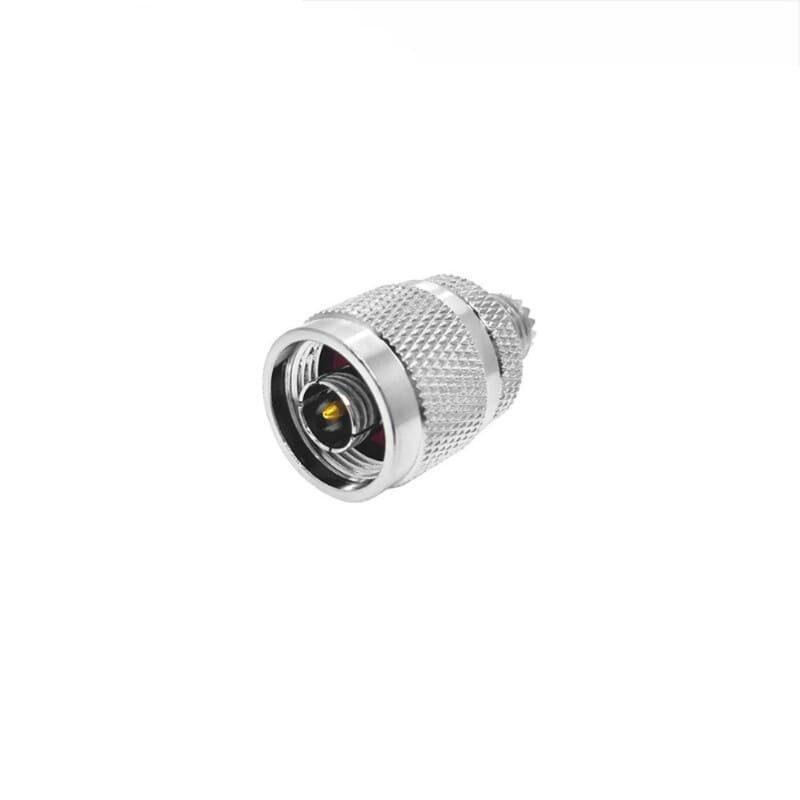

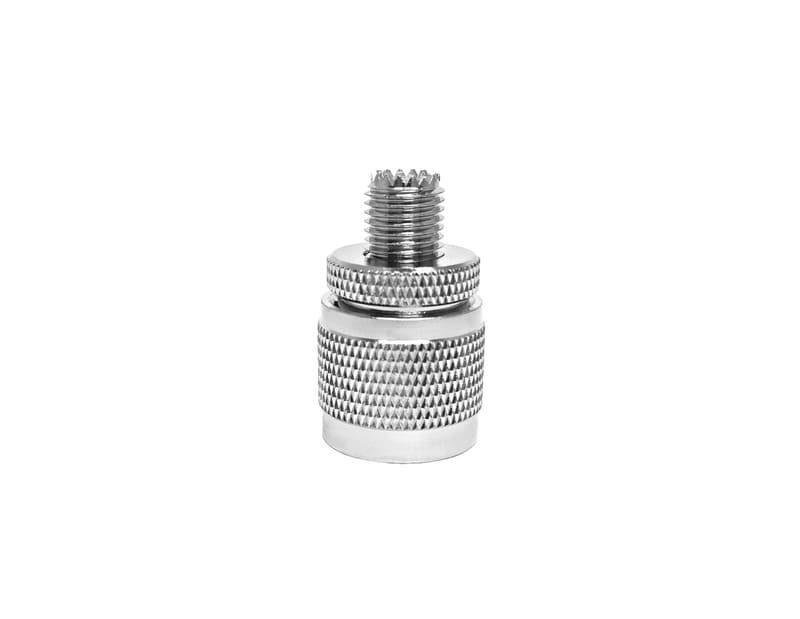

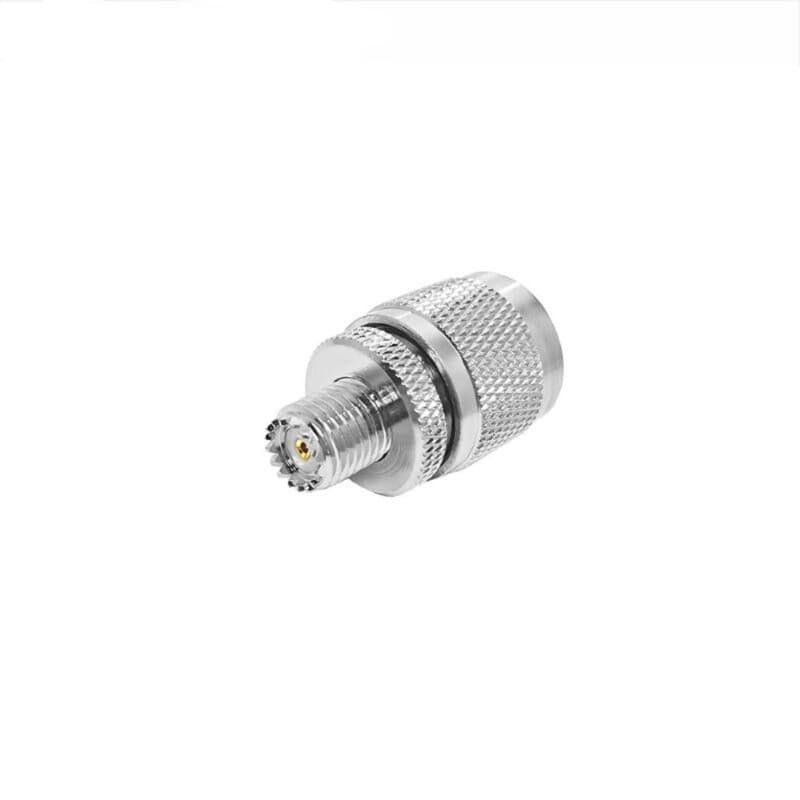

N Male to Mini UHF Female Adapter

Description

The N Male to Mini UHF Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the large-format N-Type standard and the compact Mini UHF interface. It features an N-Type Plug (Male) on one side, utilizing a standard threaded coupling nut and center pin, and a Mini UHF Jack (Female) on the other, featuring the fine-threaded external interface and internal socket characteristic of the Mini UHF series.

This adapter is indispensable for technicians and engineers who need to interface standard N-Type female equipment ports with Mini UHF male cable assemblies, which are frequently used in vehicle-mounted mobile radios and space-constrained wireless applications. While the N-Type side is built for heavy-duty microwave performance, the Mini UHF side provides a secure, compact connection for frequencies typically up to 2.5 GHz. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it maintains reliable mechanical and electrical performance across a wide range of mobile and stationary environments.

Key Technical Advantages

• Compact Interface Integration: Enables the direct connection of compact Mini UHF cables to professional-grade N-Type infrastructure.

• Rugged Mechanical Construction: The solid brass body and heavy-duty N-Type coupling nut provide exceptional durability compared to standard consumer adapters.

• Superior RF Shielding: The continuous metal housing ensures excellent ground continuity, protecting the signal path from EMI and RFI ingress.

• Precision-Machined Threads: Features high-quality threading on both interfaces to ensure a smooth, secure connection and prevent damage during installation.

• Optimal Conductivity: High-grade plating on the center contact pin and internal socket ensures low contact resistance and long-term protection against oxidation.

Key Features

• N Male to Mini UHF Female Interface: Consists of an N-Type Plug (with pin and hex/knurled nut) and a Mini UHF Jack (with socket and external threads).

• Nickel-Plated Brass Body: Offers superior corrosion resistance and professional-grade durability for indoor and outdoor applications.

• Premium PTFE Dielectric: Provides high thermal stability and maintains consistent electrical properties across the operating frequency range.

• Vibration Resistance: Threaded coupling on both ends ensures the connection remains secure in high-vibration mobile and automotive environments.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in field and laboratory use.

🔹 Product Applications

• RF signal interface between N male and Mini UHF female connectors
• Antenna and RF cable connections in telecom and radio systems
• RF coaxial cable assemblies and extensions
• Mobile radio and two-way communication systems
• Signal distribution in communication networks
• Amateur radio and RF communication setups
• Outdoor antenna installations and RF systems
• RF test and measurement equipment
• Industrial RF and communication networks
• General RF connectivity in high-frequency applications
