Description

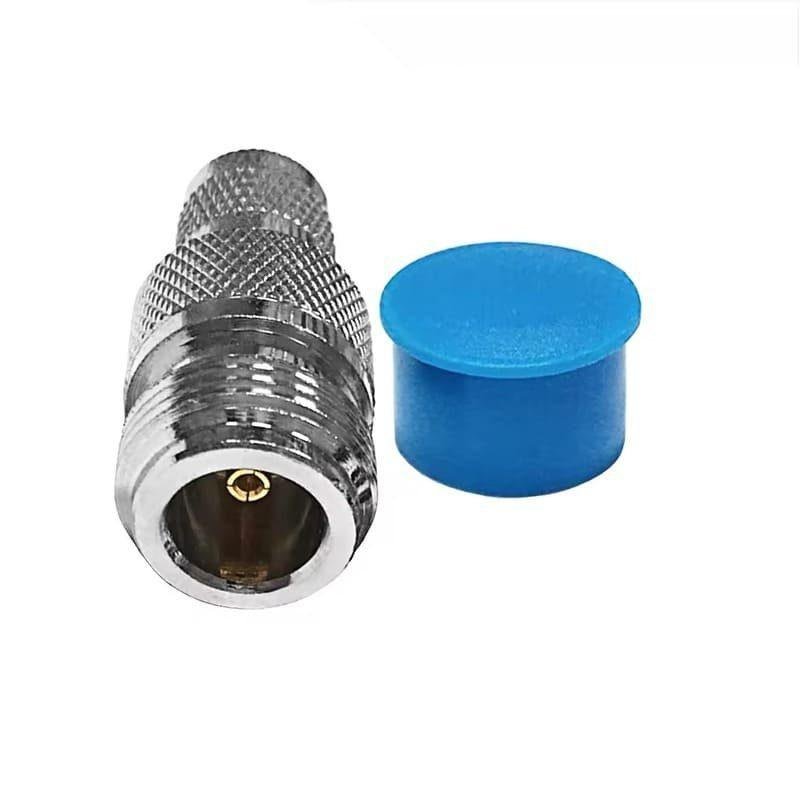

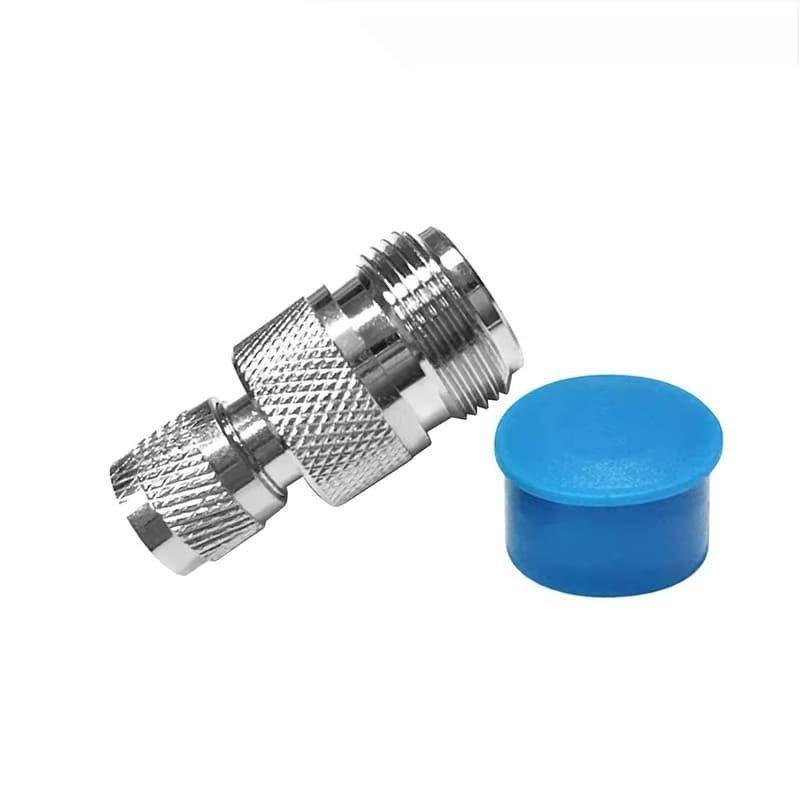

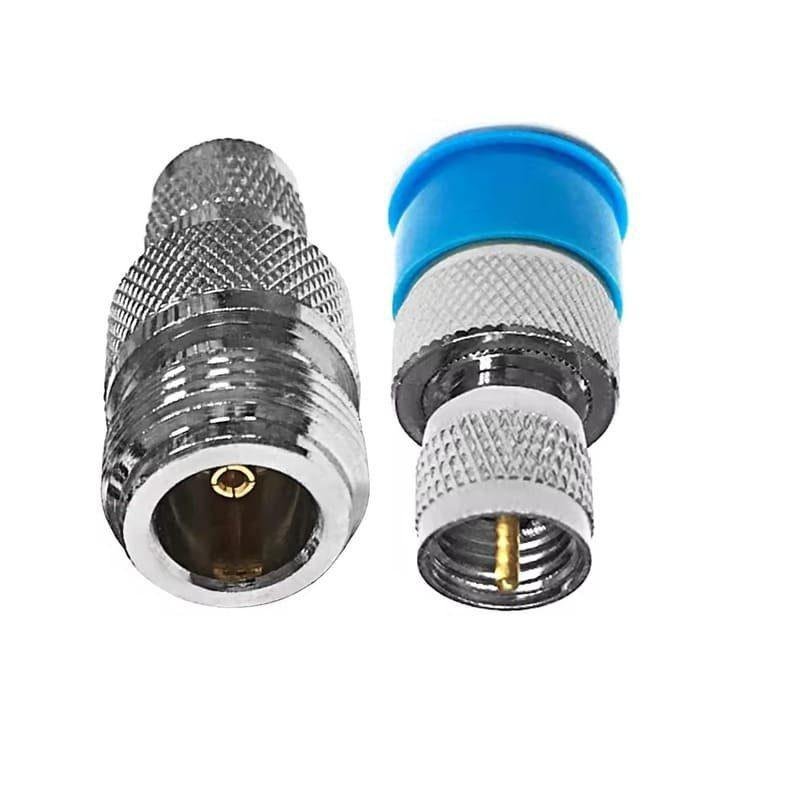

The N Female to Mini UHF Male Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the large-format N-Type standard and the compact Mini UHF interface. It features an N-Type Jack (Female) on one side, utilizing the standard external threaded interface common in wireless infrastructure, and a Mini UHF Plug (Male) on the other, featuring a fine-threaded coupling nut and center pin.
This adapter is indispensable for technicians and engineers who need to connect standard N-Type male cable assemblies to Mini UHF female ports, which are frequently found on mobile radio transceivers and specialized vehicle-mounted antennas. While the N-Type side is built for professional microwave performance, the Mini UHF side provides a secure, compact connection for frequencies typically up to 2.5 GHz. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it maintains reliable mechanical and electrical performance in demanding mobile and stationary environments.
Key Technical Advantages
-
Compact Interface Integration: Enables the direct connection of professional N-Type cables to compact Mini UHF equipment and ports.
-
Rugged Mechanical Construction: The solid brass body provides exceptional durability and mechanical stability compared to standard commercial adapters.
-
Superior RF Shielding: The continuous metal housing ensures excellent ground continuity, protecting the signal path from EMI and RFI ingress.
-
Precision-Machined Threads: Features high-quality threading on both interfaces to ensure a smooth, secure connection and prevent port damage during installation.
-
Optimal Conductivity: High-grade plating on the internal contact socket and center pin ensures low contact resistance and long-term protection against oxidation.
Key Features
-
N Female to Mini UHF Male Interface: Consists of an N-Type Jack (with socket and external threads) and a Mini UHF Plug (with center pin and threaded coupling nut).
-
Nickel-Plated Brass Body: Offers superior corrosion resistance and professional-grade durability for indoor and outdoor applications.
-
Premium PTFE Dielectric: Provides high thermal stability and maintains consistent electrical properties across the operating frequency range.
-
Vibration Resistance: Threaded coupling on both ends ensures the connection remains secure in high-vibration automotive and industrial environments.
-
Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in field and laboratory use.
🔹 Product Applications
- RF signal interface between N female and Mini UHF male connectors
- Antenna and RF cable connections in telecom and radio systems
- RF coaxial cable assemblies and extensions
- Mobile radio and two-way communication systems
- Signal distribution in communication networks
- Amateur radio and RF communication setups
- Outdoor antenna installations and RF systems
- RF test and measurement equipment
- Industrial RF and communication networks
- General RF connectivity in high-frequency applications
