N Male to UHF Male Adapter

Description

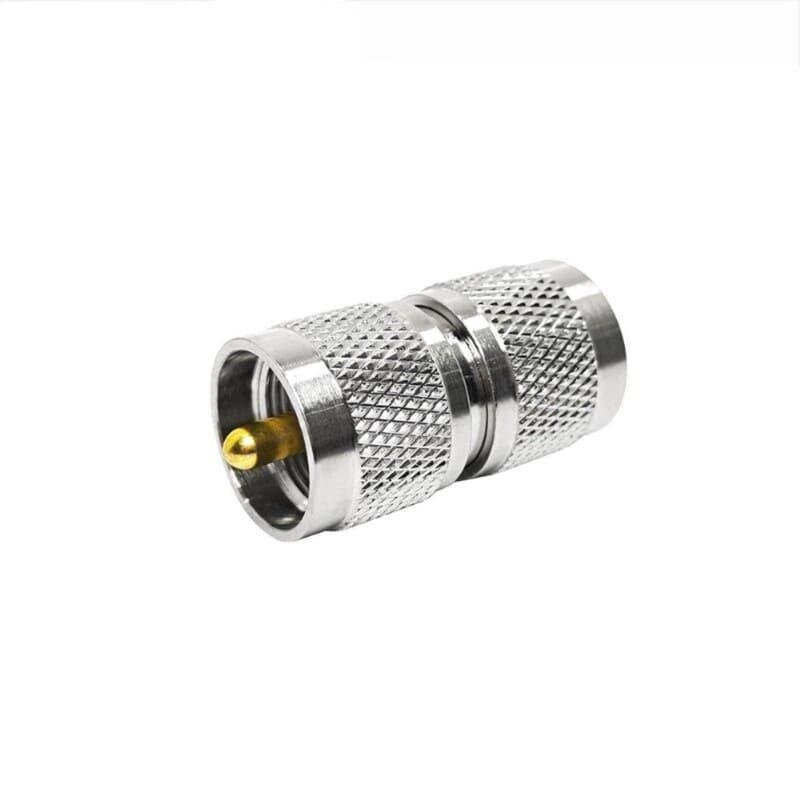

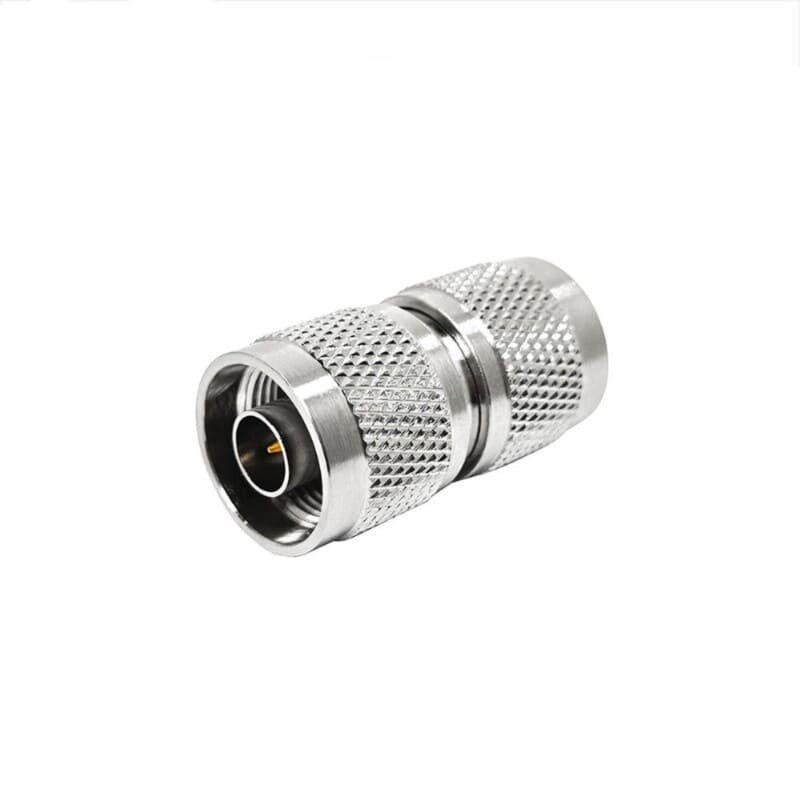

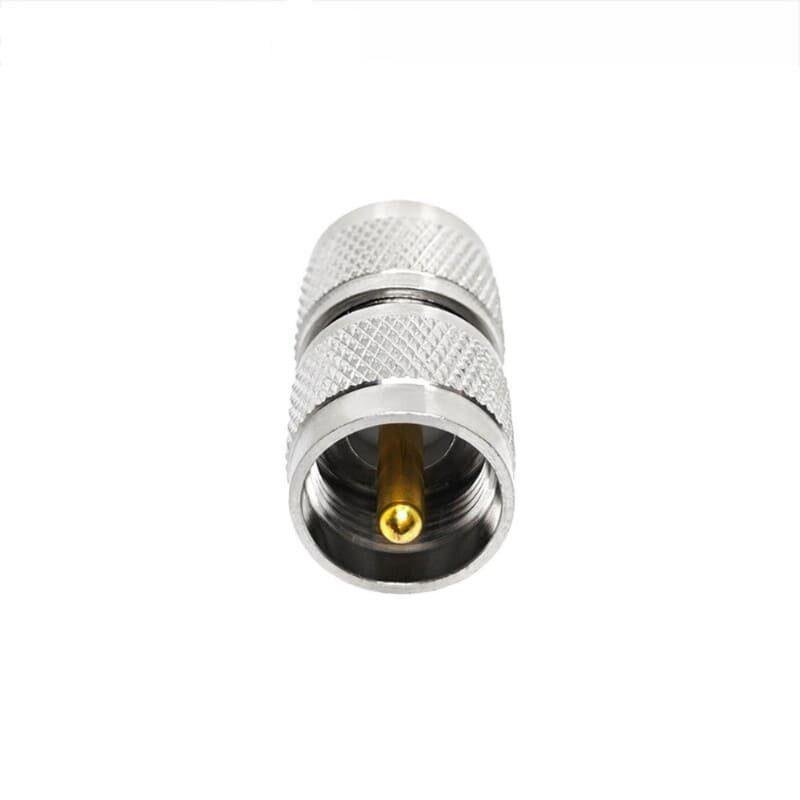

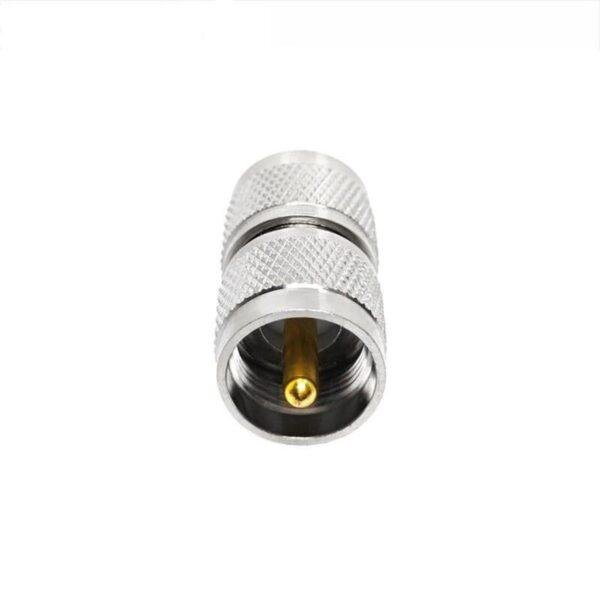

The N Male to UHF Male Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the high-precision N-Type standard and the widely utilized UHF interface. It features an N-Type Plug (Male) on one side, utilizing a standard threaded coupling nut and center pin, and a UHF Plug (Male/PL-259) on the other, featuring the classic large-format threaded coupling nut and center pin.

This adapter is indispensable for technicians and engineers who need to join two female ports?typically connecting an N-Type female output on professional wireless equipment directly to a UHF female (SO-239) port on legacy hardware, antennas, or filters. While the N-Type interface is a precision 50 Ohm connector rated for microwave frequencies, the UHF side provides a rugged connection for high-power applications typically below 300 MHz. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it maintains reliable mechanical and electrical contact in both mobile and stationary installations.

Key Technical Advantages

• Direct Series Conversion: Provides a seamless, low-loss transition between professional N-Type and traditional UHF standards, eliminating the need for intermediate cable jumpers.

• Rugged Mechanical Stability: The solid brass construction and dual threaded coupling nuts ensure a stable connection capable of withstanding physical stress, torque, and vibration.

• Superior RF Grounding: The solid metal housing provides a continuous ground path, ensuring stable performance and protecting against signal leakage.

• Maximum Conductivity: High-purity silver or gold plating on both center contact pins ensures low contact resistance and long-term protection against oxidation.

• Reliable Power Handling: Built to handle the high power requirements typically associated with amateur radio, marine, and mobile broadcast deployments.

Key Features

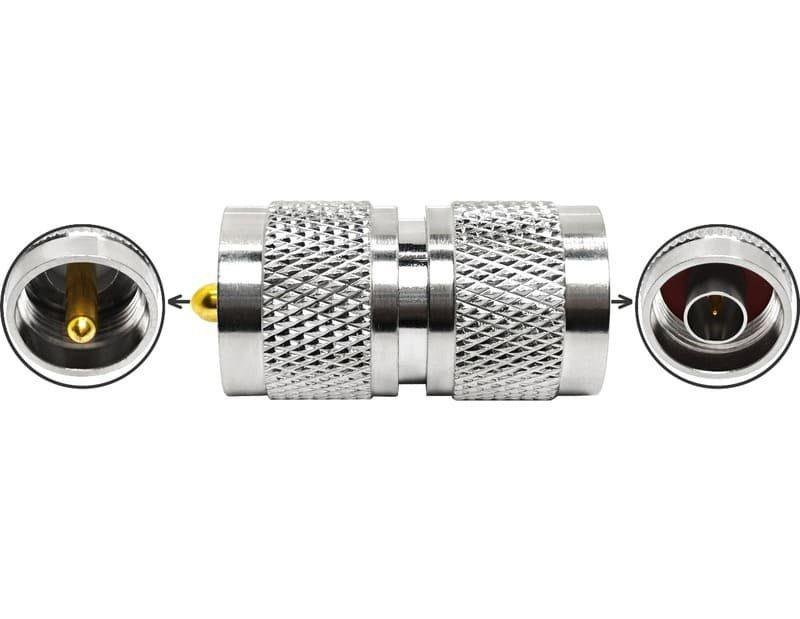

• N Male to UHF Male Interface: Consists of an N-Type Plug (with pin and hex/knurled nut) and a UHF Plug (with pin and threaded coupling nut).

• Double-Male Configuration: Designed for joining two female ports (N-Type Female to SO-239) in a single, compact housing.

• Nickel-Plated Brass Body: Offers superior corrosion resistance and professional-grade durability for indoor and outdoor applications.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its operating range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in field and laboratory environments.

Technical Summary
