N Male to TNC Male Adapter

Description

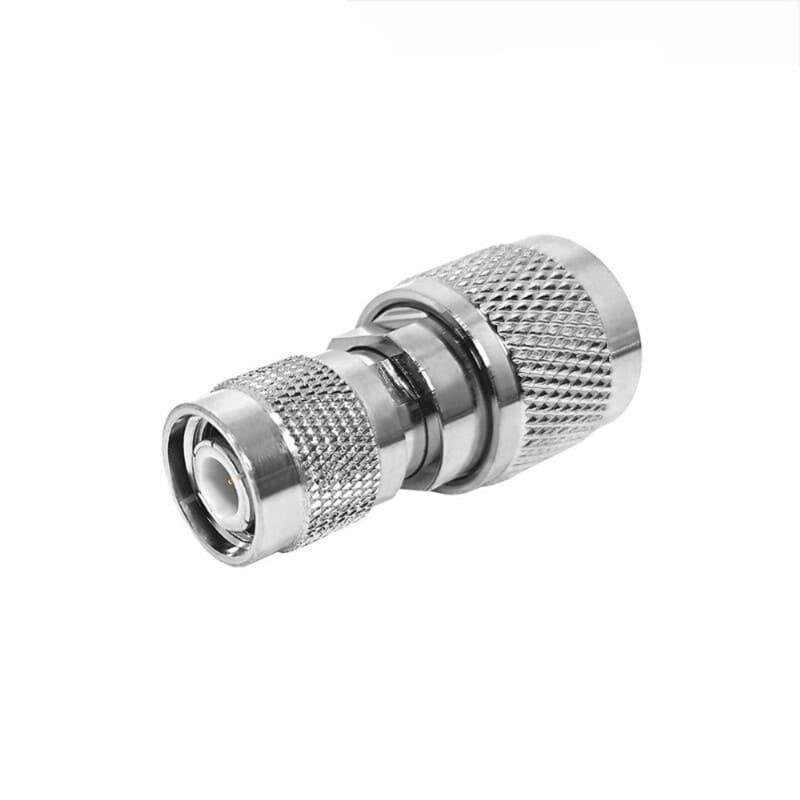

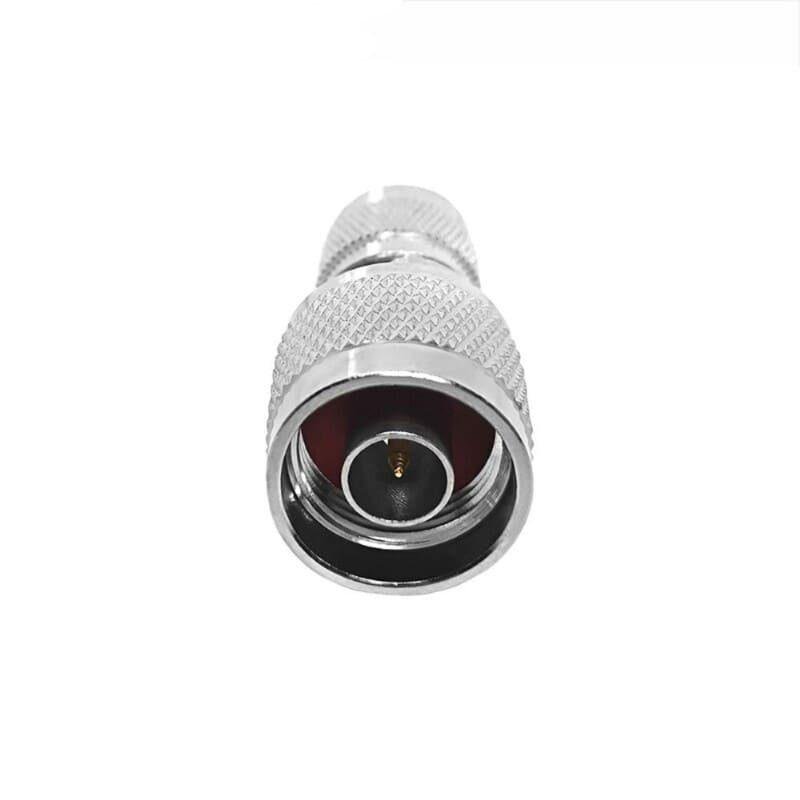

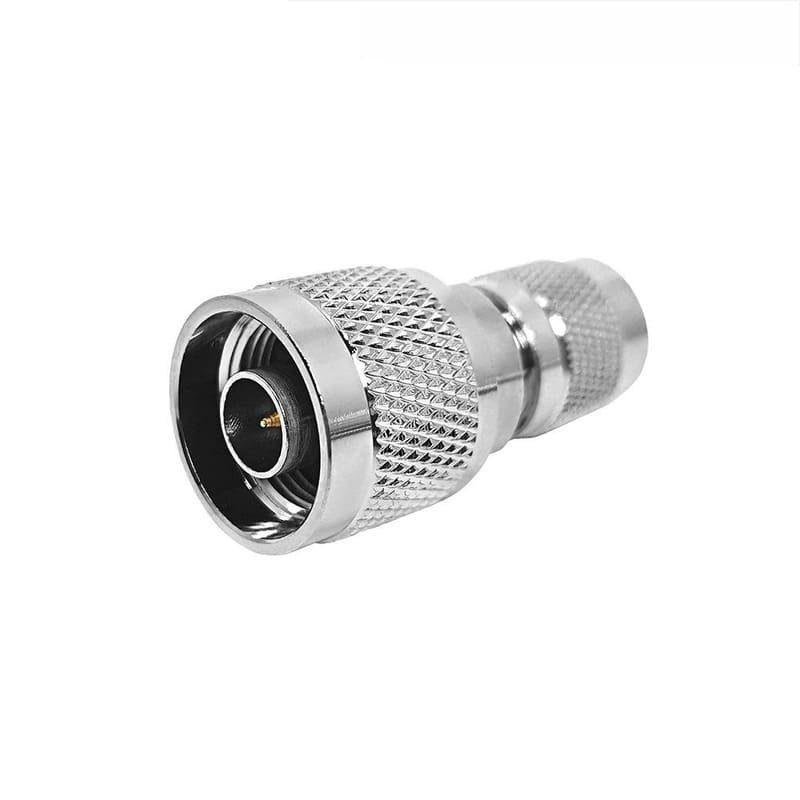

The N Male to TNC Male Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between two prominent threaded connector standards. It features an N-Type Plug (Male) on one side, utilizing a standard threaded coupling nut and center pin, and a TNC Plug (Male) on the other, featuring a threaded version of the BNC interface with its own coupling nut and center pin.

This adapter is indispensable for telecommunications engineers and technicians who need to join two female ports directly?typically connecting an N-Type female output on a base station or amplifier to a TNC female port on a specialized radio or receiver. The TNC interface is specifically designed to handle high-vibration environments, making this dual-male adapter ideal for avionics, military, and industrial applications where mechanical stability is critical. Precision-machined to ensure a constant 50 Ohm impedance, it is constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, maintaining exceptional signal integrity and low VSWR up to 6 GHz.

Key Technical Advantages

• Direct Series Conversion: Provides a seamless, low-loss transition between professional N-Type and vibration-resistant TNC standards without the need for intermediate cable jumpers.

• Vibration-Proof Connectivity: The threaded TNC male interface ensures a secure, stable connection that resists loosening under physical shock or extreme movement.

• Superior RF Shielding: The solid brass construction and high-quality plating provide a continuous ground path, ensuring maximum protection against EMI and RFI interference.

• Rugged Mechanical Stability: The durable housing and dual threaded coupling nuts are designed to handle mechanical torque and physical stress in field environments.

• Maximum Conductivity: High-purity silver or gold plating on both internal center contact pins ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• N Male to TNC Male Interface: Consists of an N-Type Plug (with pin and hex/knurled nut) and a TNC Plug (with pin and threaded coupling nut).

• Double-Male Configuration: Designed for joining two female ports (N-Type Female to TNC Female) in a single, compact housing.

• Nickel-Plated Brass Construction: Offers superior electrical performance and professional-grade durability for both indoor and outdoor applications.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in high-traffic test and communication systems.
