N Male to UHF Female Adapter

Description

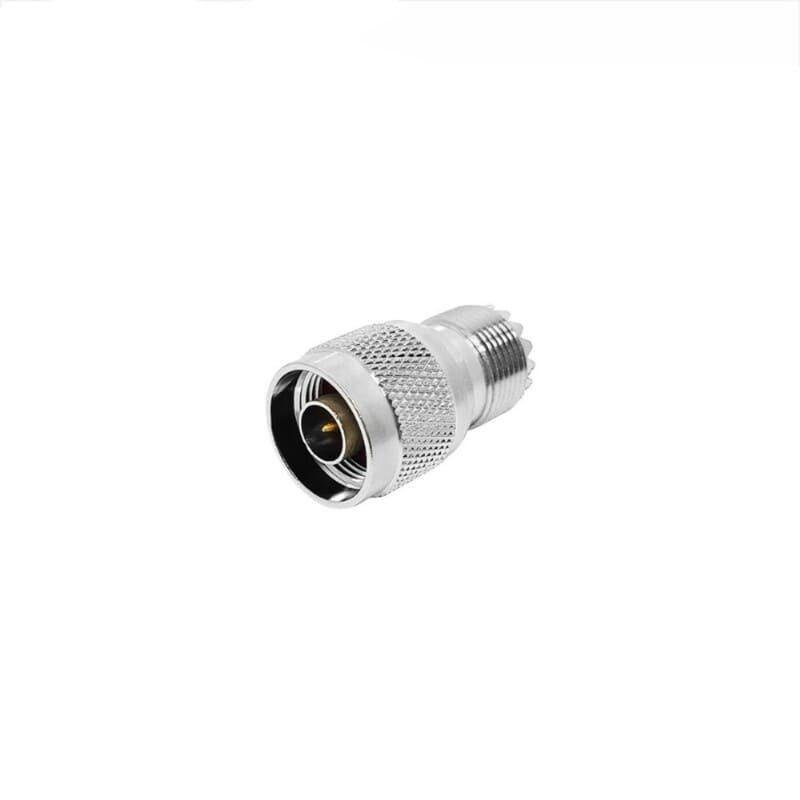

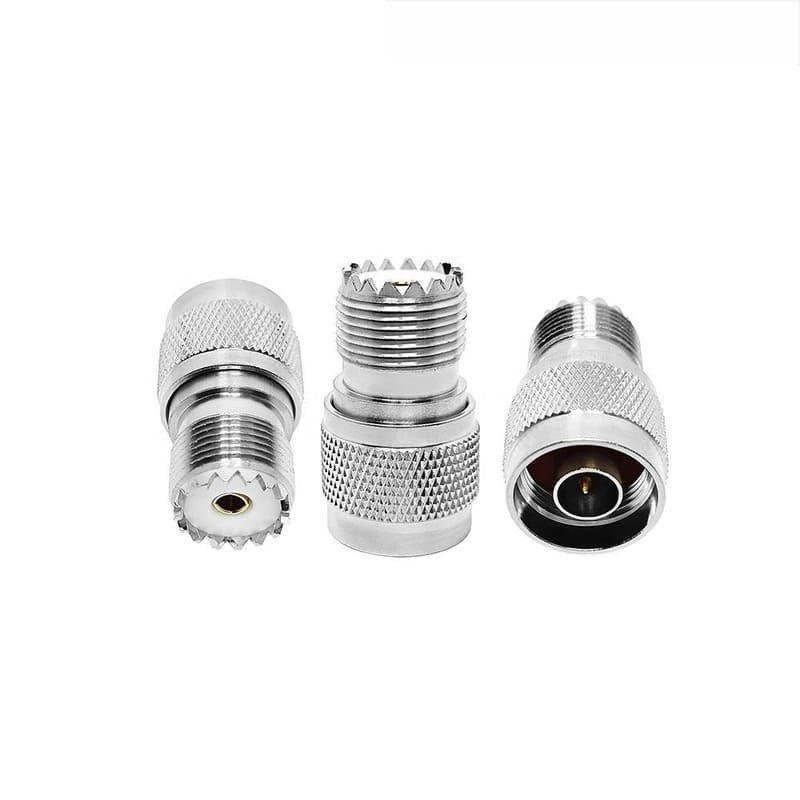

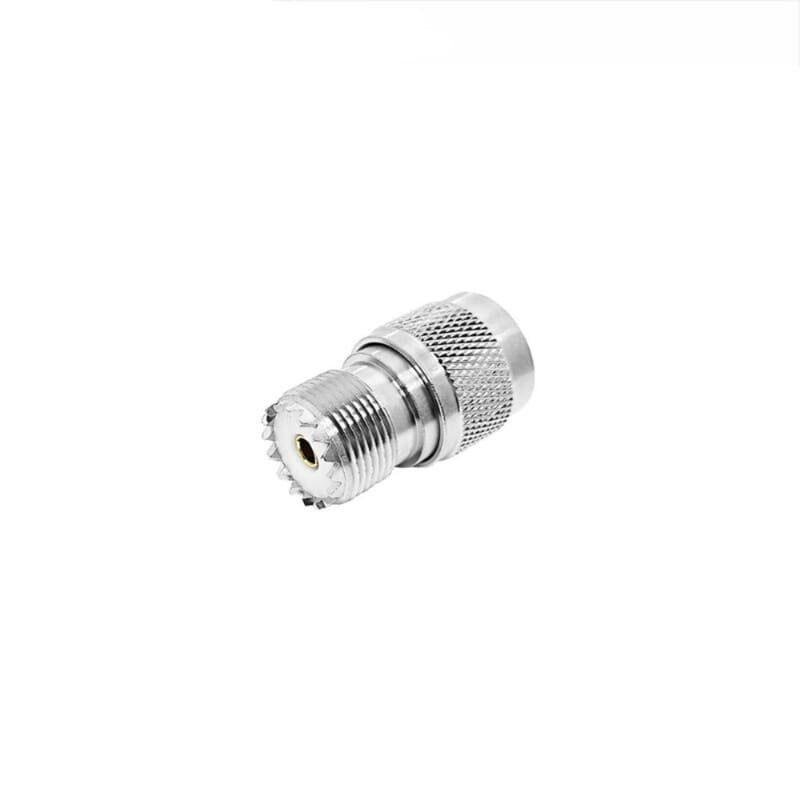

The N Male to UHF Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the high-precision N-Type standard and the widely utilized UHF interface. It features an N-Type Plug (Male) on one side, utilizing a standard threaded coupling nut and center pin, and a UHF Jack (Female/SO-239) on the other, featuring the classic large-format threaded external interface and internal socket.

This adapter is indispensable for technicians and engineers who need to connect UHF male (PL-259) cable assemblies to N-Type female equipment ports found on professional-grade signal boosters, spectrum analyzers, and base station antennas. While the N-Type interface is a precision 50 Ohm connector rated for microwave frequencies, the UHF side provides a rugged connection for high-power applications typically below 300 MHz. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it ensures stable mechanical and electrical contact in both mobile and stationary installations.

Key Technical Advantages

• Interface Compatibility: Seamlessly bridges the gap between professional N-Type infrastructure and traditional UHF-based communication hardware.

• Rugged Mechanical Construction: The solid brass body and heavy-duty N-Type coupling nut provide exceptional durability compared to standard consumer adapters.

• Superior RF Shielding: The continuous metal housing ensures excellent ground continuity, protecting the signal path from EMI and RFI ingress.

• Precision-Machined Threads: Features high-quality threading on both interfaces to ensure a smooth, secure connection and prevent port damage during installation.

• Maximum Conductivity: High-purity silver or gold plating on the center contact pin and internal socket ensures low contact resistance and long-term protection against oxidation.

Key Features

• N Male to UHF Female Interface: Consists of an N-Type Plug (with pin and hex/knurled nut) and a UHF Jack (with socket and external threads).

• Nickel-Plated Brass Body: Offers superior corrosion resistance and professional-grade durability for indoor and outdoor applications.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its operating range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in field and laboratory environments.

• Standard Compatibility: Fully compatible with all standard PL-259 (UHF Male) and N-Type Female connectors.

🔹 Applications:

• RF connector compatibility
• Antenna systems
• Radio communication
• Signal routing
• RF cable assemblies
• Wireless systems
