N Female to UHF Female Adapter

Description

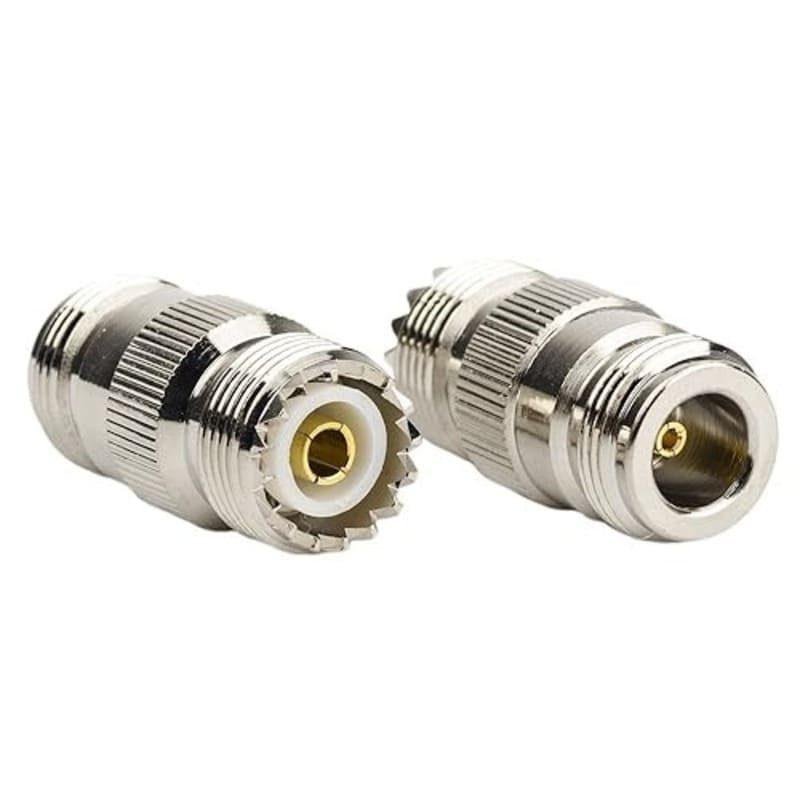

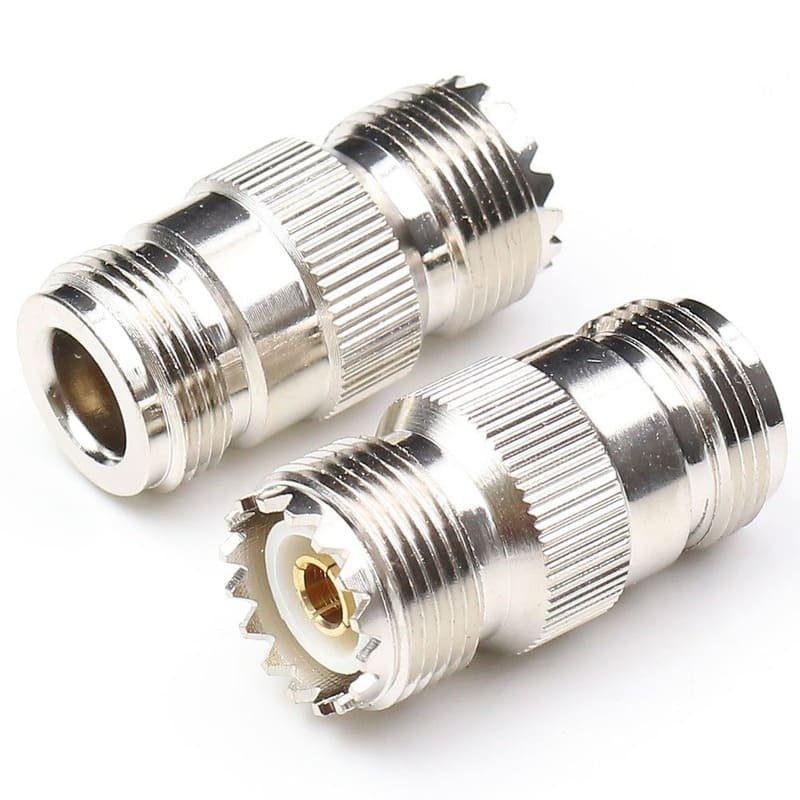

The N Female to UHF Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the high-precision N-Type standard and the widely utilized UHF interface. It features an N-Type Jack (Female) on one side, utilizing the standard threaded interface common in wireless infrastructure, and a UHF Jack (Female/SO-239) on the other, featuring the classic large-format threaded external interface and internal socket.

This adapter is indispensable for operators and technicians who need to join N-Type male cables with UHF male (PL-259) connectors. It serves as a high-quality coupler, allowing for versatile connectivity between modern 50 Ohm microwave systems and legacy high-power broadcast equipment. While the N-Type interface is a precision connector rated for microwave frequencies, the UHF side provides a rugged connection for applications typically below 300 MHz. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it maintains reliable mechanical and electrical contact in both mobile and stationary installations.

Key Technical Advantages

• Standard Interface Integration: Enables seamless interoperability between professional N-Type infrastructure and traditional UHF-based communication cable assemblies.

• Dual-Socket Coupler: Serves as a reliable link for joining two different male cable standards in a single, compact, and rugged unit.

• Rugged Mechanical Stability: The solid brass construction and threaded coupling mechanisms ensure a stable connection capable of withstanding physical stress and vibration.

• Superior RF Shielding: The solid metal housing provides a continuous ground path, ensuring stable performance and protecting against signal leakage.

• Maximum Conductivity: High-purity silver or gold plating on the internal center contact sockets ensures low contact resistance and long-term protection against oxidation.

Key Features

• N Female to UHF Female Interface: Consists of an N-Type Jack (with socket and external threads) and a UHF Jack (with socket and external threads).

• Nickel-Plated Brass Body: Offers superior corrosion resistance and professional-grade durability for indoor and outdoor applications.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its operating range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in field and laboratory environments.

• Versatile Application: Fully compatible with all standard PL-259 (UHF Male) and N-Type Male connectors.

🔹 Applications:

• RF interface conversion
• Antenna connections
• Communication systems
• Signal routing
• RF cable assemblies
• Test setups
