N Male to BNC Female Adapter

Description

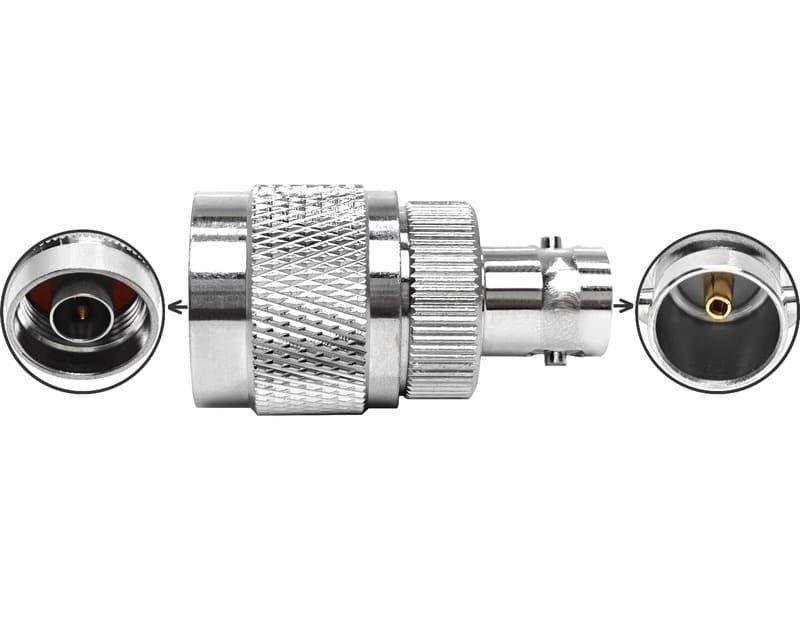

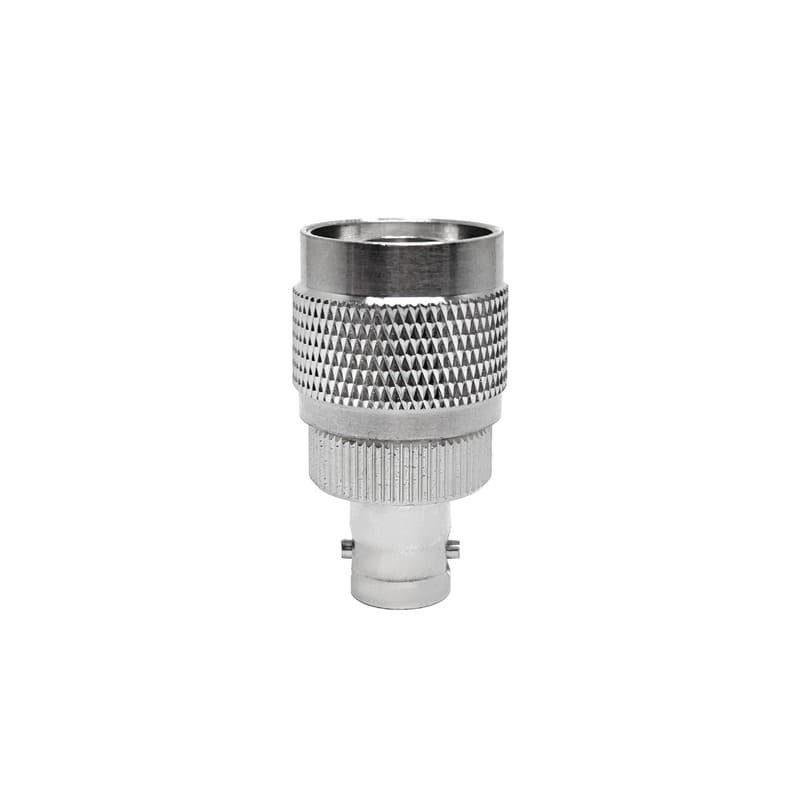

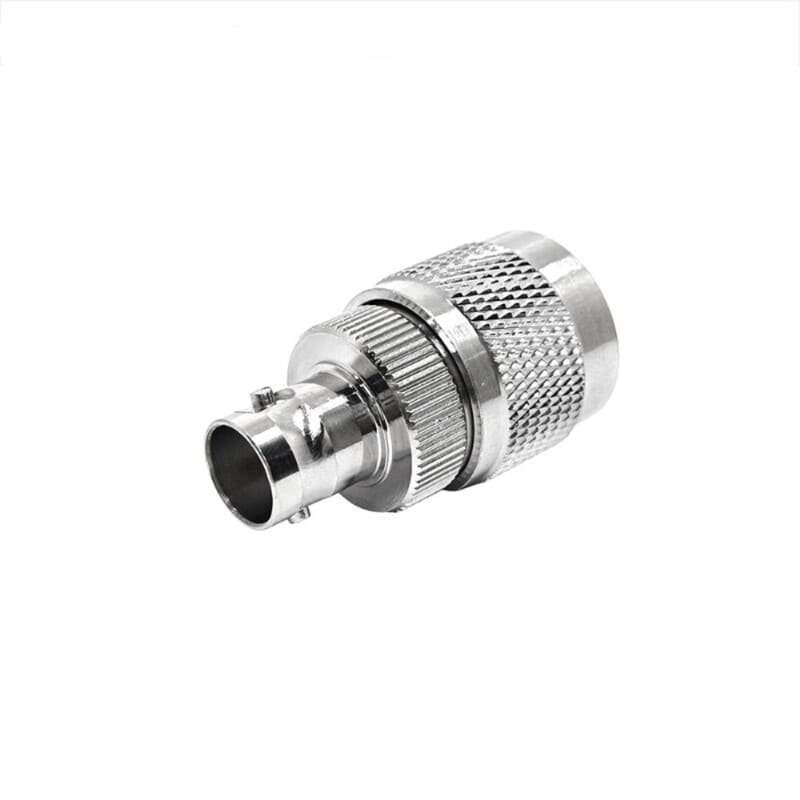

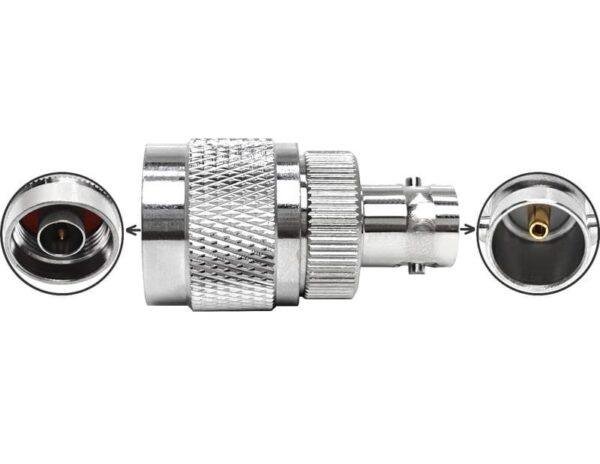

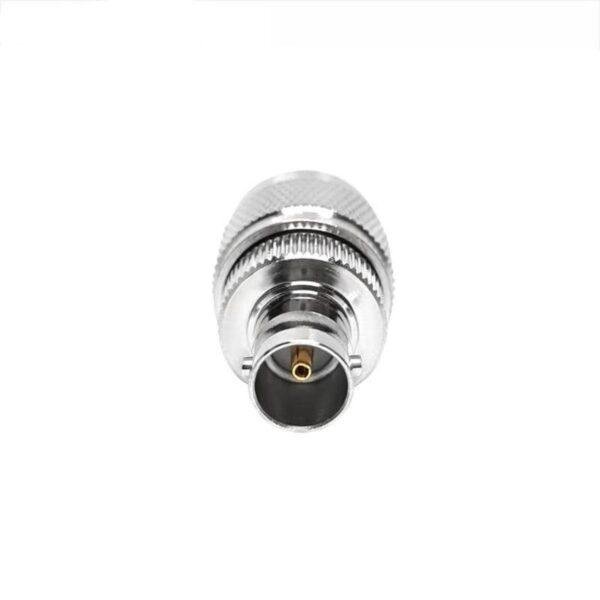

The N Male to BNC Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between two prominent connector standards. It features an N-Type Plug (Male) on one side, utilizing a standard threaded coupling nut and center pin, and a BNC Jack (Female) on the other, featuring the classic two-stud bayonet coupling mechanism and internal socket.

This adapter is indispensable for engineers and technicians who need to connect BNC male cable assemblies to N-Type female equipment ports, such as those found on spectrum analyzers, signal generators, and high-power amplifiers. The BNC interface allows for rapid connection and disconnection during laboratory testing, while the N-Type interface ensures a rugged, high-performance link to the hardware. Precision-machined to ensure a constant 50 Ohm impedance, it is constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, maintaining exceptional signal integrity and low VSWR up to 4 GHz.

Key Technical Advantages

• Standard Interface Integration: Enables seamless interoperability between professional N-Type infrastructure and widely available BNC-based test cables and instruments.

• Rapid Test Connectivity: The BNC female interface allows for the quick attachment of probes and cables, making it ideal for high-traffic laboratory and field testing environments.

• Superior RF Shielding: The solid brass construction and high-quality plating provide a continuous ground path, ensuring excellent protection against EMI and RFI interference.

• Rugged Mechanical Stability: The durable housing and heavy-duty N-Type coupling nut are designed to handle the mechanical load of standard coaxial connections without signal degradation.

• Maximum Conductivity: High-purity silver or gold plating on the center contact pin and internal socket ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• N Male to BNC Female Interface: Consists of an N-Type Plug (with pin and hex/knurled nut) and a BNC Jack (with socket and bayonet studs).

• Nickel-Plated Brass Construction: Offers superior electrical performance and professional-grade durability for both indoor and outdoor applications.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in professional test and communication systems.

• Precision 50 Ohm Match: Specifically engineered to match standard high-performance wireless communication and microwave test instrumentation.

🔹 Product Applications

• RF signal interface between N male and BNC female connectors
• Antenna and RF cable connections in telecom and communication systems
• RF coaxial cable assemblies and extensions
• RF test and measurement equipment setups
• Signal distribution in communication and networking systems
• Broadcast and video transmission systems
• Laboratory and instrumentation RF connections
• CCTV and surveillance system connectivity
• Industrial RF and communication networks
• General RF connectivity in high-frequency applications
