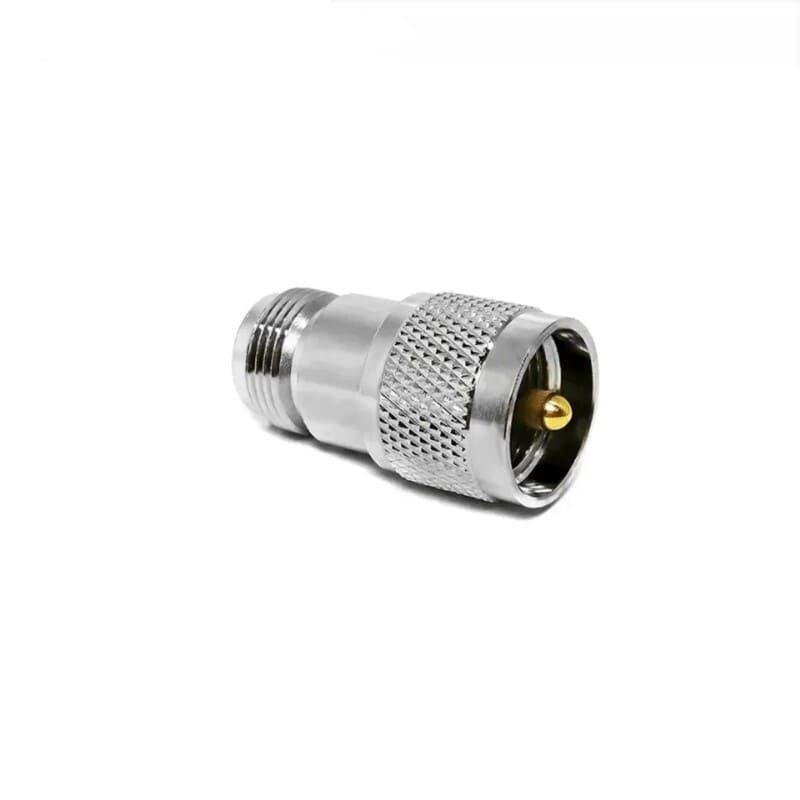

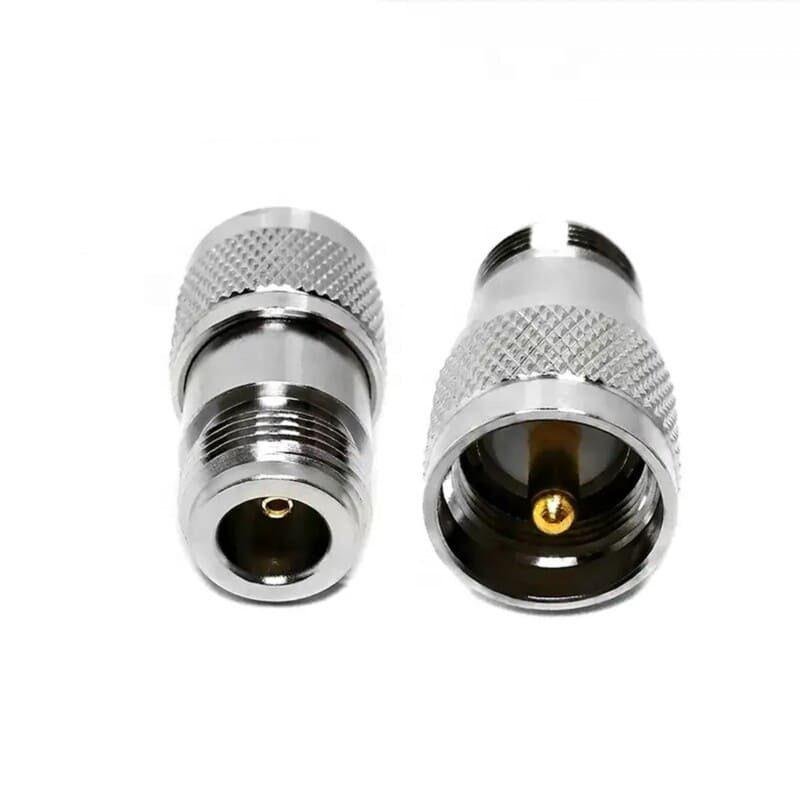

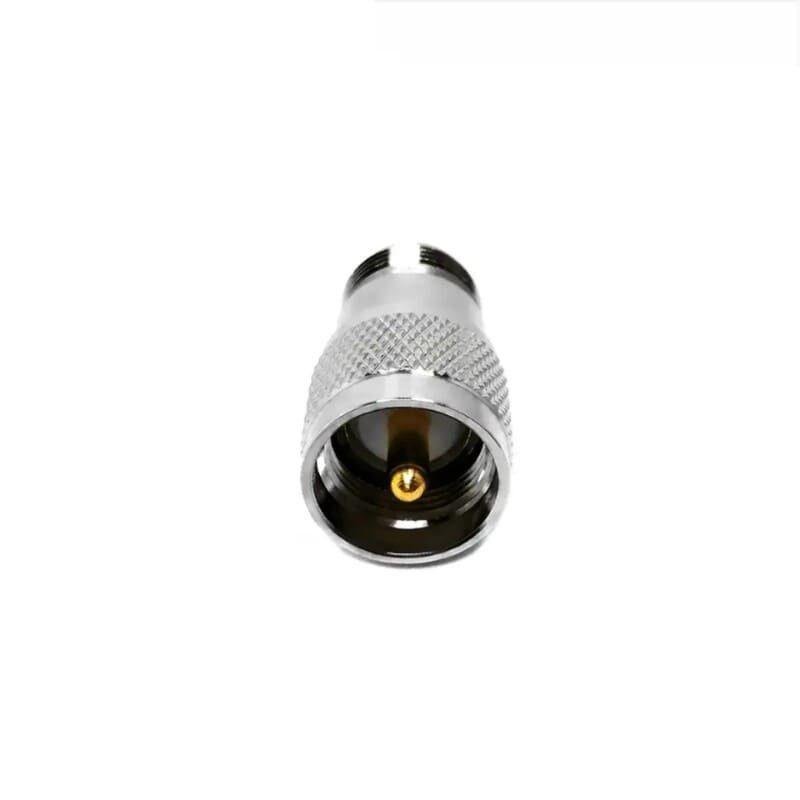

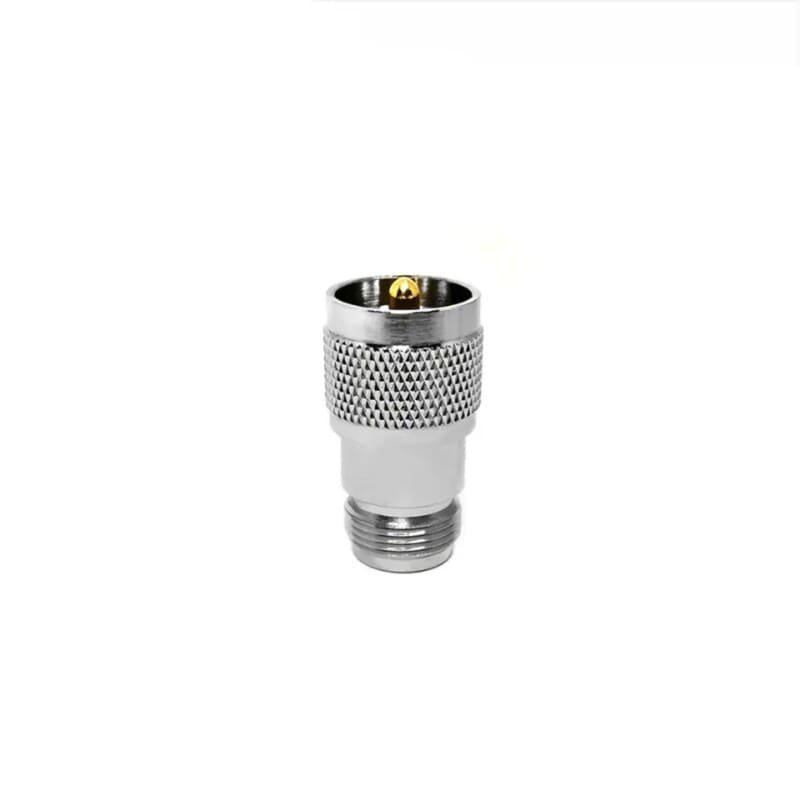

N Female to UHF Male Adapter

Description

The N Female to UHF Male Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the high-precision N-Type standard and the widely utilized UHF interface. It features an N-Type Jack (Female) on one side, utilizing the standard threaded interface common in professional wireless infrastructure, and a UHF Plug (Male/PL-259) on the other, featuring the classic large-format threaded coupling nut and center pin.

This adapter is indispensable for operators and technicians who need to connect N-Type male cable assemblies to legacy UHF female ports (SO-239) found on older base stations, antennas, and signal boosters. While the N-Type interface is a precision 50 Ohm connector rated for microwave frequencies, the UHF side provides a rugged connection for high-power applications typically below 300 MHz. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it maintains reliable mechanical and electrical contact in both mobile and stationary installations.

Key Technical Advantages

• Interface Compatibility: Seamlessly bridges the gap between professional N-Type cables and traditional UHF-based communication hardware.

• Rugged Mechanical Stability: The solid brass construction and threaded coupling mechanisms ensure a stable connection capable of withstanding physical stress and vibration.

• Superior RF Grounding: The solid metal housing provides a continuous ground path, ensuring stable performance and protecting against signal leakage.

• Maximum Conductivity: High-purity silver or gold plating on the internal center contact socket and pin ensures low contact resistance and long-term protection against oxidation.

• Reliable Power Handling: Built to handle the power requirements typically associated with mobile radio and high-power broadcast deployments.

Key Features

• N Female to UHF Male Interface: Consists of an N-Type Jack (with socket and external threads) and a UHF Plug (with pin and threaded coupling nut).

• Nickel-Plated Brass Body: Offers superior corrosion resistance and professional-grade durability for indoor and outdoor applications.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its operating range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in field and laboratory environments.

• Standard Compatibility: The UHF side is fully compatible with all standard SO-239 (UHF Female) connectors.

🔹 Product Applications

• RF signal interface between N female and UHF male connectors
• Antenna and RF cable connections in telecom and radio systems
• RF coaxial cable assemblies and extensions
• Broadcast and two-way radio communication equipment
• Signal distribution in communication networks
• Amateur radio and CB radio applications
• Outdoor antenna installations and RF systems
• RF test and measurement equipment
• Industrial RF and communication networks
• General RF connectivity in communication systems
