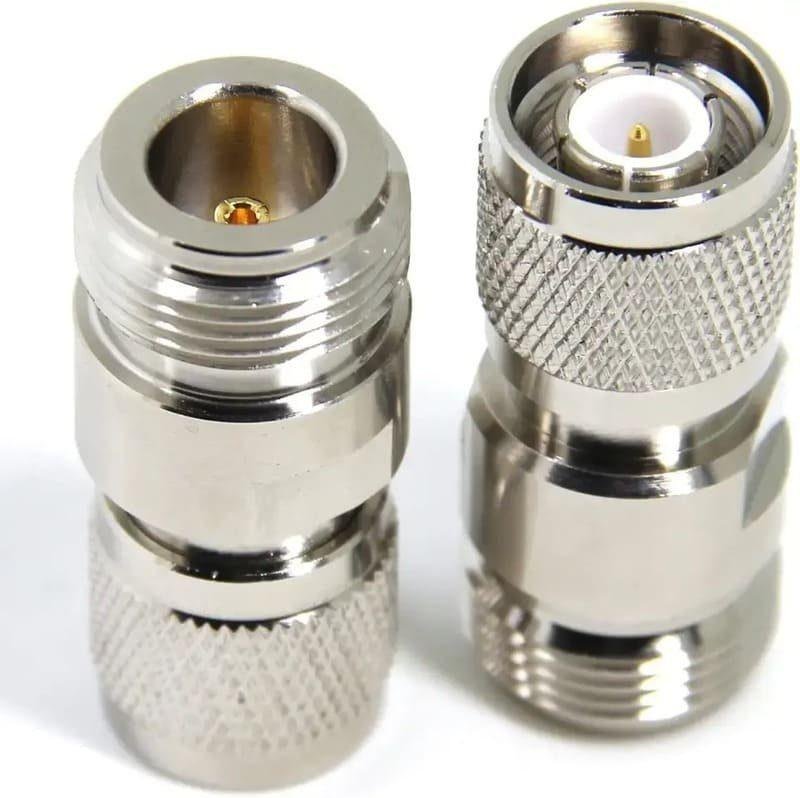

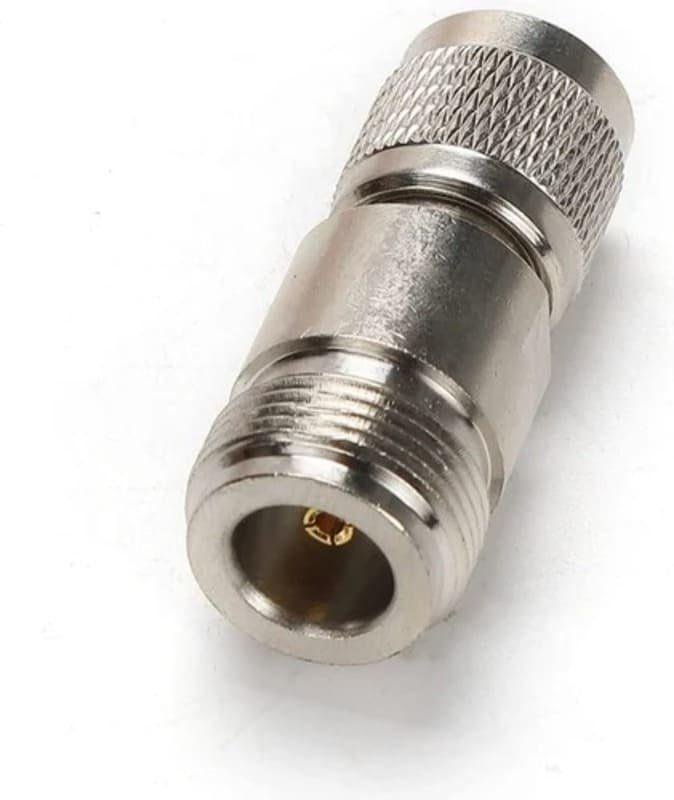

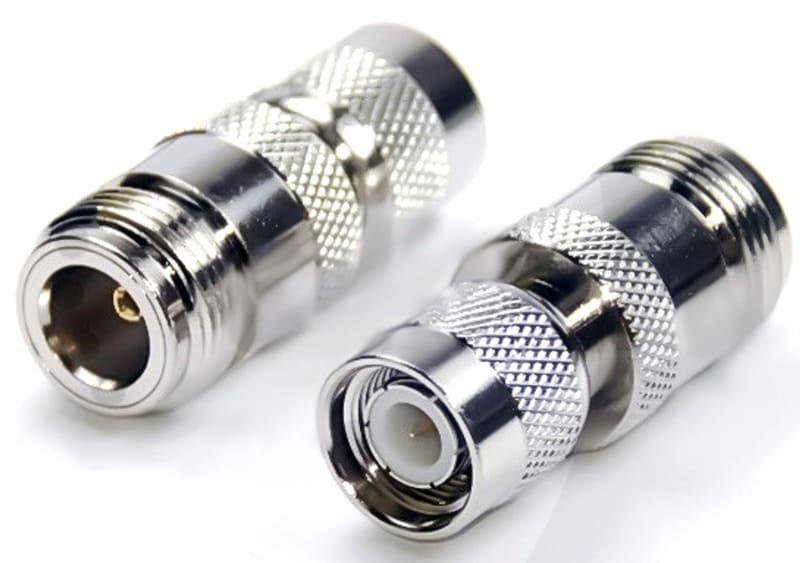

N Female to TNC Male Adapter

Description

The N Female to TNC Male Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between two prominent connector standards. It features an N-Type Jack (Female) on one side, utilizing the industry-standard threaded interface for wireless and cellular infrastructure, and a TNC Plug (Male) on the other, which features a threaded coupling nut and center pin designed for superior performance in high-vibration environments.

This adapter is indispensable for telecommunications engineers and technicians who need to connect TNC female equipment ports or cables to N-Type male cable assemblies. The TNC interface is essentially a threaded version of the BNC connector, providing enhanced mechanical stability for avionics, military, and industrial applications. Precision-machined to ensure a constant 50 Ohm impedance, it is constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, maintaining exceptional signal integrity and low VSWR up to 6 GHz.

Key Technical Advantages

• Vibration-Proof Connectivity: The threaded TNC male interface ensures a secure, stable connection that resists loosening under physical shock or extreme mechanical movement.

• Standard Interface Integration: Enables seamless interoperability between professional N-Type infrastructure and high-stability TNC-based communication hardware.

• Superior RF Shielding: The solid brass construction and high-quality plating provide an exceptional ground path, protecting against EMI and RFI interference across high-frequency bands.

• Rugged Mechanical Stability: The durable housing is designed to handle the mechanical stress associated with joining standard-sized coaxial cables in field environments.

• Maximum Conductivity: High-purity silver or gold plating on the internal center contact socket and pin ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• N Female to TNC Male Interface: Consists of an N-Type Jack (with socket and external threads) and a TNC Plug (with pin and hex/knurled coupling nut).

• Nickel-Plated Brass Construction: Offers superior electrical performance and professional-grade durability for both indoor and outdoor applications.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in high-traffic test and communication systems.

• Precision 50 Ohm Match: Specifically engineered to match standard high-performance wireless communication and microwave test instrumentation.

🔹 Product Applications

• RF signal interface between N female and TNC male connectors
• Antenna and RF cable connections in telecom and wireless communication systems
• RF coaxial cable assemblies and extensions
• RF test and measurement equipment setups
• Signal distribution in communication networks
• Wireless communication devices and networking systems
• Industrial RF and communication networks
• Outdoor antenna installations and RF systems
• Broadcast and signal transmission applications
• General RF connectivity in high-frequency systems
