7/16 DIN Male to N Male Adapter

Description

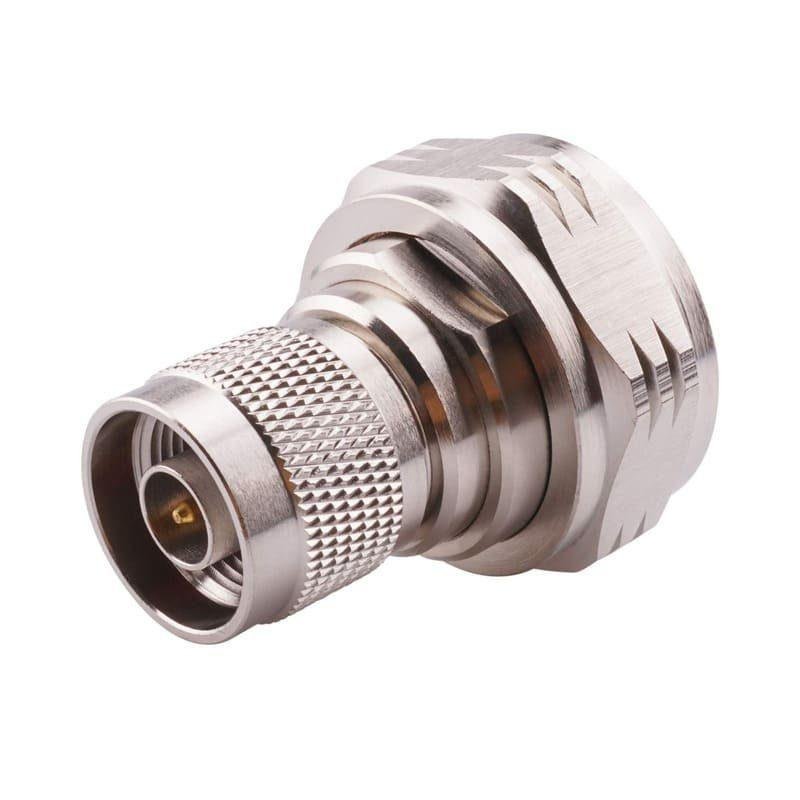

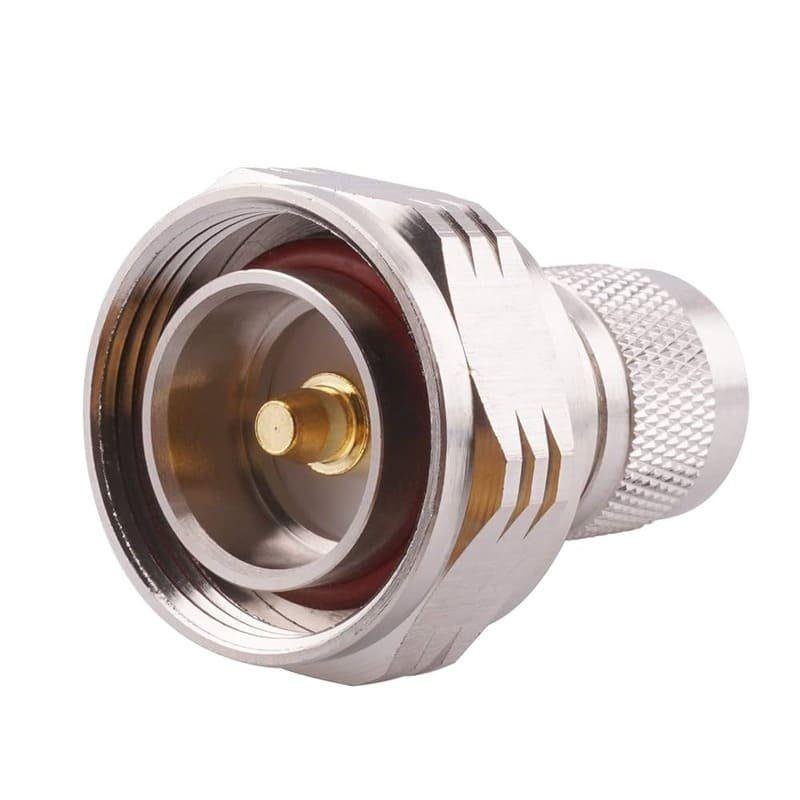

The 7/16 DIN Male to N Male Adapter is a specialized “between-series” RF component designed to provide a robust transition between two prominent threaded male standards. It features a 7/16 DIN Plug (Male) on one side, utilizing a large-format hexagonal coupling nut for maximum environmental sealing and high power handling, and an N-Type Plug (Male) on the other, featuring a standard threaded coupling nut and center pin.

This adapter is indispensable for field engineers and technicians who need to join two female ports-typically connecting a high-power 7/16 DIN output on a remote radio head (RRH) or base station directly to an N-Type-equipped filter, surge protector, or antenna system. The precision-machined design ensures a constant 50 Ohm impedance, significantly reducing signal reflections and power loss. Constructed with a heavy-duty tri-metal (white bronze) or nickel-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 7.5 GHz. Its dual-threaded design ensures maximum mechanical stability in high-vibration and outdoor environments.

Key Technical Advantages

• Vibration-Proof Dual Threading: Both interfaces utilize threaded coupling mechanisms, ensuring a secure connection that will not loosen under physical shock or extreme weather conditions.

• Direct Series Conversion: Provides a seamless, low-loss transition between 7/16 DIN and N-Type standards, eliminating the need for intermediate patch cables and additional loss points.

• Superior Power Handling: The 7/16 DIN male interface is designed to support the high-wattage requirements of cellular infrastructure while maintaining electrical stability.

• Rugged Mechanical Stability: The solid brass construction and high-grade plating provide a durable housing capable of withstanding high-torque installations.

• Maximum Conductivity: High-purity silver or gold plating on the center contact pins ensures ultra-low contact resistance and superior protection against oxidation in corrosive environments.

Key Features

• Double-Male Configuration: Features a 7/16 DIN Plug (with pin) and an N-Type Plug (with pin) for joining two female ports or jacks.

• High-Torque Hex Nuts: Features standard hexagonal nuts on both sides to facilitate secure tightening with standard wrenches.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across high-frequency bands.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in professional telecommunications and broadcast systems.

• Weather-Resistant Design: Specifically engineered for use in demanding outdoor tower-top and base station applications.

🔹 Applications:

• RF Signal Interface between 7/16 DIN and N Type Connectors
• Antenna & RF Cable Adaptation
• Telecom Base Stations & Infrastructure
• Wireless Communication Systems
• RF Test & Measurement Equipment
• High Power RF Transmission Systems
• RF Coaxial Cable Assemblies
• Outdoor & Industrial RF Installations
