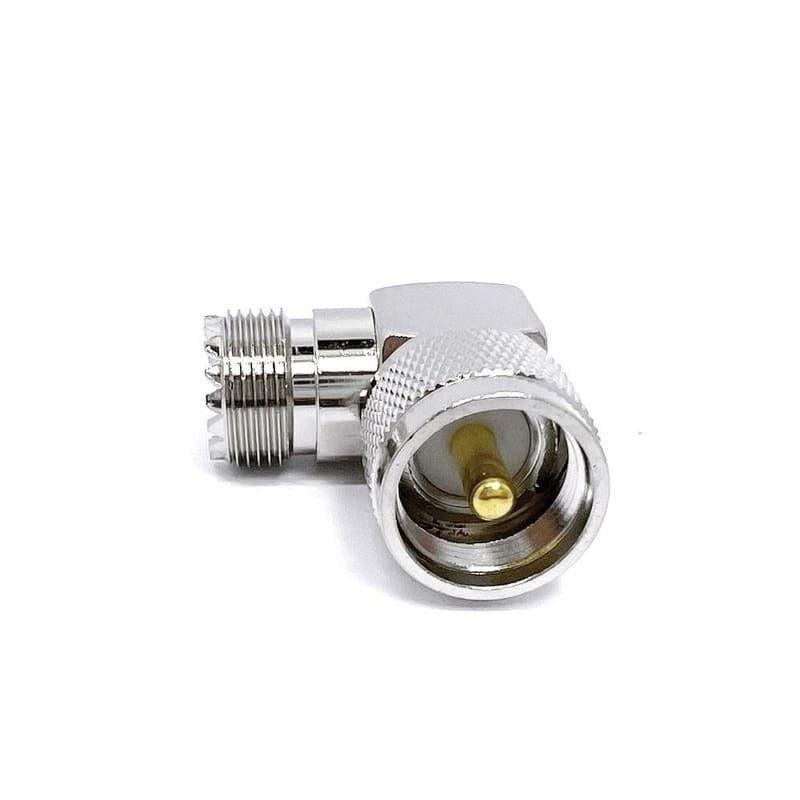

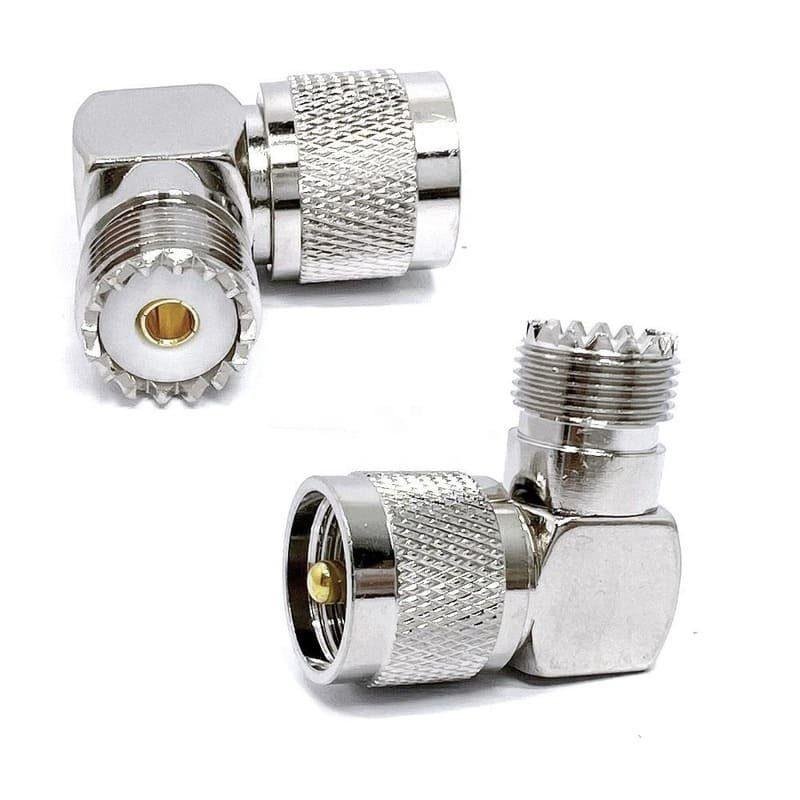

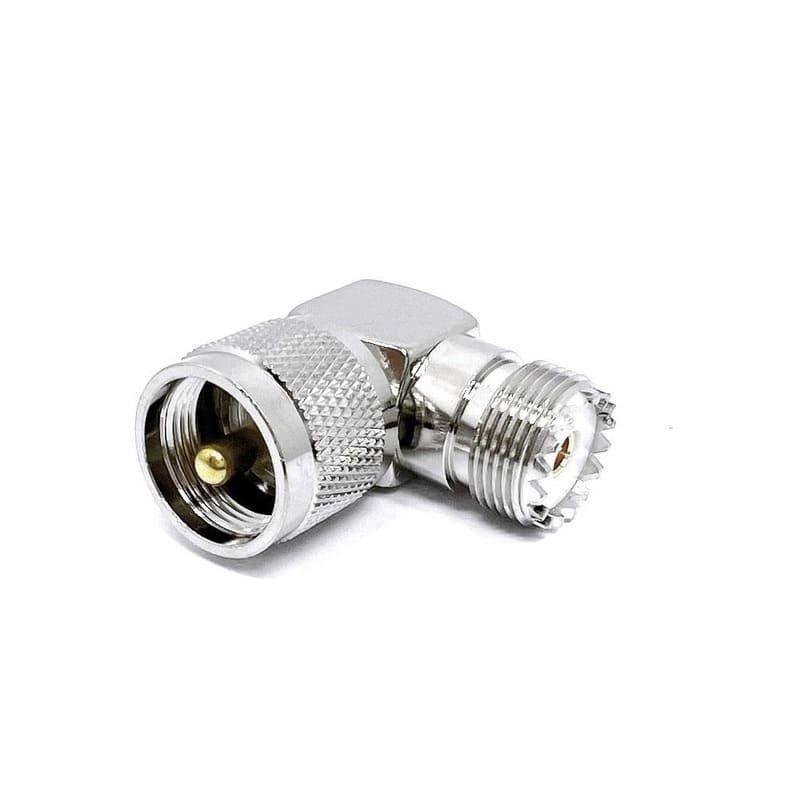

UHF Male to UHF Female Adapter

Description

The UHF Male to UHF Female adapter serves as a critical utility in RF environments where cable flexibility or equipment protection is required. In mobile rigs, these adapters are often used as port savers, absorbing the mechanical stress of frequent cable changes to prevent damage to the radio’s internal SO-239 connector. The PL-259 male side features a standard 5/8″-24 threaded coupling, while the SO-239 female side accepts any standard UHF male plug.

Precision-machined from nickel-plated brass, these adapters offer excellent corrosion resistance and mechanical durability. Internal insulation is typically composed of PTFE (Teflon), which provides high dielectric strength and heat resistance—crucial for high-power HF (High Frequency) linear amplifiers that can push over 1,500 Watts. While known for a “non-constant impedance” above 100 MHz, high-quality versions maintain low VSWR for reliable performance across the VHF band.

Key Technical Advantages

• Mechanical Protection: Acts as a buffer to protect the primary chassis-mount SO-239 connector from wear and tear.

• High Power Handling: Capable of managing significantly higher voltage and wattage than smaller SMA or BNC interfaces.

• Threaded Security: The heavy-duty threaded coupling mechanism ensures a vibration-resistant connection, ideal for vehicle-mounted CB or Ham radios.

• Tool-Free Operation: The knurled outer shell allows for easy hand-tightening, making it perfect for quick field deployments or temporary test setups.

Key Features

• Connector A: UHF Male (PL-259 Plug).

• Connector B: UHF Female (SO-239 Jack).

• Body Material: Nickel-Plated Brass for industrial-grade durability.

• Insulation: High-temp PTFE (Teflon) or Delrin.

• Frequency Range: DC to 300 MHz (Optimized for HF/VHF).

• Impedance: 50 Ohm (Nominal).

🔹 Applications:

• RF connector conversion
• Antenna cable connections
• Radio communication systems
• RF signal routing
• Broadcast setups
• Wireless communication
