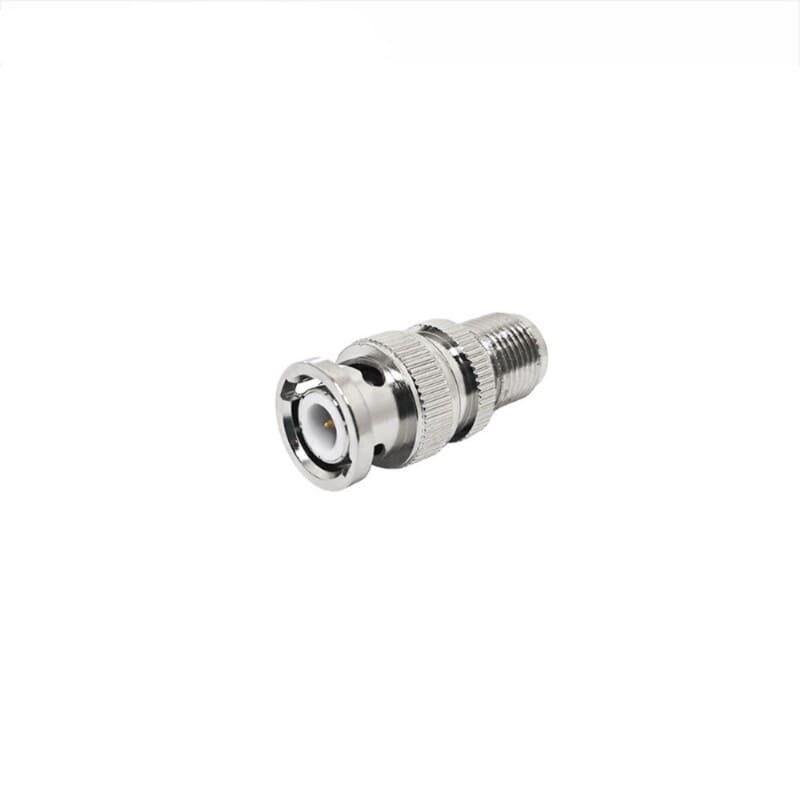

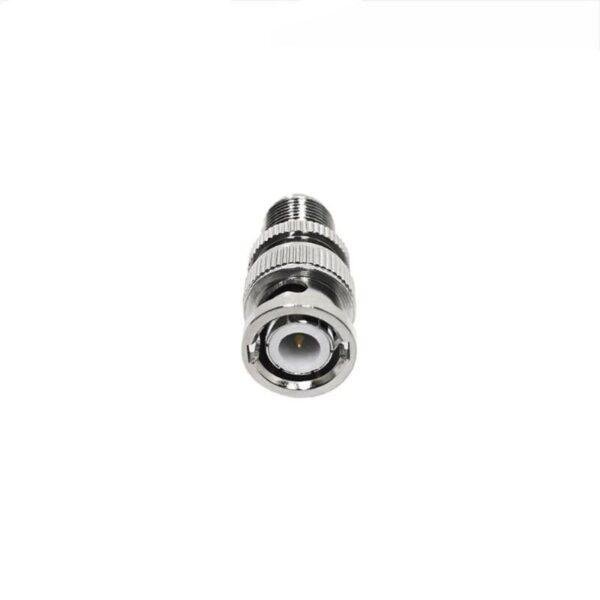

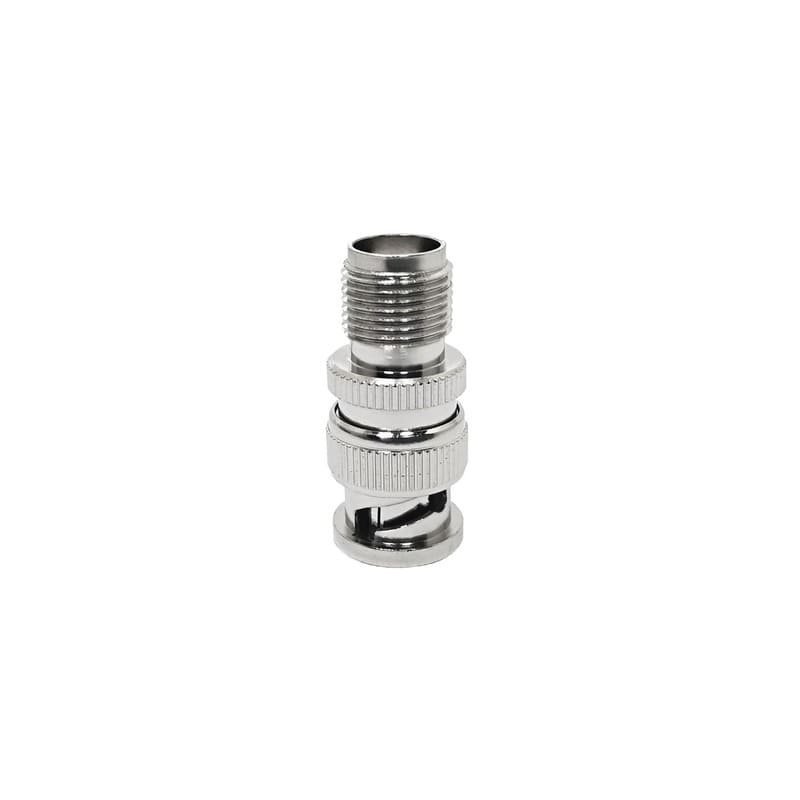

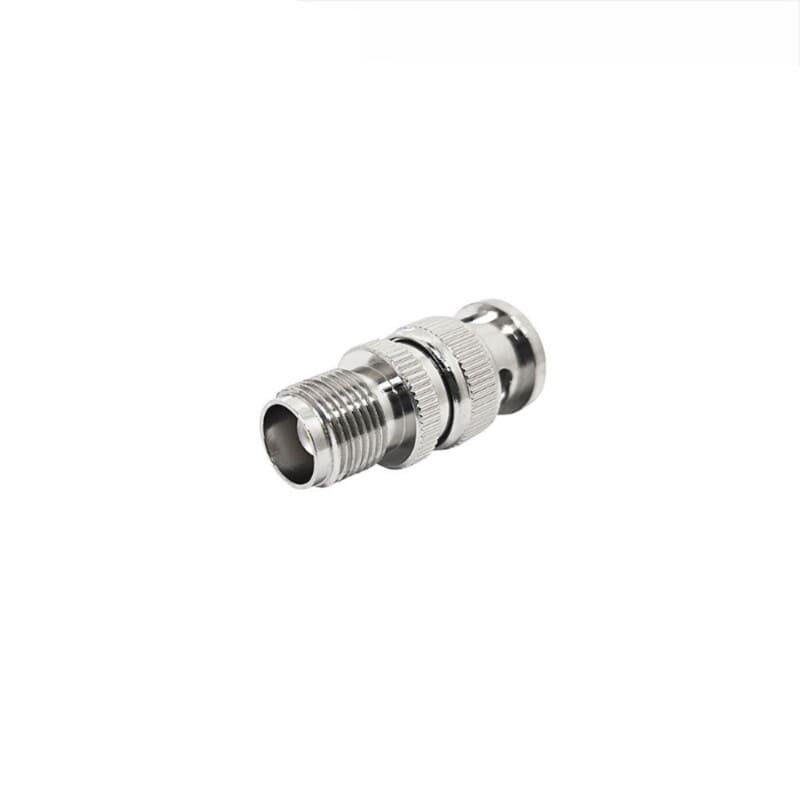

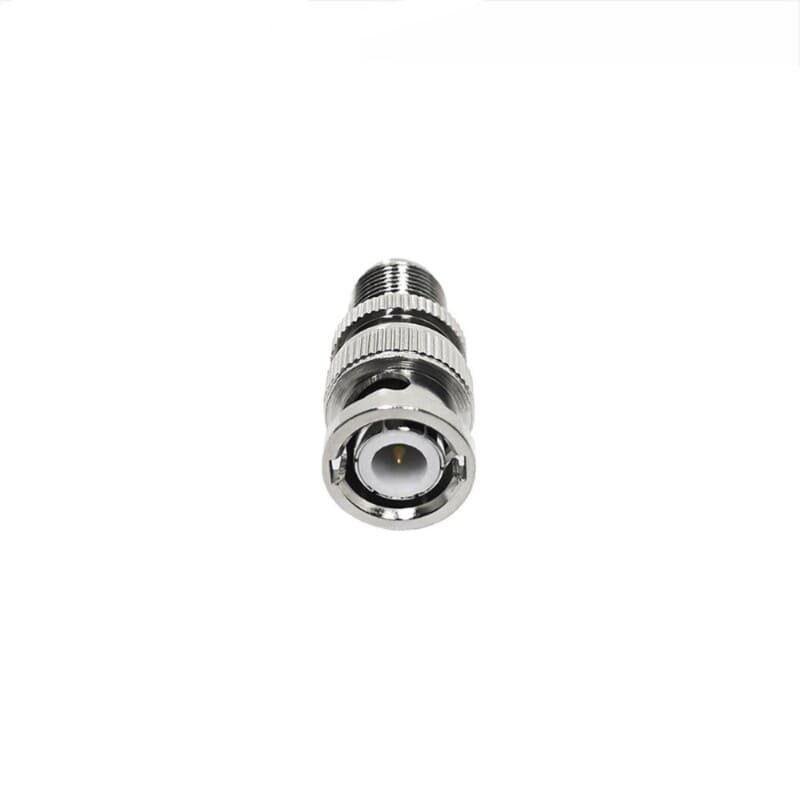

BNC Male to TNC Female Adapter

Description

The BNC Male to TNC Female Adapter is a versatile “between-series” RF component designed to provide a reliable transition between two distinct coupling architectures. It features a BNC Plug (Male) on one side, utilizing the classic bayonet-style quick-lock mechanism, and a TNC Jack (Female) on the other, featuring a threaded interface designed for increased mechanical stability in high-vibration environments.

This adapter is essential for engineers and technicians who need to connect TNC-terminated cable assemblies (common in ruggedized or military-grade hardware) to BNC-equipped instruments such as oscilloscopes, spectrum analyzers, or signal generators. The precision-machined body ensures a constant 50 Ohm impedance, significantly reducing signal reflections and power loss. Constructed with a high-quality nickel-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 4 GHz. The rugged design is built to withstand frequent mating cycles in both demanding field operations and laboratory environments.

Key Technical Advantages

• Enhanced Mechanical Stability: The TNC female side provides a secure threaded connection that is highly resistant to vibration and physical shock compared to standard bayonet couplings.

• Seamless Series Transition: Provides a direct, low-loss conversion between BNC and TNC interfaces, eliminating the need for custom cable assemblies.

• Rapid Bayonet Mating: The BNC male side allows for instantaneous connection and disconnection with a simple quarter-turn, ideal for rapid testing and mobile setups.

• Superior RF Shielding: The solid brass construction ensures a continuous ground path, providing excellent protection against EMI and RFI interference.

• Maximum Conductivity: High-quality plating on the center contact pin and socket ensures low contact resistance and superior corrosion resistance over time.

Key Features

• BNC Male to TNC Female Interface: Consists of a BNC Plug (with pin) and a TNC Jack (with socket and external threads).

• Bayonet & Threaded Hybrid: Combines the quick-connect versatility of BNC with the vibration-proof threading of the TNC standard.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in laboratory and high-vibration field applications.

• Standard 50 Ohm Impedance: Specifically designed to match standard RF communication and test systems.

🔹 Applications:

• RF Signal Interface between BNC and TNC Connectors
• Antenna & RF Cable Adaptation
• Wireless Communication Systems
• RF Test & Measurement Equipment
• CCTV & Video Signal Systems
• Telecom & Networking Equipment
• RF Coaxial Cable Assemblies
• Laboratory & Field Testing Applications
