Description

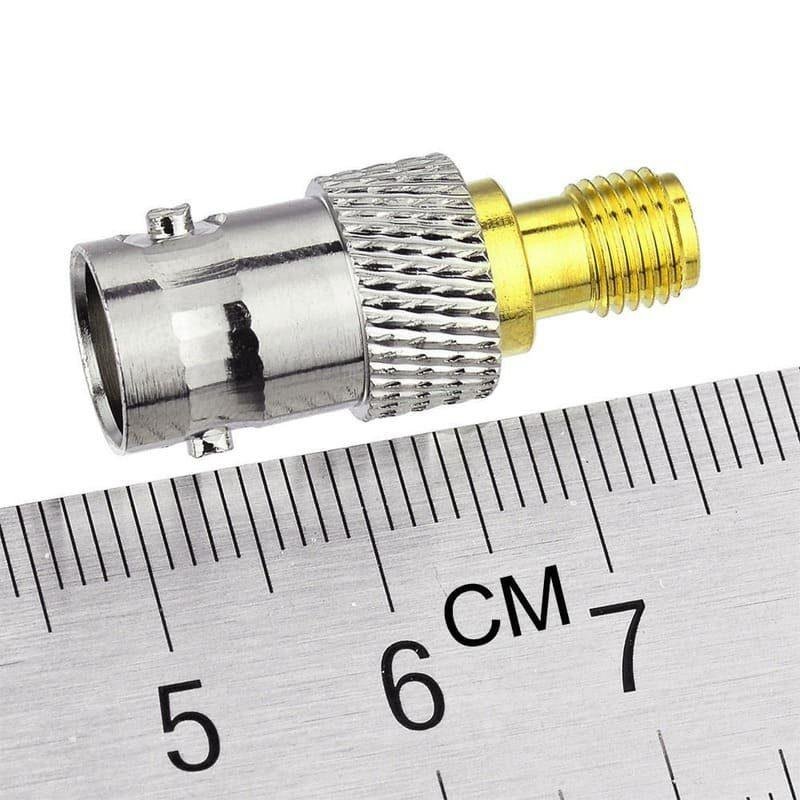

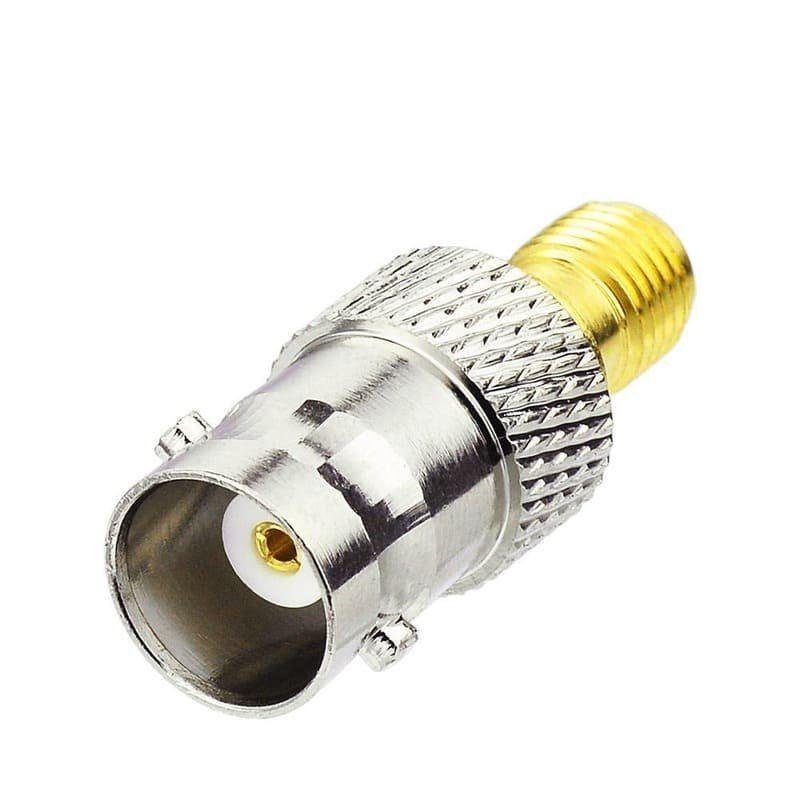

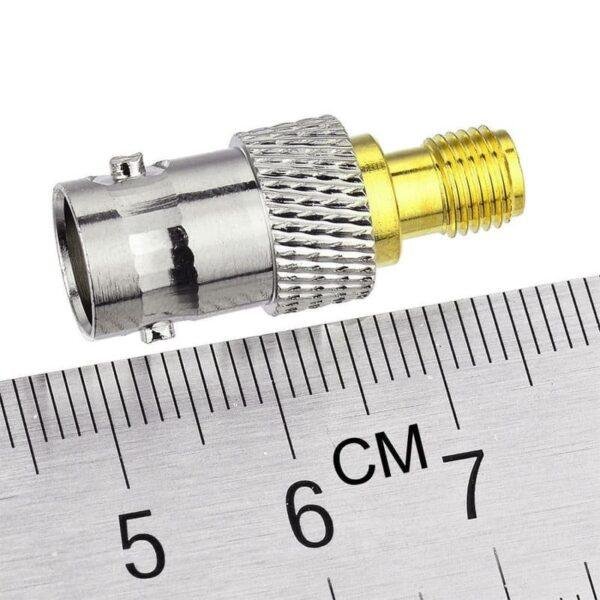

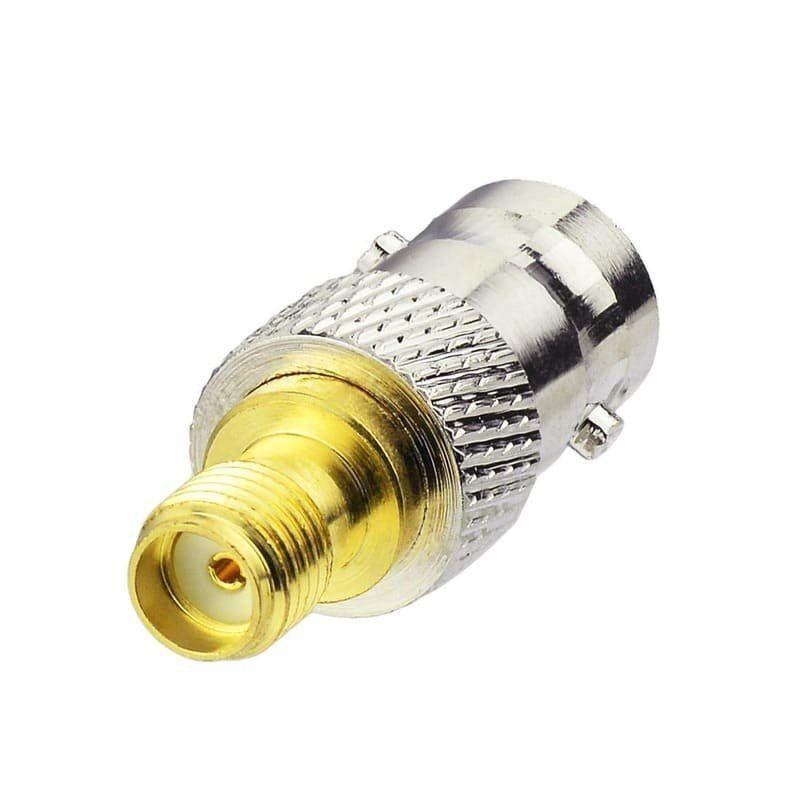

The BNC Female to SMA Female Adapter is a vital between-series RF component designed to bridge the gap between two widely used connector standards. It features a BNC Jack (Female) on one side, utilizing the standard bayonet-style coupling for rapid attachment, and an SMA Jack (Female) on the other side, featuring a high-frequency threaded interface.
This adapter is indispensable for laboratory environments where BNC-equipped test instruments must interface with SMA-based high-frequency components or sub-miniature wireless devices. Its small footprint and precision machining ensure a consistent 50 Ohm impedance, minimizing signal loss and reflections. Constructed with a heavy-duty nickel or gold-plated brass body and PTFE (Teflon) insulation, it provides stable electrical performance and low VSWR up to 4 GHz. The rugged construction is designed to maintain mechanical integrity through hundreds of mating cycles.
Key Technical Advantages
-
Direct Interface Conversion: Enables immediate connection between BNC and SMA systems without the need for additional patch cables.
-
Compact & Lightweight: The streamlined profile makes it ideal for use in portable test kits and high-density equipment panels.
-
Low Insertion Loss: Precision internal geometry ensures a clean signal path, maintaining signal strength even at higher frequencies.
-
Broad Application Support: Perfectly suited for bridging the gap between professional measurement tools and modern wireless networking hardware.
-
Superior Contact Integrity: High-quality plating on both female sockets ensures low contact resistance and excellent protection against oxidation.
Key Features
-
Double-Female Configuration: Features a BNC Jack (with socket) and an SMA Jack (with socket) to join two male cable ends.
-
Bayonet & Threaded Hybrid: Combines the quick-connect versatility of BNC with the microwave-frequency precision of SMA.
-
Premium PTFE Dielectric: Provides excellent thermal stability and consistent electrical performance across its operating range.
-
Industrial Durability: Rated for a minimum of 500 mating cycles, ensuring long-term reliability in benchtop and field applications.
-
Standard 50 Ohm Impedance: Specifically designed to match standard RF communication and test systems.
