Description

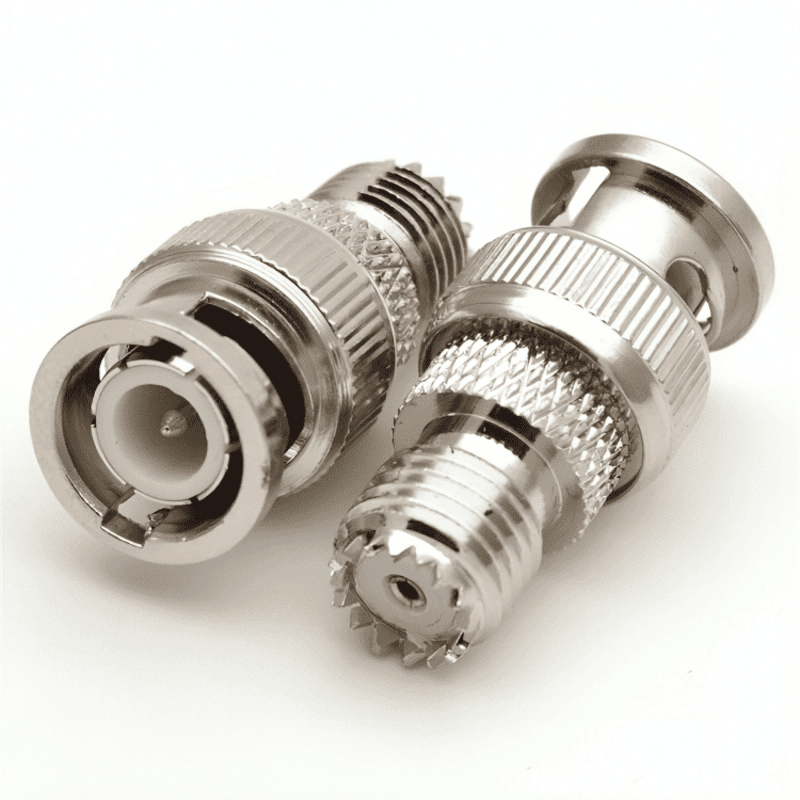

The BNC Male to Mini UHF Female Adapter is a specialized “between-series” RF component designed to bridge standard professional BNC connections with compact Mini UHF interfaces. It features a BNC Plug (Male) on one side, utilizing the classic bayonet locking mechanism for rapid attachment, and a Mini UHF Jack (Female) on the other, featuring a fine-threaded interface designed for space-constrained mobile applications.
This adapter is essential for communications technicians and radio enthusiasts who need to connect Mini UHF-terminated antenna cables (common in Motorola and other mobile radio brands) to BNC-equipped test instruments, scanners, or base station hardware. The precision-machined design ensures a constant 50 Ohm impedance, significantly reducing signal reflections and power loss across VHF and UHF bands. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 2.5 GHz. Its rugged construction is optimized for long-term reliability in both mobile vehicle installations and laboratory environments.
Key Technical Advantages
-
Compact Interface Conversion: Enables immediate connection between BNC and Mini UHF systems without the need for bulky custom cable transitions.
-
Rapid Bayonet Mating: The BNC male side allows for quick and secure locking with a simple quarter-turn, ideal for rapid testing and mobile equipment setups.
-
Secure Threaded Connection: The Mini UHF female side provides a fine-threaded port that ensures a stable, high-retention connection for antenna leads.
-
Superior RF Shielding: The solid brass construction provides a continuous ground path, ensuring excellent protection against EMI and RFI interference.
-
Maximum Conductivity: High-quality plating on the center contact pin and socket ensures low contact resistance and superior corrosion resistance in diverse environments.
Key Features
-
BNC Male to Mini UHF Female Interface: Consists of a BNC Plug (with pin) and a Mini UHF Jack (with socket and external threads).
-
Miniature Footprint: Optimized for use in tight spaces typical of vehicle dashboards and compact radio chassis.
-
Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical impedance across its frequency range.
-
Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in professional RF systems.
-
Standard 50 Ohm Impedance: Specifically engineered to match standard communication and mobile radio instrumentation.
🔹 Applications:
• RF Signal Interface between BNC and Mini UHF Connectors
• Antenna & RF Cable Adaptation
• Wireless Communication Systems
• RF Test & Measurement Equipment
• CCTV & Video Signal Systems
• Telecom & Networking Equipment
• RF Coaxial Cable Assemblies
• Mobile Radio & Field Communication Applications
