BNC Female to F Male Adapter

Description

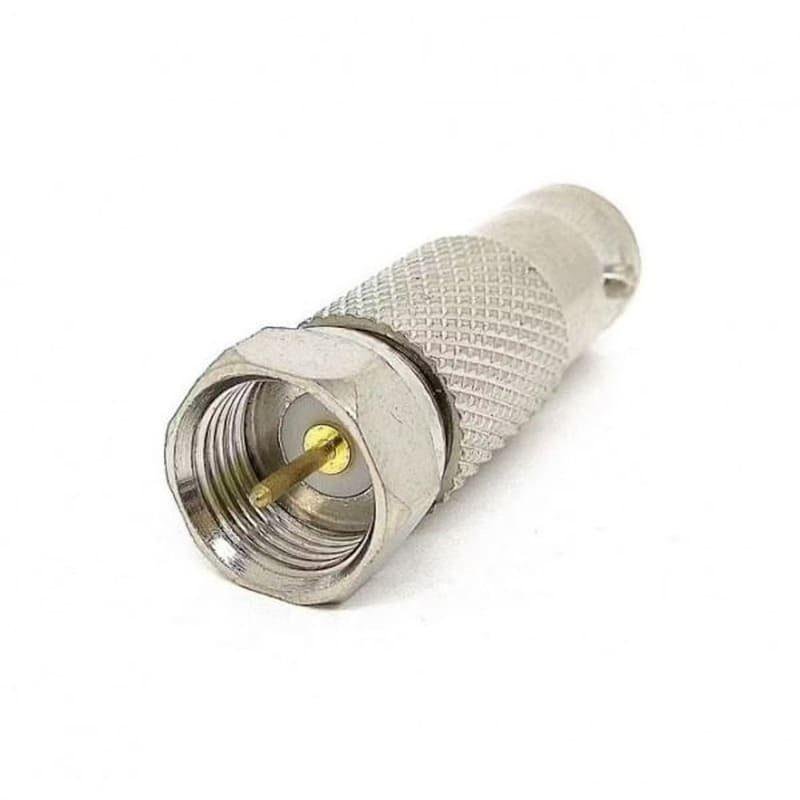

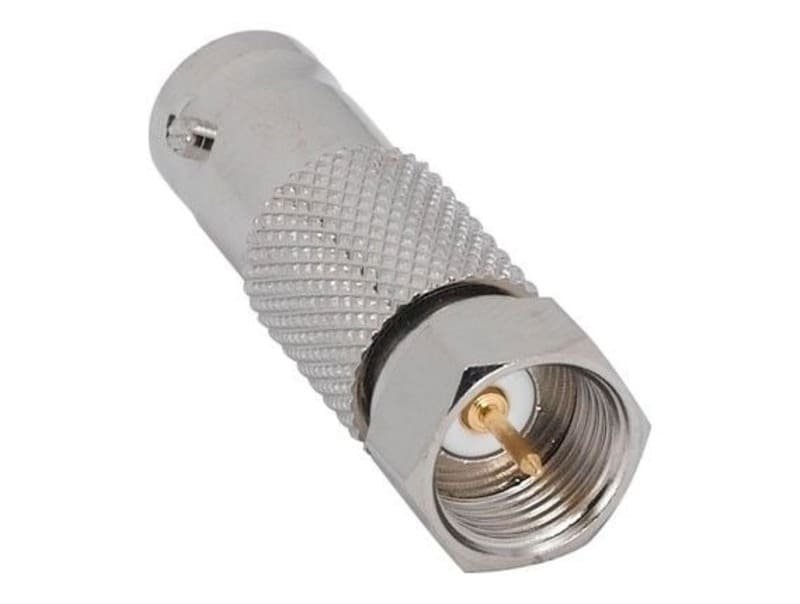

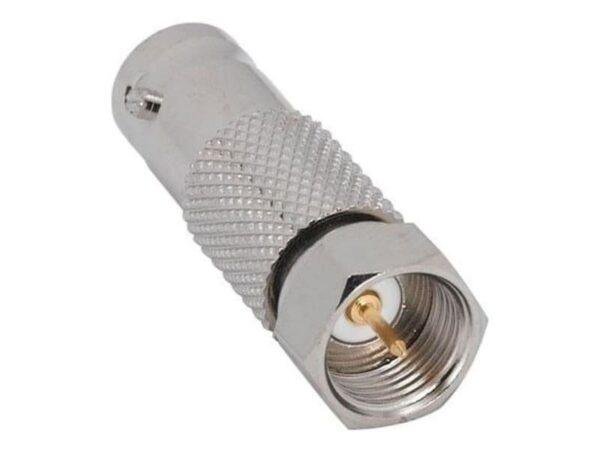

The BNC Female to F Male Adapter is a versatile “between-series” RF component designed to provide a reliable transition between two distinct coupling styles. It features a BNC Jack (Female) on one side, utilizing the classic bayonet-style coupling for quick mating, and an F-Type Plug (Male) on the other, featuring a standard threaded coupling nut and center pin.

This adapter is essential for broadcast and security technicians who need to connect BNC-terminated cables (common in professional SDI or CCTV setups) to devices with F-Type female ports, such as cable set-top boxes, signal amplifiers, or television tuners. While F-Type connectors are predominantly used in 75 Ohm environments, this adapter is precision-machined to ensure mechanical compatibility and stable signal flow across mixed-impedance systems. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it ensures stable signal integrity and low insertion loss for both analog and digital video applications.

Key Technical Advantages

• Direct Series Conversion: Provides a seamless, low-loss transition between BNC and F-Type standards, eliminating the need for custom cable assemblies.

• Secure Threaded Attachment: The F-Type male side features a standard threaded nut, ensuring a stable and vibration-proof connection to equipment ports or splitters.

• Rapid Bayonet Coupling: The BNC female side allows for instantaneous connection and disconnection of male cable ends, ideal for testing and temporary setups.

• Superior RF Shielding: The solid brass construction ensures a continuous ground path, providing excellent protection against EMI and RFI interference.

• Maximum Conductivity: High-quality plating on the center contact pin and socket ensures low contact resistance and excellent protection against oxidation.

Key Features

• BNC Female to F Male Interface: Consists of a BNC Jack (with socket) and an F-Type Plug (with pin and internal threads).

• Standard Threaded F-Port: Features standard 3/8-32 UNEF threads to ensure universal compatibility with all F-Type female jacks.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical isolation across standard video frequencies.

• Rugged Nickel-Plated Construction: Provides excellent corrosion resistance and durability for both indoor and outdoor use.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in laboratory and high-traffic installation environments.

🔹 Applications:

• RF Signal Interface between BNC and F Type Connectors
• CCTV & Video Signal System Connections
• TV & Satellite Signal Adaptation
• Antenna & RF Cable Adaptation
• RF Test & Measurement Equipment
• Telecom & Networking Equipment
• RF Coaxial Cable Assemblies
• Laboratory & Field Testing Applications
