BNC Female to F Female BH Adapter

Description

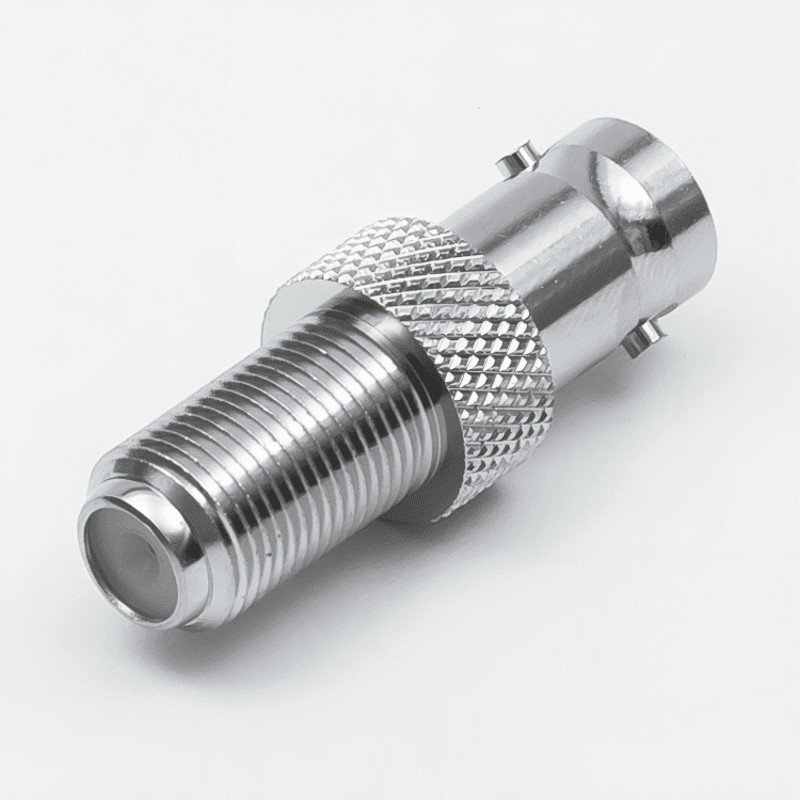

The BNC Female to F Female Bulkhead Adapter is a specialized RF interconnect designed for permanent installation through panels, wall plates, and equipment housings. This adapter features a BNC Jack (Female) on one side and an F-Type Jack (Female) on the other. The bulkhead configuration includes an elongated threaded body with a nut and washer, allowing it to be securely fixed through a pre-drilled hole in an enclosure or rack panel.

This adapter is essential for creating a clean, professional external interface on a device, allowing internal BNC circuitry to connect to external F-Type cabling (typically RG6 or RG59). The integrated D-flat (or D-hole) design on the body ensures the connector does not rotate while tightening cables or during installation. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it ensures stable signal integrity for both analog and digital video signals. Its rugged design provides a durable, grounded connection point that maintains mechanical integrity under frequent use.

Key Technical Advantages

• Secure Panel Mounting: The bulkhead system provides a rigid, permanent connection point that withstands mechanical stress and prevents cable strain on internal components.

• Anti-Rotation Geometry: The machined D-flat on the threaded body ensures the adapter remains stationary within the panel cutout during mating and installation.

• Seamless Interface Transition: Bridges the gap between professional BNC internal wiring and consumer-standard F-Type external cabling through a single panel port.

• Superior RF Shielding: The solid metal construction and panel-grounding hardware provide a continuous ground path for excellent protection against EMI/RFI.

• Maximum Conductivity: High-quality plating on the internal center contacts ensures low contact resistance and excellent protection against corrosion in humid environments.

Key Features

• Bulkhead Female-to-Female Interface: Consists of a BNC Jack (with socket) and an F-Type Jack (with socket) for joining two male plugs through a panel barrier.

• Integrated Hardware Kit: Includes a heavy-duty hex nut and star washer for immediate installation into panels or enclosures.

• Universal F-Type Compatibility: Features standard 3/8-32 UNEF threads to ensure compatibility with all standard F-Type male connectors.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical isolation for video signal transmission.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in high-traffic installation environments.

🔹 Applications:

• Bulkhead Mount RF Interface between BNC and F Type Connectors
• RF Panel Feedthrough Connections
• CCTV & Video Signal Panel Installations
• TV & Satellite Signal Distribution Panels
• Antenna & RF Cable Adaptation
• Telecom & Networking Equipment Panels
• RF Coaxial Cable Assemblies
• Test & Measurement Panel Applications
