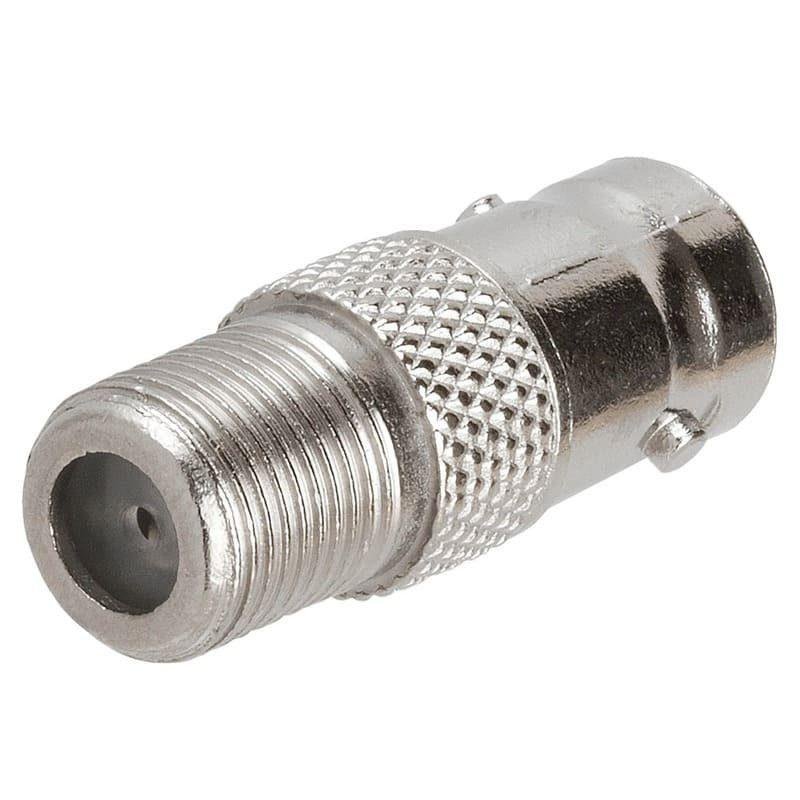

BNC Female to F Female Adapter

Description

The BNC Male to F Female Adapter is a versatile “between-series” RF component designed to bridge standard professional video equipment with consumer-grade coaxial cabling. It features a BNC Plug (Male) on one side, utilizing the classic bayonet locking mechanism for rapid attachment, and an F-Type Jack (Female) on the other, featuring standard threading to accept F-Type male cable ends.

This adapter is indispensable for security technicians and video engineers who need to adapt standard F-terminated cables (typically RG6 or RG59) for use with BNC-equipped monitors, DVRs, or signal generators. While F-Type connectors are predominantly used in 75 Ohm systems, this adapter is precision-machined to ensure stable signal flow and mechanical compatibility across mixed-impedance environments. Constructed with a heavy-duty nickel-plated brass body and high-performance PTFE (Teflon) insulation, it ensures stable signal integrity and durability for both analog and digital video applications.

Key Technical Advantages

• Direct Interface Conversion: Enables immediate connection between F-Type cable assemblies and BNC hardware without the need for specialized tools or cable replacement.

• Rapid Bayonet Mating: The BNC male side allows for quick and secure locking with a simple quarter-turn, ideal for mobile setups and field testing.

• High-Retention Socket: The F-Type female port is designed with internal contacts that provide high pull-out force and consistent electrical contact with the mating center pin.

• Rugged Mechanical Strength: The solid brass construction and nickel plating provide a durable housing that resists corrosion and physical wear.

• Broad System Compatibility: Perfectly suited for bridging the gap between residential cable TV components and professional surveillance or broadcast hardware.

Key Features

• BNC Male to F Female Interface: Consists of a BNC Plug (with pin) and an F-Type Jack (with internal threaded socket).

• Standard Threaded F-Port: Features standard 3/8-32 UNEF threads to ensure compatibility with all standard F-Type male plugs.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical isolation across standard video frequencies.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in laboratory and high-traffic installation environments.

• Compact Design: The streamlined profile minimizes mechanical leverage and strain on equipment ports.

Technical Summary

🔹 Applications:

• RF Signal Interface between BNC and F Type Connectors
• CCTV & Video Signal System Connections
• TV & Satellite Signal Adaptation
• Antenna & RF Cable Adaptation
• RF Test & Measurement Equipment
• Telecom & Networking Equipment
• RF Coaxial Cable Assemblies
• Laboratory & Field Testing Applications
