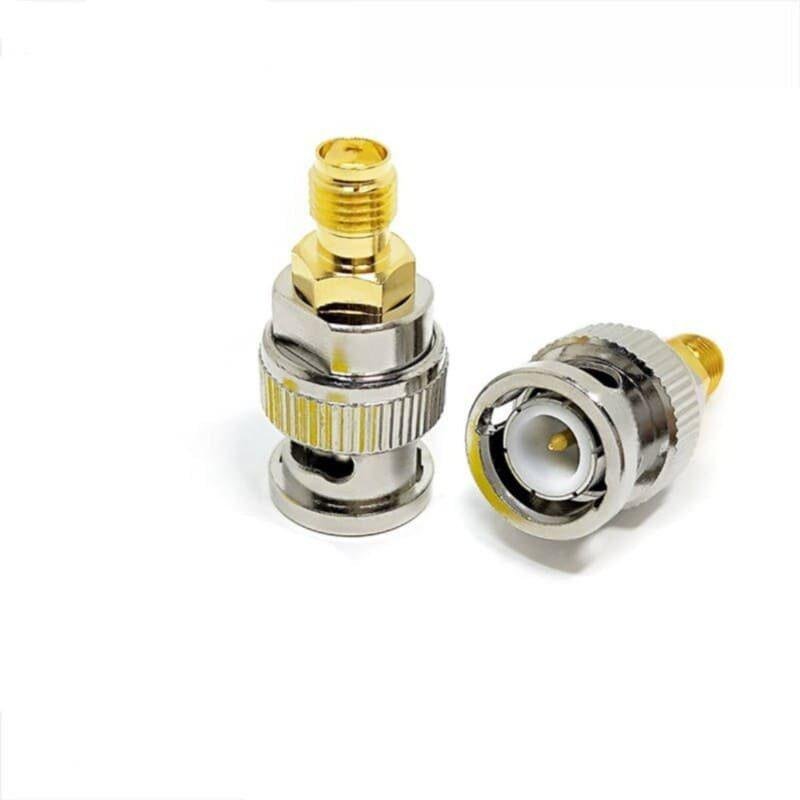

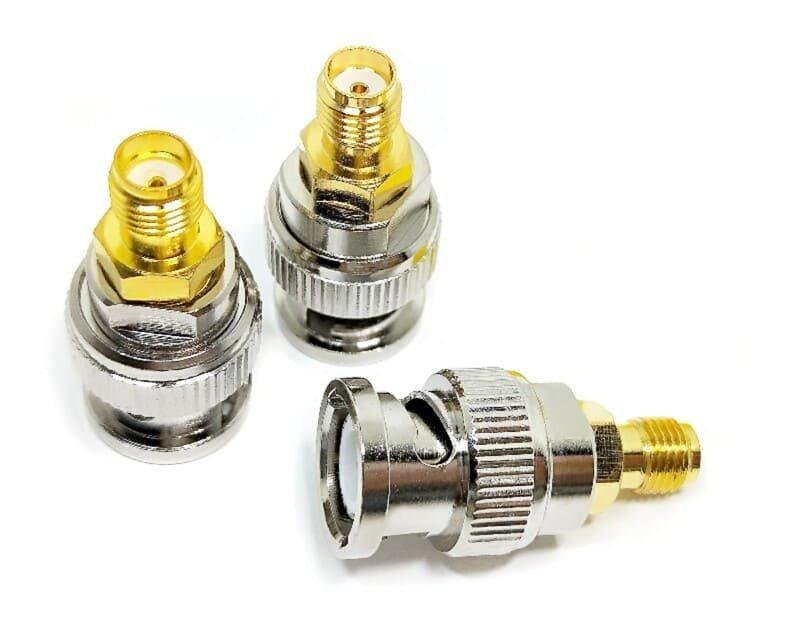

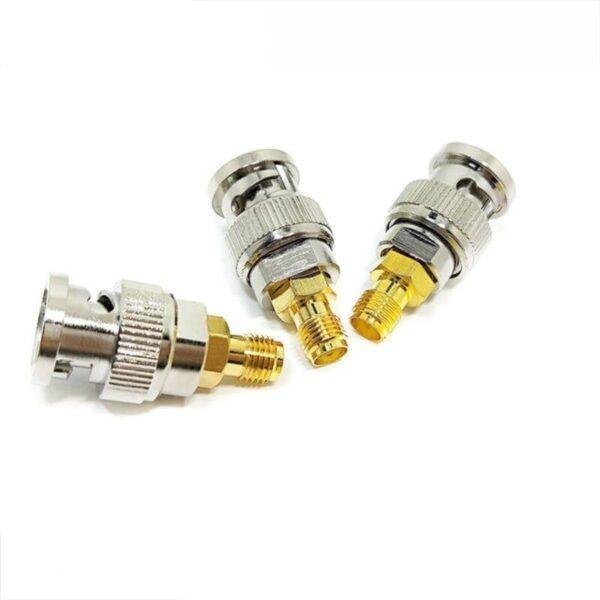

BNC Male to SMA Female Adapter

Description

The BNC Male to SMA Female Adapter is a versatile “between-series” RF component designed to provide a reliable transition between two distinct coupling architectures. It features a BNC Plug (Male) on one side, utilizing the classic bayonet-style quick-lock mechanism, and an SMA Jack (Female) on the other, featuring a precision-threaded interface designed for microwave frequencies.

This adapter is essential for technicians and engineers who need to connect SMA-terminated cables (common in modern Wi-Fi and GPS hardware) to BNC-equipped instruments such as oscilloscopes, signal analyzers, or frequency counters. The precision-machined body ensures a constant 50 Ohm impedance, significantly reducing signal reflections and power loss. Constructed with a heavy-duty nickel or gold-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 4 GHz. Its compact, durable design is built to withstand frequent mating cycles in both laboratory and field environments.

Key Technical Advantages

• Direct Interface Conversion: Enables immediate connection between SMA cable assemblies and BNC hardware without the need for custom-spliced cables.

• Rapid Bayonet Mating: The BNC male side allows for instantaneous connection and disconnection with a simple quarter-turn, ideal for rapid bench testing.

• Precision Threaded Interface: The SMA female side features a high-strength threaded port that ensures stable electrical contact for microwave signal transmission.

• Superior RF Shielding: The solid brass construction provides a continuous ground path, ensuring excellent protection against EMI and RFI interference.

• Maximum Conductivity: High-purity gold plating on the center contact pin and socket ensures low contact resistance and superior corrosion resistance.

Key Features

• BNC Male to SMA Female Interface: Consists of a BNC Plug (with pin) and an SMA Jack (with socket and external threads).

• Compact & Lightweight: The streamlined profile minimizes mechanical strain on equipment ports and is ideal for portable test kits.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical impedance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in professional RF systems.

• Standard 50 Ohm Impedance: Specifically engineered to match standard communication and test instrumentation.
