BNC Male to N Male Adapter

Description

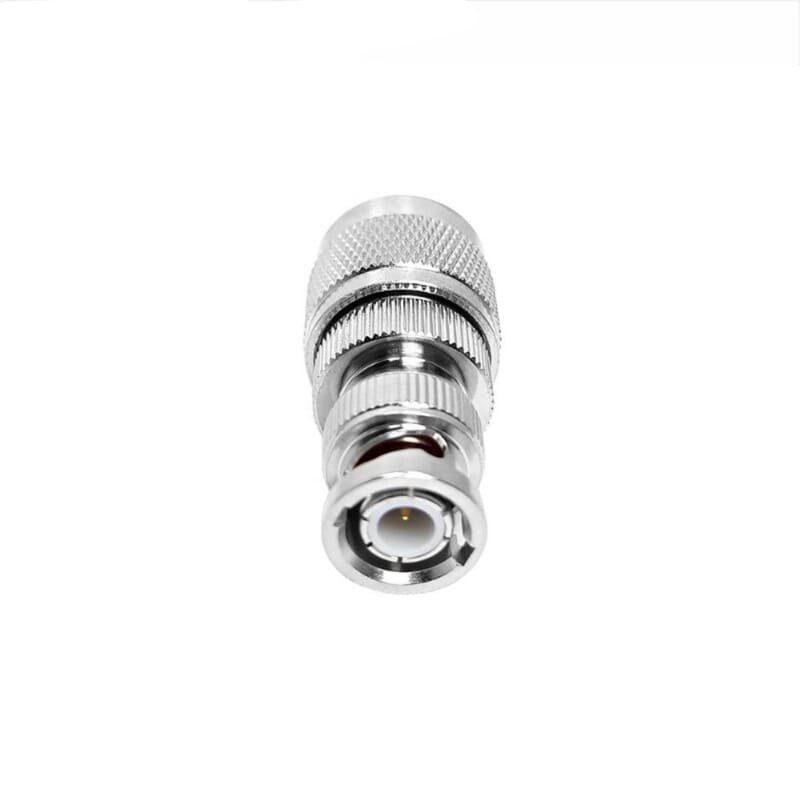

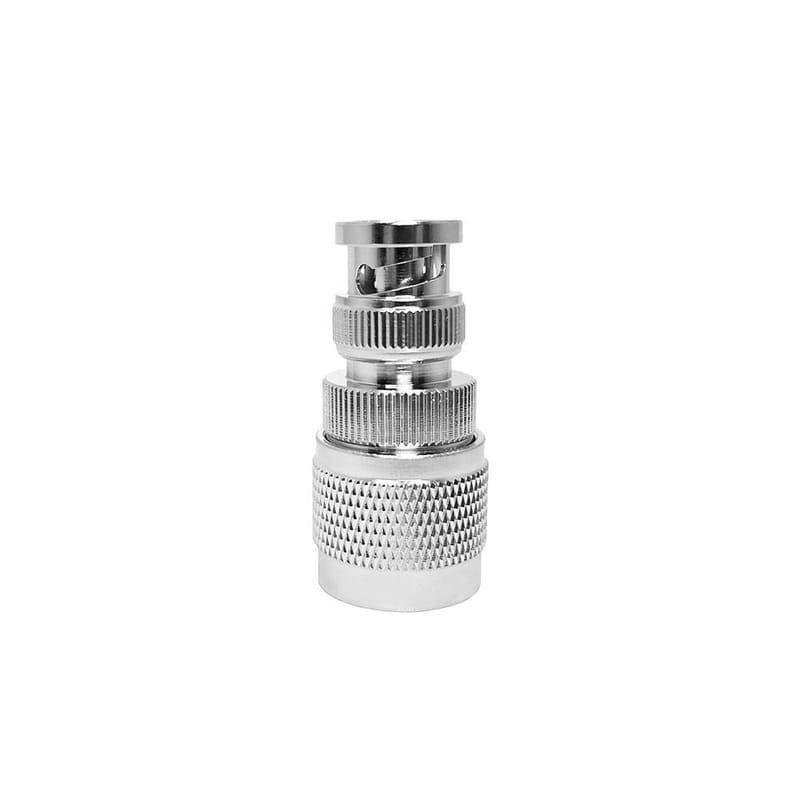

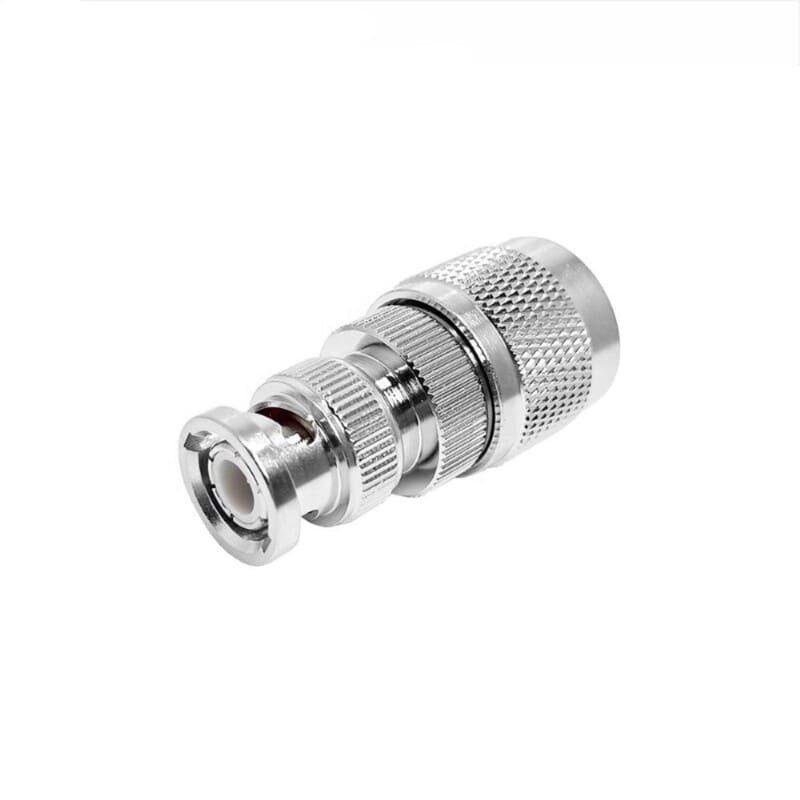

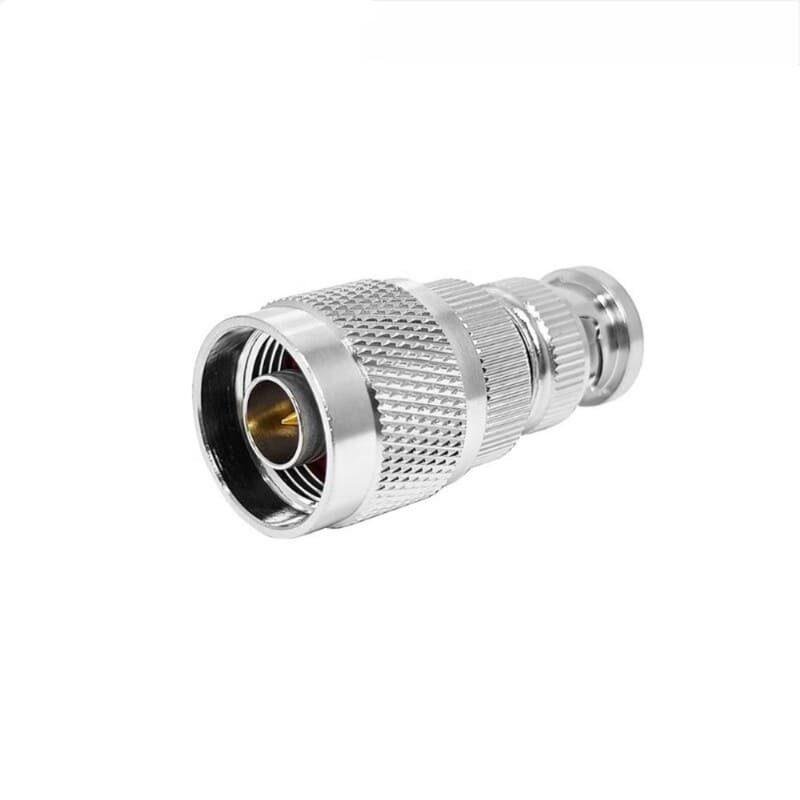

The BNC Male to N Male Adapter is a versatile “between-series” RF component designed to provide a reliable direct transition between two different coupling styles. It features a BNC Plug (Male) on one side, utilizing the classic bayonet-style quick-lock mechanism, and an N-Type Plug (Male) on the other side, featuring a rugged threaded coupling nut and center pin.

This adapter is essential for technicians and engineers who need to connect equipment featuring female ports of both types-such as joining a BNC-equipped signal generator directly to an N-Type-equipped power amplifier or antenna system. The precision-machined body ensures a constant 50 Ohm impedance, significantly reducing signal reflections and power loss. Constructed with a high-quality nickel-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 4 GHz. The rugged, double-male design is built to withstand frequent mating cycles in both demanding field operations and laboratory environments.

Key Technical Advantages

• Direct Series Conversion: Provides a seamless, low-loss transition between BNC and N-Type standards, eliminating the need for intermediate patch cables.

• Rapid Bayonet Mating: The BNC male side allows for instantaneous connection and disconnection with a simple quarter-turn, ideal for rapid bench testing.

• High-Strength Threaded Coupling: The N-Type male side features a heavy-duty hexagonal nut for secure, vibration-proof mating with equipment jacks.

• Superior RF Shielding: The solid brass construction ensures a continuous ground path, providing excellent protection against EMI and RFI interference.

• Maximum Conductivity: High-purity plating on the center contact pins ensures low contact resistance and superior corrosion resistance over time.

Key Features

• Double-Male Configuration: Features a BNC Plug (with pin) and an N-Type Plug (with pin) for joining two female jacks or ports.

• Bayonet & Threaded Hybrid: Combines the quick-connect versatility of BNC with the high-power, high-strength threading of the N-Type standard.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Weather-Resistant Design: Built to handle the physical demands of professional RF racks and outdoor field testing kits.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in laboratory and industrial applications.

🔹 Applications:

• RF Signal Interface between BNC and N Type Connectors
• Antenna & RF Cable Adaptation
• Wireless Communication Systems
• RF Test & Measurement Equipment
• CCTV & Video Signal Systems
• Telecom & Networking Equipment
• RF Coaxial Cable Assemblies
• Laboratory & Field Testing Applications
