Description

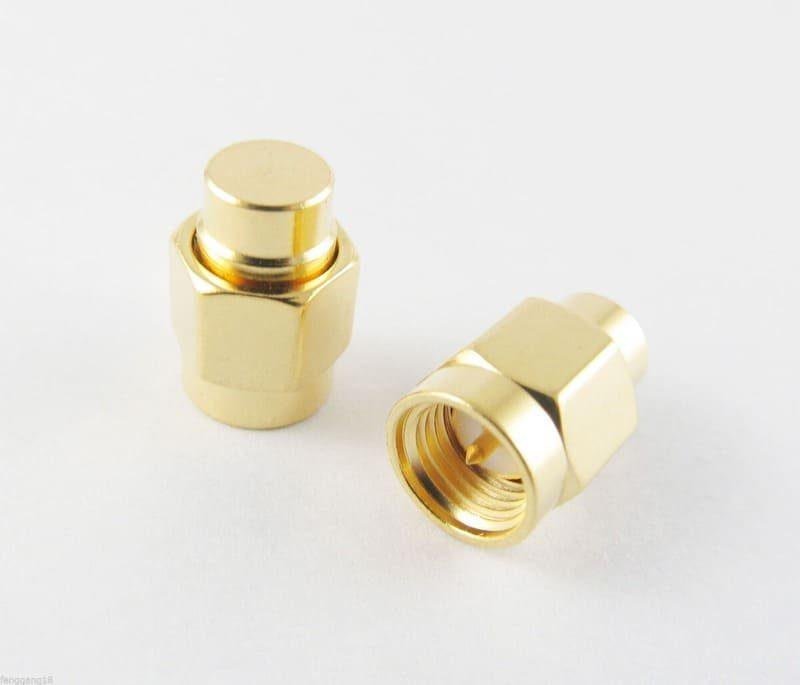

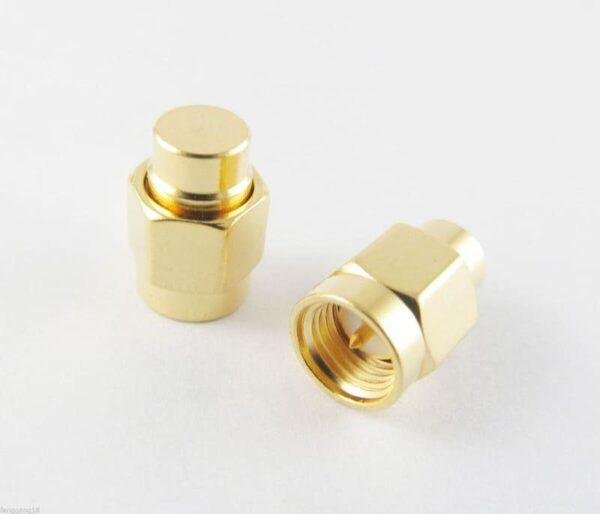

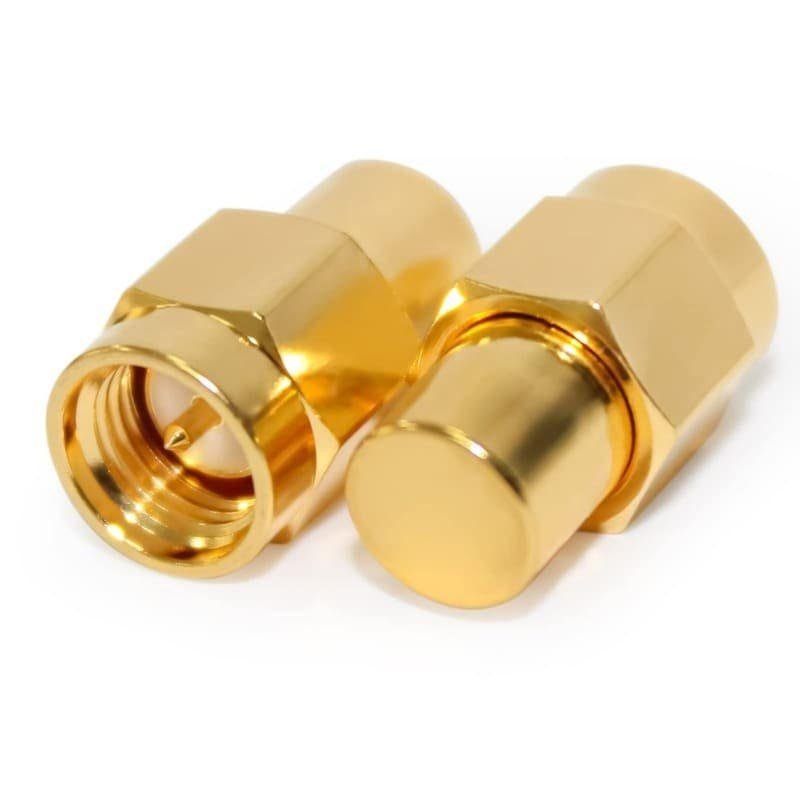

The 0.5W SMA dummy load is engineered to provide a laboratory-grade 50 Ohm termination for diagnostic and field applications. It utilizes a high-quality internal resistive element and PTFE (Teflon) dielectric to maintain electrical stability even under continuous use. The gold-plated center pin and durable outer housing are rated for hundreds of mating cycles, ensuring repeatable performance.
By terminating unused ports on power splitters, directional couplers, or amplifiers, this device prevents signal “ghosting” and standing wave issues. Its small form factor allows for integration into high-density microwave assemblies or portable test kits where space and thermal management are considerations.
Key Technical Advantages
-
Superior Reflection Control: Maintains a low VSWR, ensuring that reflected power does not return to the source and cause gain compression or damage.
-
Broadband Stability: While optimized for 3 GHz, the precision construction often allows for flat performance across the entire DC to 3 GHz spectrum.
-
High Mating Durability: Features a robust SMA interface designed for minimal wear and consistent contact resistance over long-term use.
-
Effective Thermal Dissipation: The housing is designed to safely manage the heat generated by 0.5 Watts of continuous RF power.
-
Compact Integration: The lightweight, knurled design allows for easy hand-tightening in tight spaces behind equipment panels or on crowded PCB assemblies.
Key Features
-
Impedance: 50 Ohm (±1 Ohm).
-
Power Rating: 0.5 Watts (Continuous).
-
Frequency Range: DC to 3 GHz.
-
Connector Type: SMA Male (Plug).
-
Body Material: Gold-Plated Brass or Stainless Steel.
-
Applications: RF Testing, Port Termination, and Antenna Simulation.
🔹 Applications:
- RF signal termination in low-power circuits
- SMA-based RF test and measurement setups
- Lab testing and calibration equipment
- Impedance matching in RF modules
- Signal stabilization in communication devices
- Wireless prototyping and PCB testing
