Description

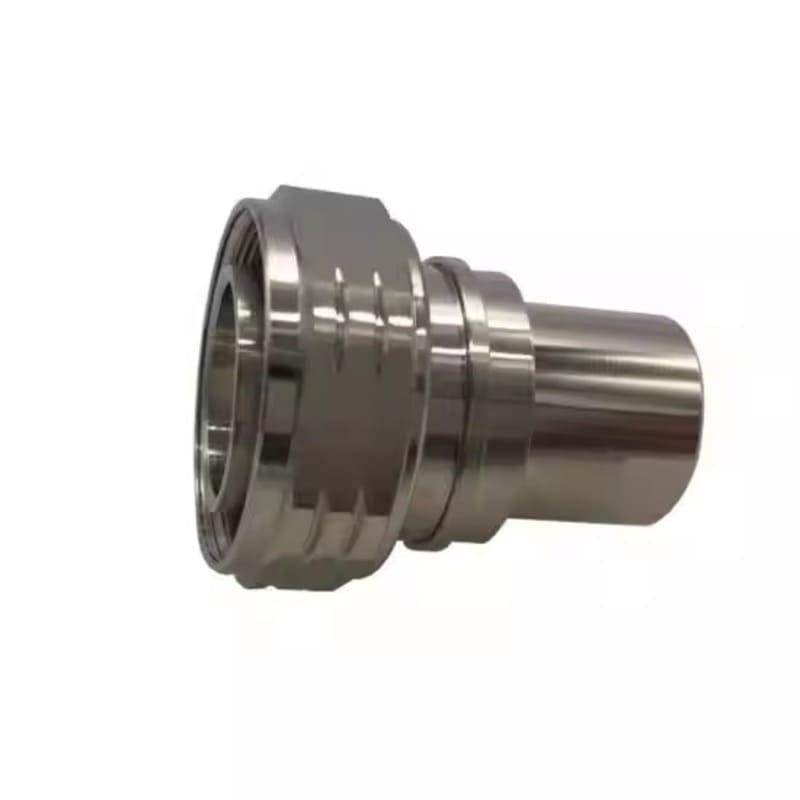

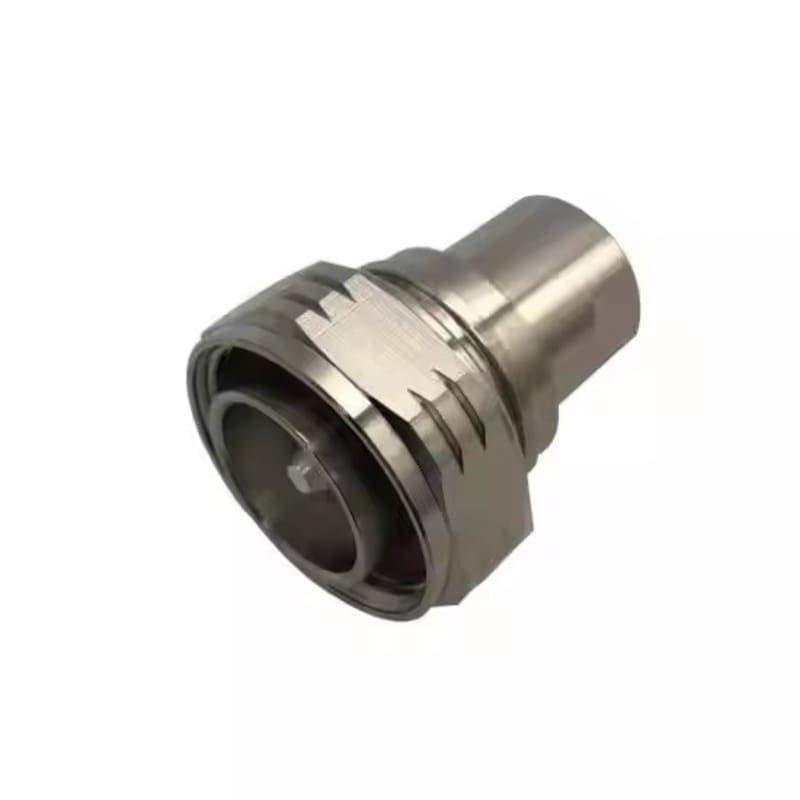

The 2W 7/16 DIN dummy load is built to withstand the mechanical stresses of outdoor cell tower environments while maintaining laboratory-grade electrical precision. It utilizes a high-performance resistive element and PTFE (Teflon) dielectric to ensure consistency across the DC to 3 GHz spectrum. The robust threaded coupling ensures a high-pressure contact area, which is essential for minimizing Passive Intermodulation (PIM) and maintaining signal integrity in multi-carrier systems.
This terminator is a critical tool for isolating ports on high-power filters, combiners, and base transceiver stations (BTS). The 2-Watt rating provides a stable safety margin for signal-level diagnostics, ensuring the device can handle continuous operation without thermal drift. Its heavy-duty construction is designed for longevity, supporting high-torque installations and resisting environmental corrosion.
Key Technical Advantages
-
Superior Mechanical Stability: The large 7/16 DIN interface offers extreme durability and resistance to vibration compared to smaller connector types.
-
Excellent PIM Performance: Engineered with high-quality materials to ensure low Passive Intermodulation, preventing interference in sensitive cellular networks.
-
Precision Reflection Control: Maintains a very low VSWR, shielding expensive high-power amplifiers from reflected energy and standing waves.
-
Weather-Resistant Design: Often features robust plating and O-ring seals, making it suitable for both protected indoor racks and exposed outdoor environments.
-
Broadband Optimization: Tuned for the 3 GHz range, covering essential 5G, LTE, and public safety frequency bands.
Key Features
-
Impedance: 50 Ohm (±1 Ohm).
-
Power Rating: 2 Watts (Continuous).
-
Frequency Range: DC to 3 GHz.
-
Connector Type: 7/16 DIN Male.
-
Plating: Tri-alloy (White Bronze) or Silver.
-
Applications: Base Station Infrastructure, High-Power RF Testing, and Macro Cell Deployment.
🔹 Applications:
- RF termination in telecom systems
- Base station testing and calibration
- Antenna load simulation
- RF signal balancing
- Wireless communication networks
- DAS systems
