20dB 100W RF Fixed Attenuator N M/F 3GHz

Description

The 20dB 100W RF Fixed Attenuator is a high-capacity passive component designed to reduce the power of an RF signal by exactly 20dB, providing a precise 100:1 power reduction. With a robust 100-Watt power handling capacity, it is engineered to safely manage high-power outputs from transmitters and power amplifiers, stepping them down to safe levels for direct input into spectrum analyzers, power meters, and receivers. This model is optimized for frequencies from DC to 3GHz, making it a vital tool for 4G/LTE, VHF/UHF broadcast, and industrial RF applications.

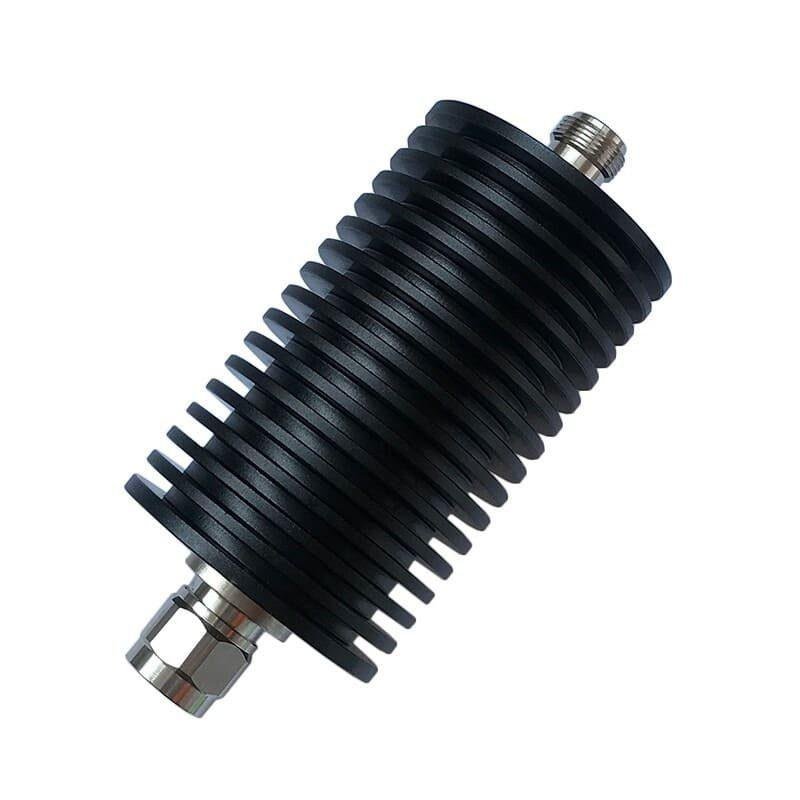

The attenuator features a rugged N-Type Male to N-Type Female inline configuration with a high-reliability threaded coupling. To effectively manage the significant heat generated by 100W of power, the device is housed in a large-format anodized aluminum heat-sink body with longitudinal cooling fins. This design ensures maximum thermal dissipation and prevents attenuation drift during high-duty-cycle operations. Manufactured with premium PTFE dielectric and high-stability resistive film, it maintains exceptional frequency flatness and low VSWR throughout its service life.

Key Technical Advantages

• High-Power 100W Capacity: Specifically designed for high-energy RF environments where standard laboratory attenuators would suffer immediate thermal failure.

• Precise 20dB Power Reduction: Delivers an accurate 100-fold reduction in signal strength, allowing high-wattage transmission lines to be monitored by sensitive equipment without risk of damage.

• Superior Thermal Management: The oversized heat-sink housing is optimized for natural convection, ensuring the internal resistive elements remain within safe operating temperatures.

• Excellent Impedance Stability: Precision-engineered internals provide a low VSWR across the entire 3GHz band, protecting expensive signal sources from harmful reflections.

• Industrial-Grade N-Type Interface: Features ruggedized connectors designed for a secure, vibration-resistant connection in both field maintenance and high-power laboratory setups.

Key Features

• Interface Type: N-Type Male (Plug) to N-Type Female (Jack).

• Attenuation Value: 20dB (Fixed).

• Power Rating: 100 Watts (Continuous Average).

• Frequency Range: DC – 3.0 GHz.

• Impedance: 50 Ohm (Standard).

• Construction: Black Anodized Aluminum heat-sink with Nickel-Plated Brass connectors.

• Common Application: High-power transmitter testing, signal sampling from high-gain amplifiers, base station maintenance, and RF power measurement.

🔹 Applications:

• High-power RF signal attenuation
• Telecom infrastructure
• Antenna load testing
• RF signal protection
• Industrial RF systems
• Broadcast communication
