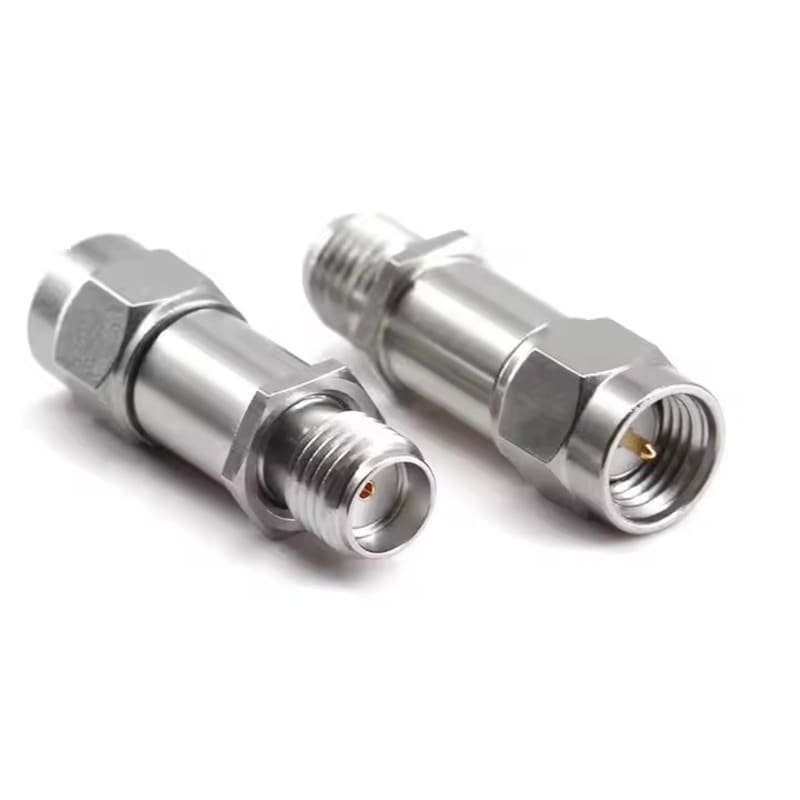

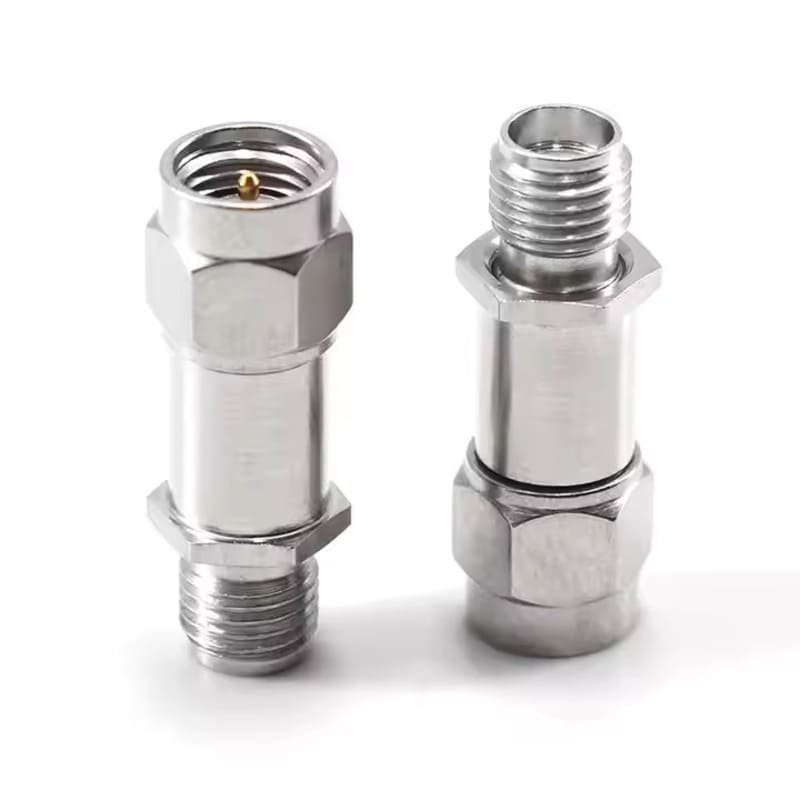

30dB 2W RF Fixed Attenuator SMA M/F 18GHz

Description

The 30dB 2W RF Fixed Attenuator is a high-performance microwave component designed to reduce the power of an RF signal by exactly 30dB, providing a precise 1000:1 power reduction. With a 2-Watt power handling capacity, it is optimized for low-to-medium power signal conditioning in precision environments where high isolation is required. This model is engineered for an ultra-wide frequency spectrum from DC to 18GHz, making it an essential tool for Ku-band satellite links, radar systems, and advanced laboratory testing of high-speed wireless technologies.

The attenuator features an SMA Male to SMA Female inline configuration, utilizing high-quality connectors designed to maintain electrical stability at microwave frequencies. It is constructed with thin-film resistive elements that provide exceptional frequency flatness and a low Voltage Standing Wave Ratio (VSWR) even at the upper limits of its 18GHz range. Housed in a ruggedized stainless steel or passivated brass body, it ensures superior durability and shielding, maintaining consistent attenuation accuracy across varying thermal and mechanical conditions.

Key Technical Advantages

• Ultra-Wide 18GHz Bandwidth: Provides a versatile solution for microwave applications, maintaining precision from DC through the Ku-band spectrum.

• Extreme 30dB Power Reduction: Delivers a reliable 1000-fold reduction in signal strength, allowing high-level signals to be safely monitored by sensitive analyzers.

• Superior Microwave Performance: Engineered with high-stability resistive materials to ensure minimal signal distortion and exceptional frequency flatness at 18GHz.

• Low VSWR and Return Loss: Precision-machined internals minimize signal reflections, protecting sensitive signal sources and ensuring measurement accuracy in high-frequency chains.

• Ruggedized Construction: Features high-grade SMA connectors with gold-plated center contacts for low contact resistance and maximum longevity in demanding test environments.

Key Features

• Interface Type: SMA Male (Plug) to SMA Female (Jack).

• Attenuation Value: 30dB (Fixed).

• Power Rating: 2 Watts (Continuous).

• Frequency Range: DC – 18.0 GHz.

• Impedance: 50 Ohm (Standard).

• Construction: Stainless Steel or Passivated Brass with PTFE dielectric.

• Common Application: Microwave laboratory testing, satellite communication systems, radar equipment, and protecting spectrum analyzer inputs.

🔹 Applications:

• High-frequency RF attenuation
• Microwave communication systems
• RF test and measurement
• Antenna signal control
• Lab and research setups
• Signal conditioning
